Raw screenshot gallery — 120 canonical Zeplin designs plus 11 current-state TBv3 screenshots. Grouped by area. Every item links to the full-resolution PNG. For design-system guidance (foundations, components, patterns) head back to Overview.

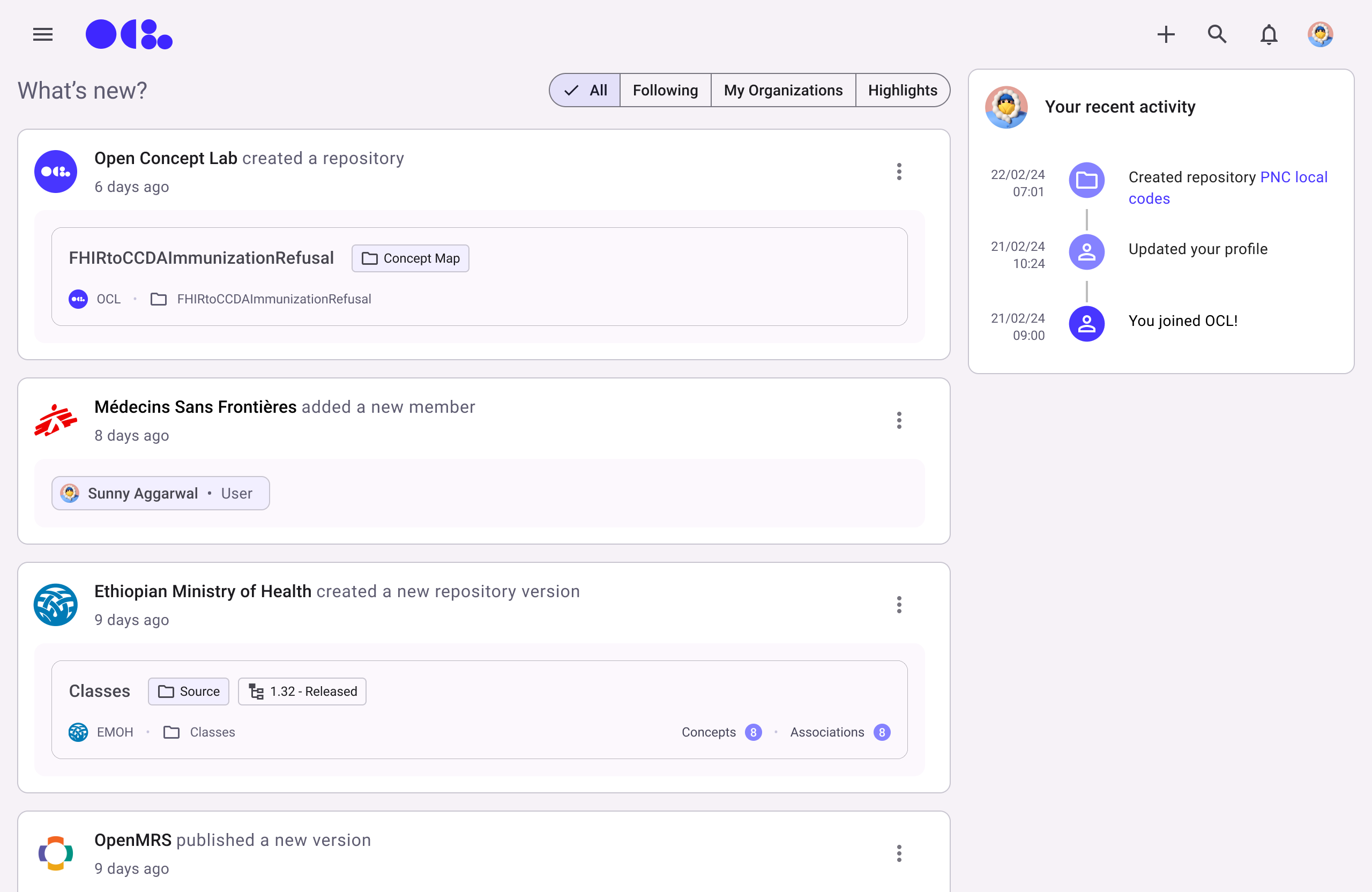

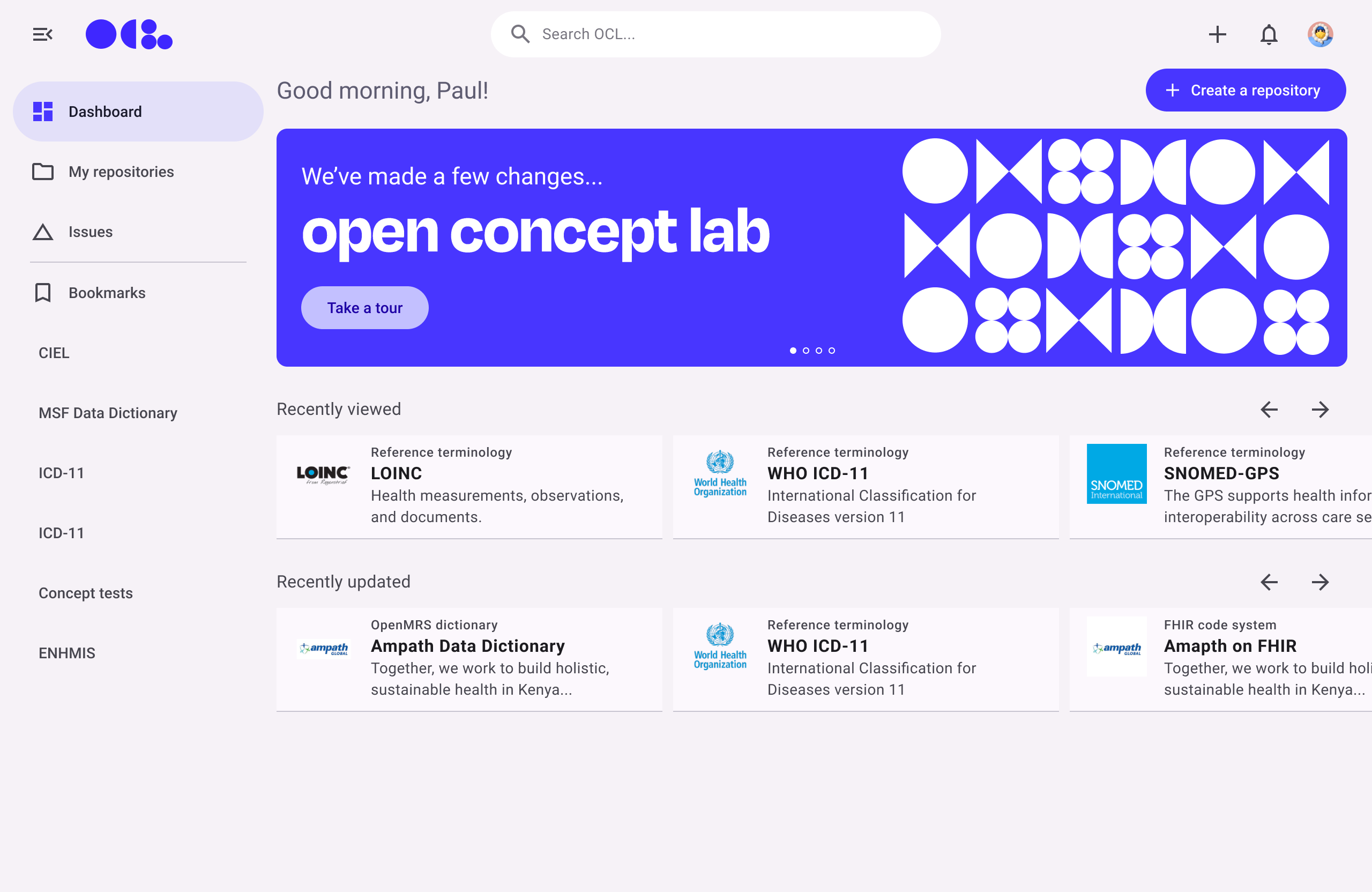

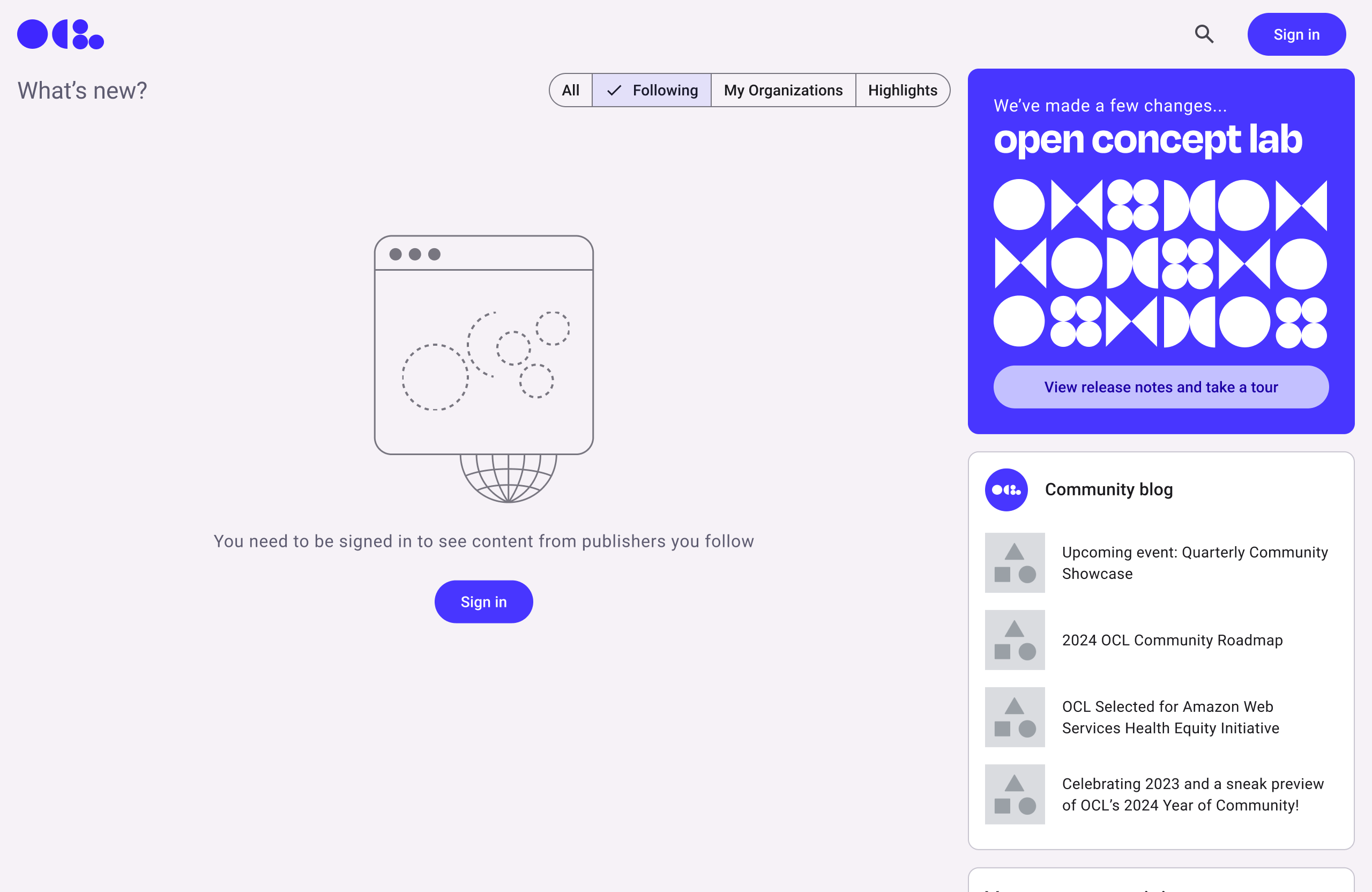

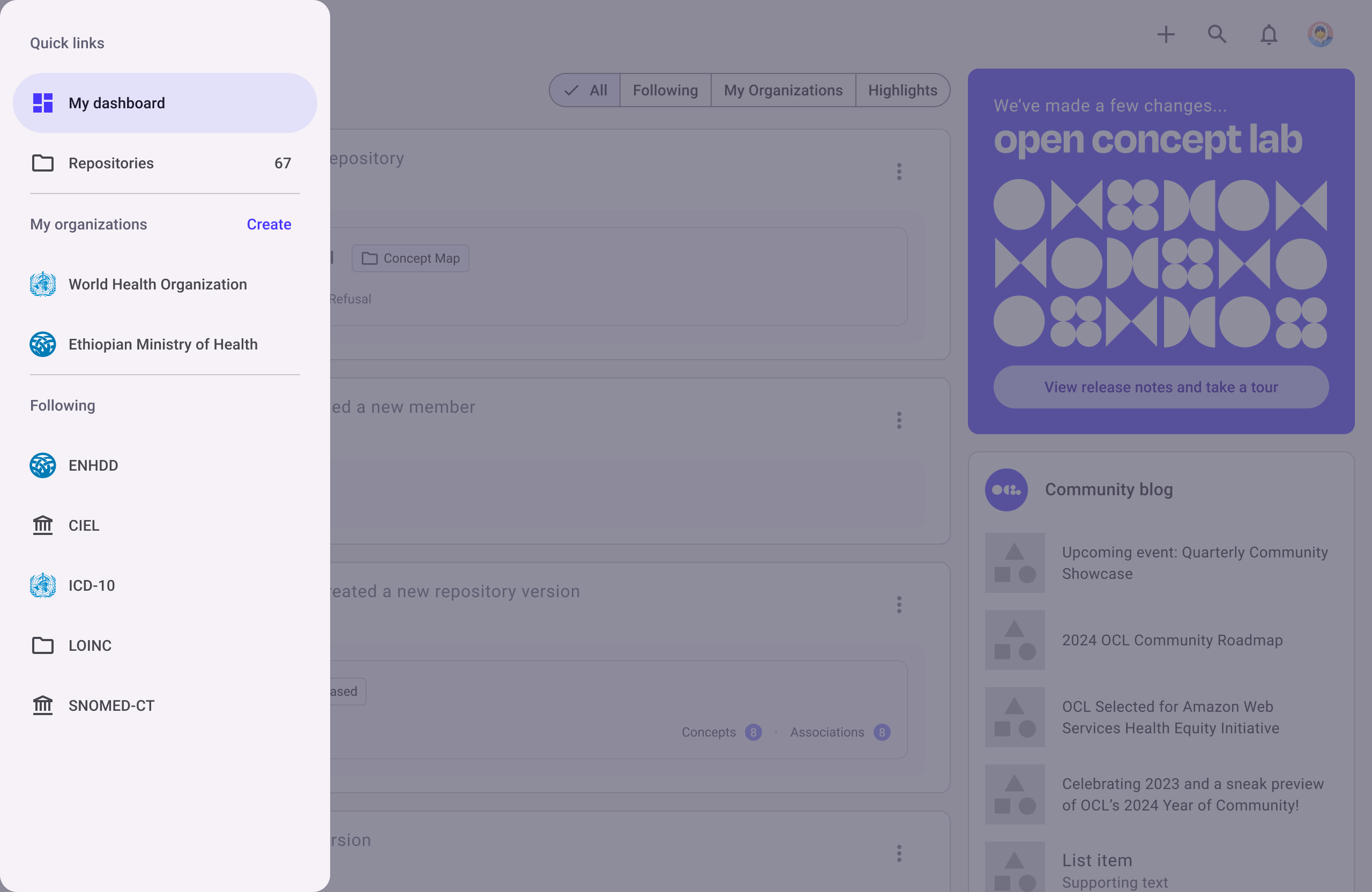

Dashboard

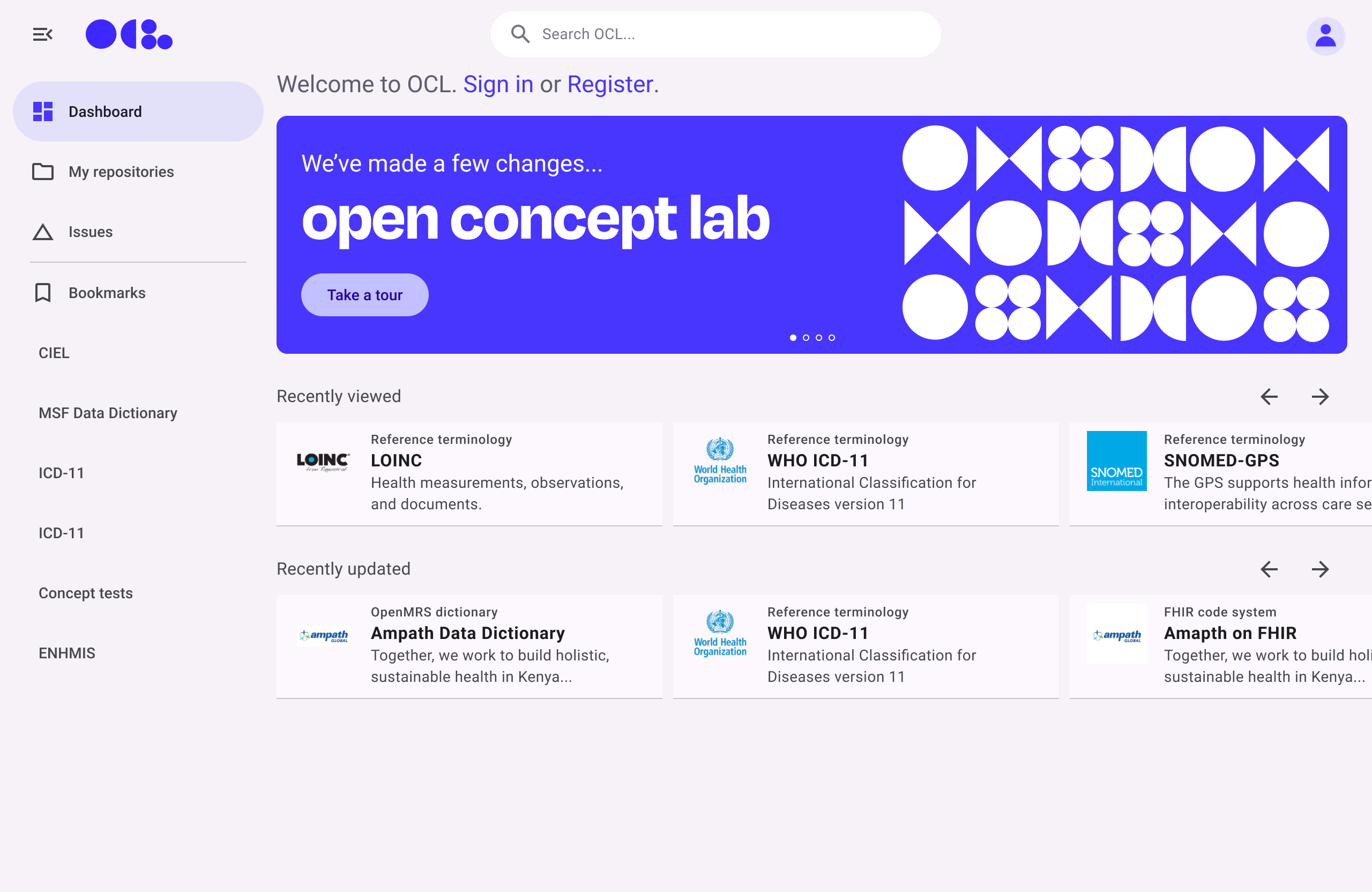

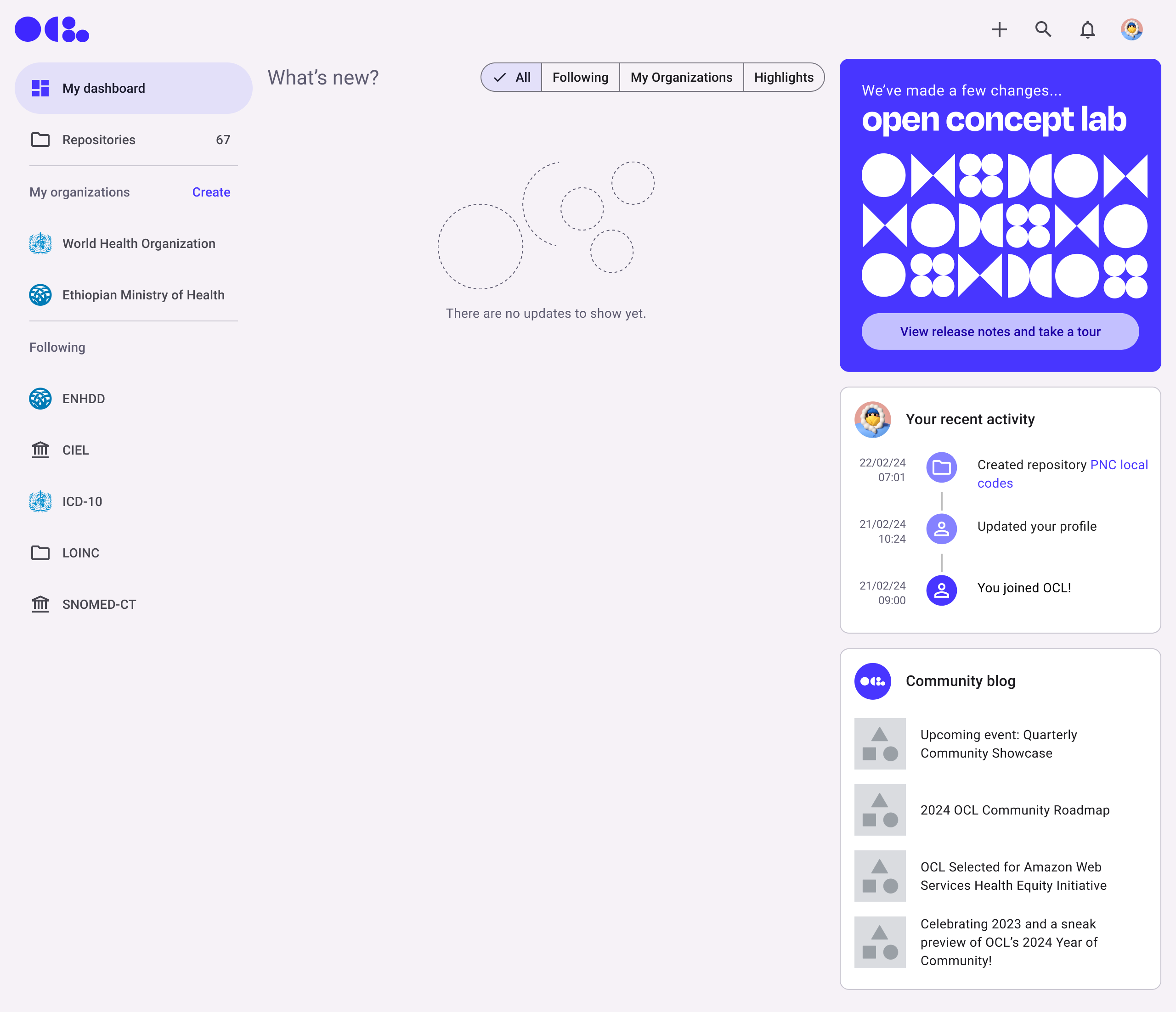

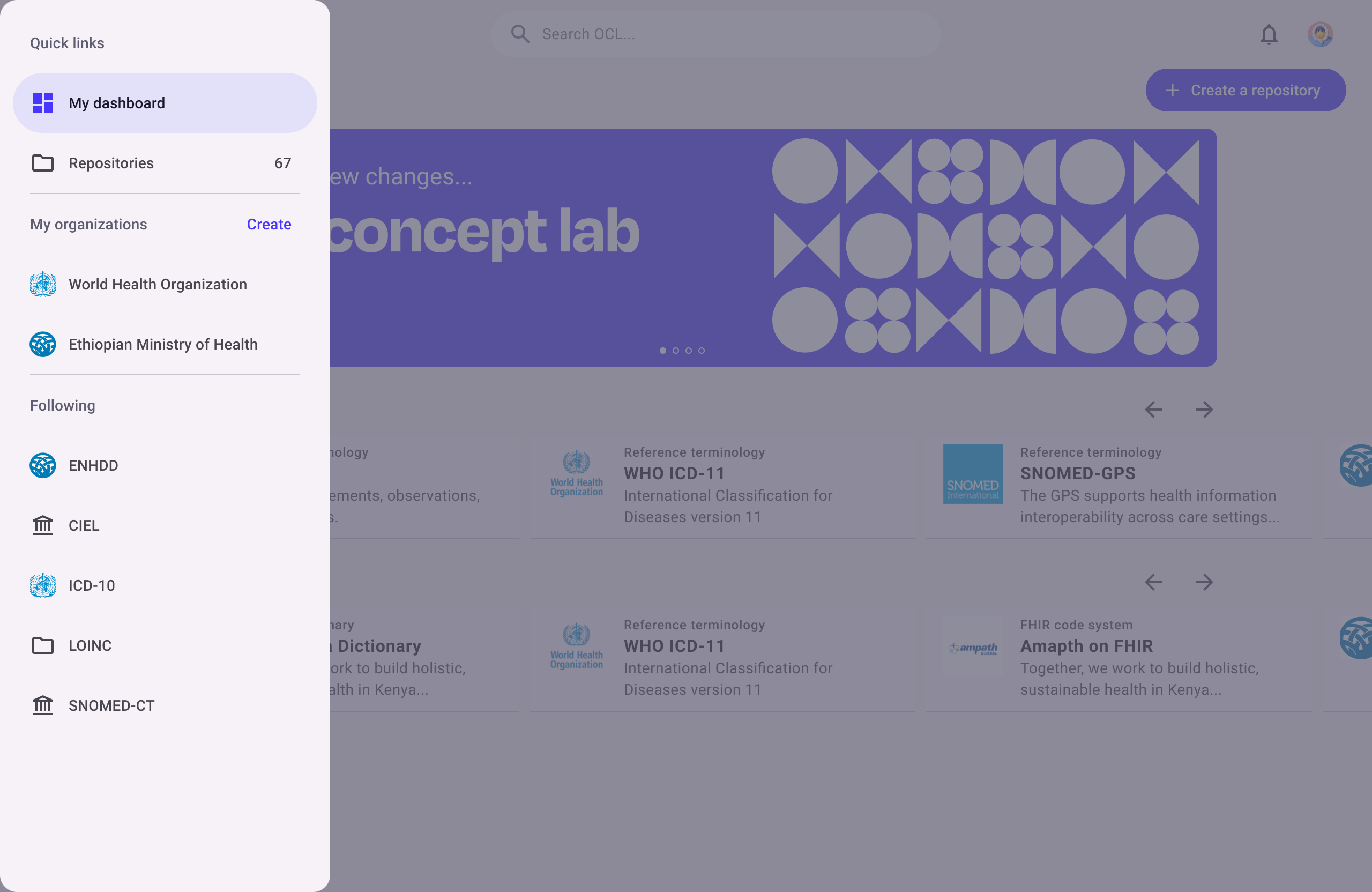

Signed-in and signed-out dashboards are not implemented. Feed card display has evolved; left-drawer empty state is still divergent.

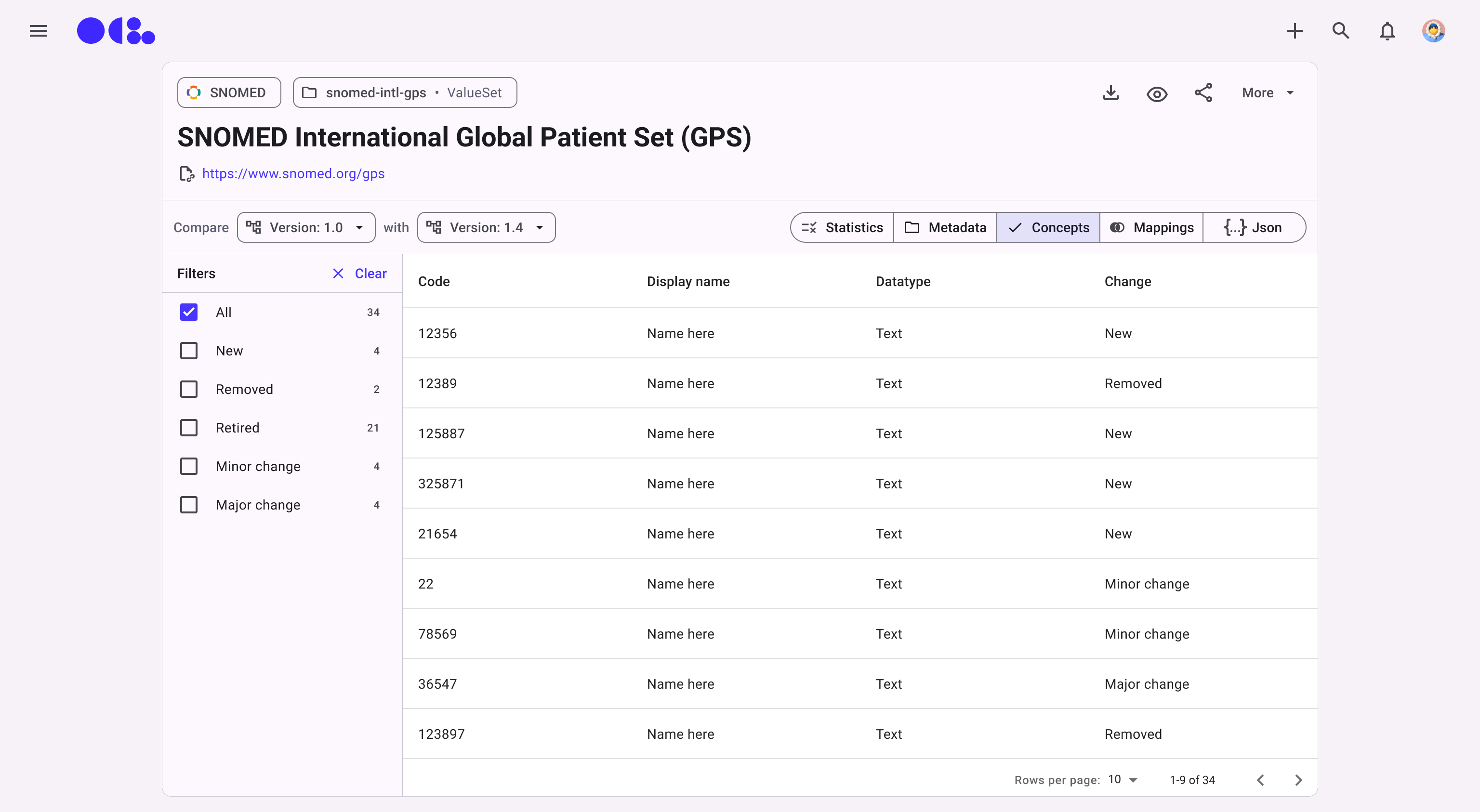

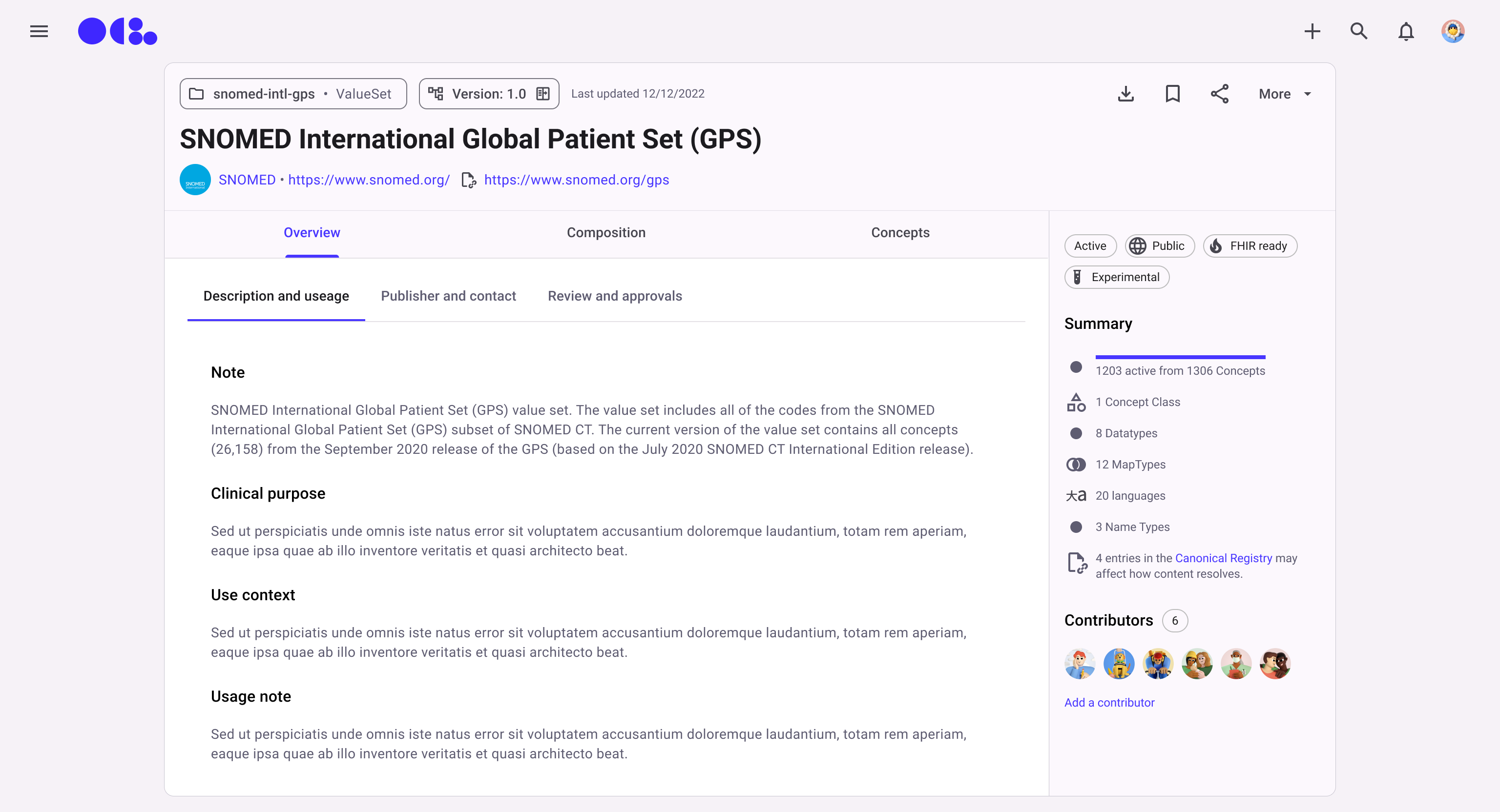

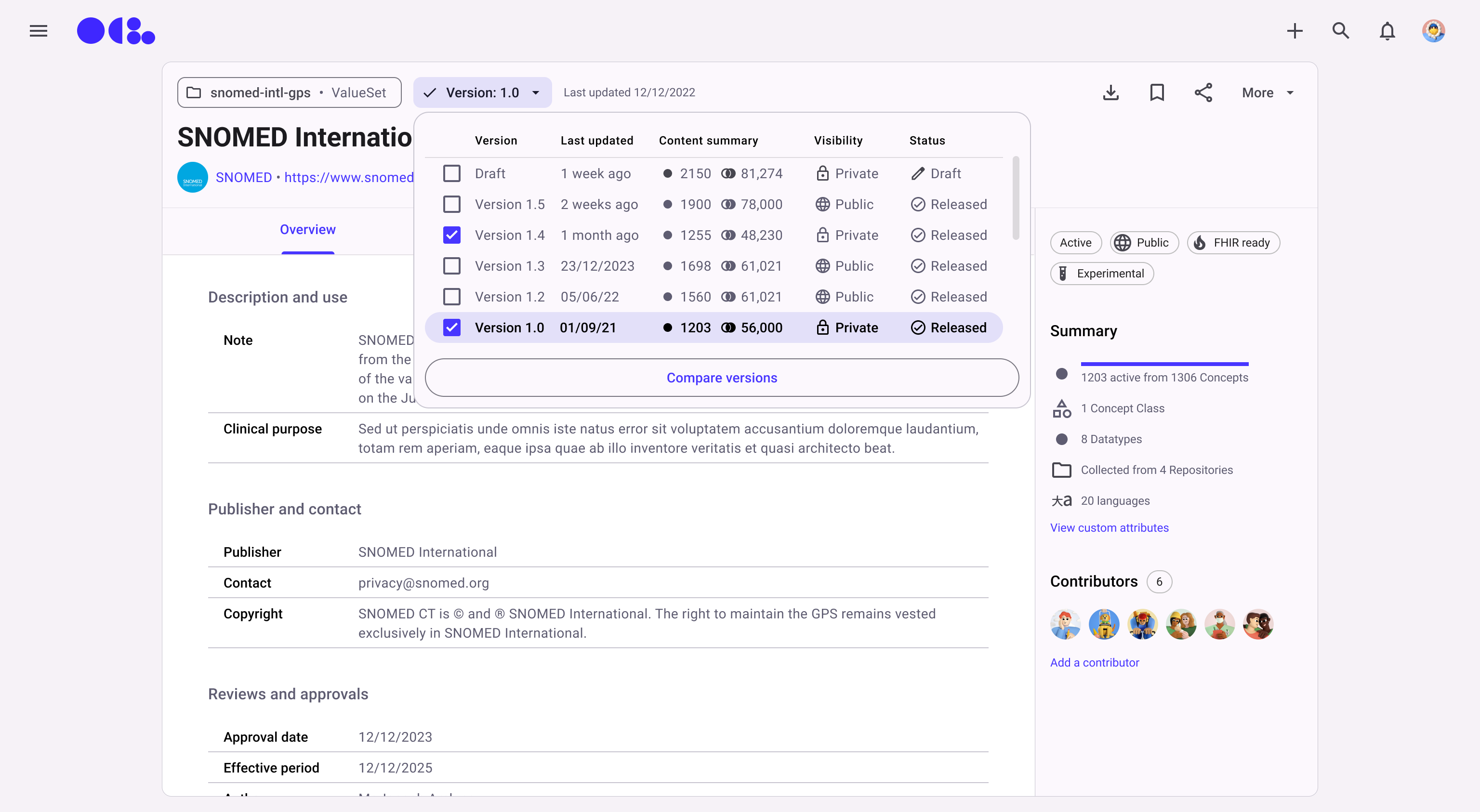

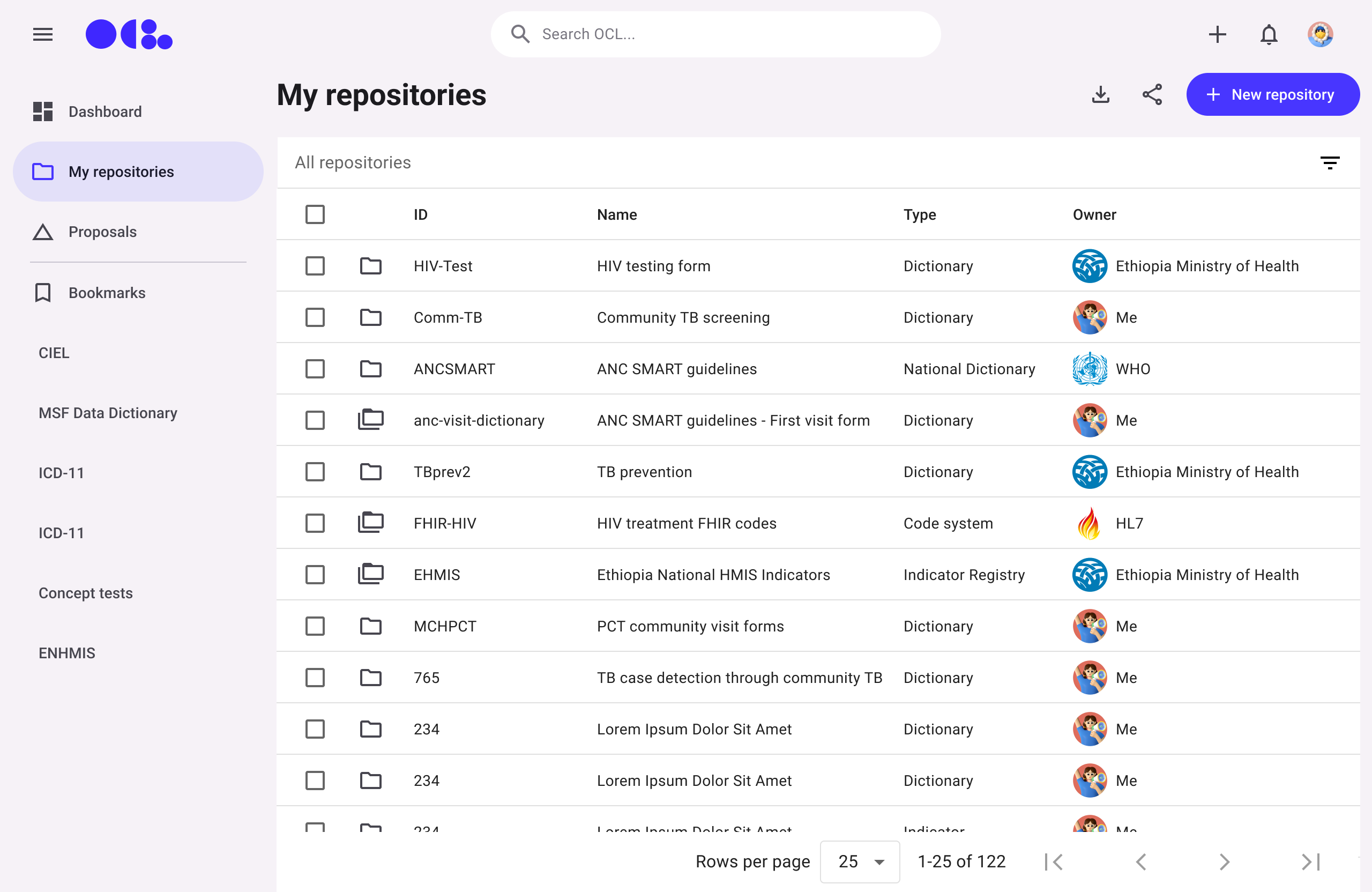

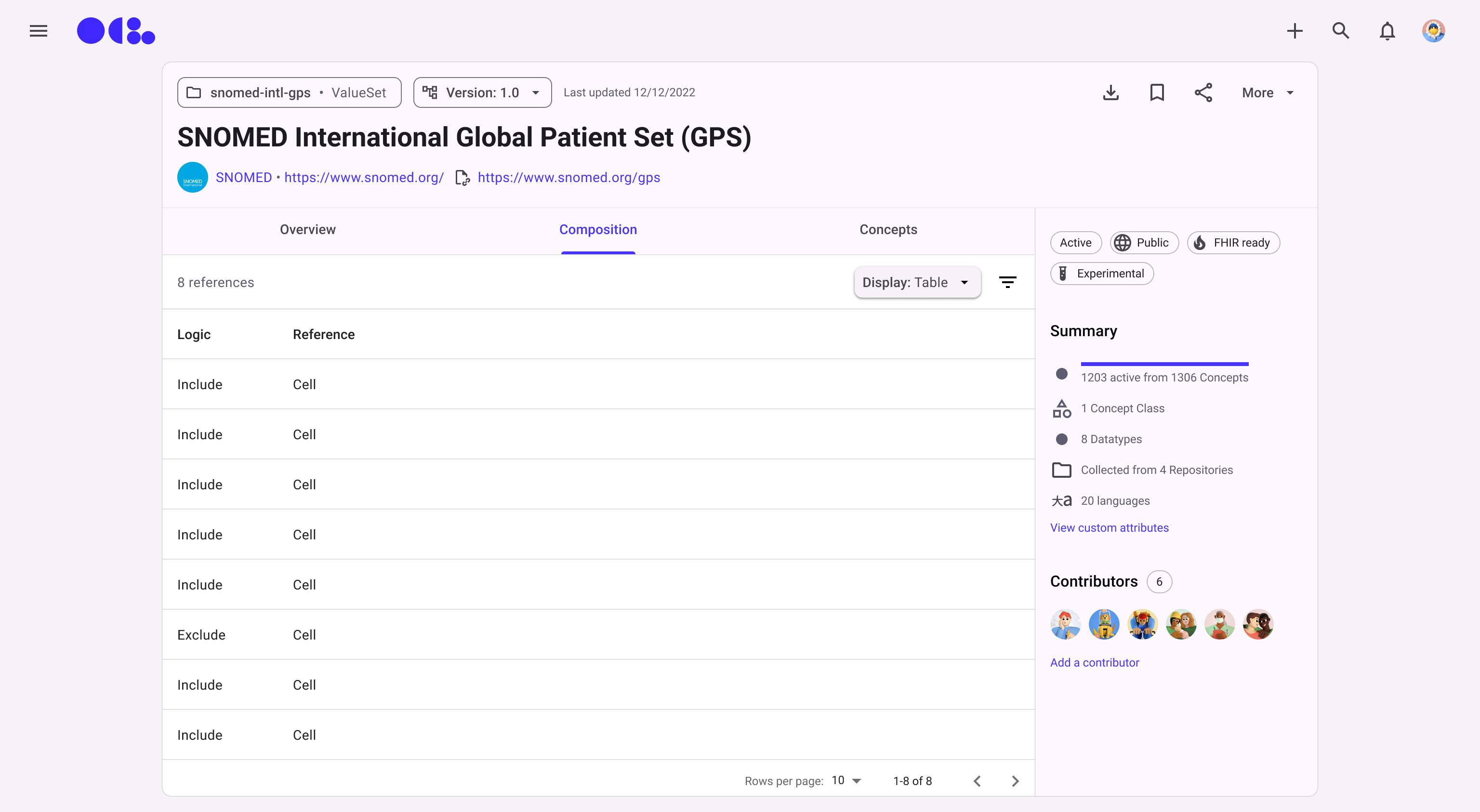

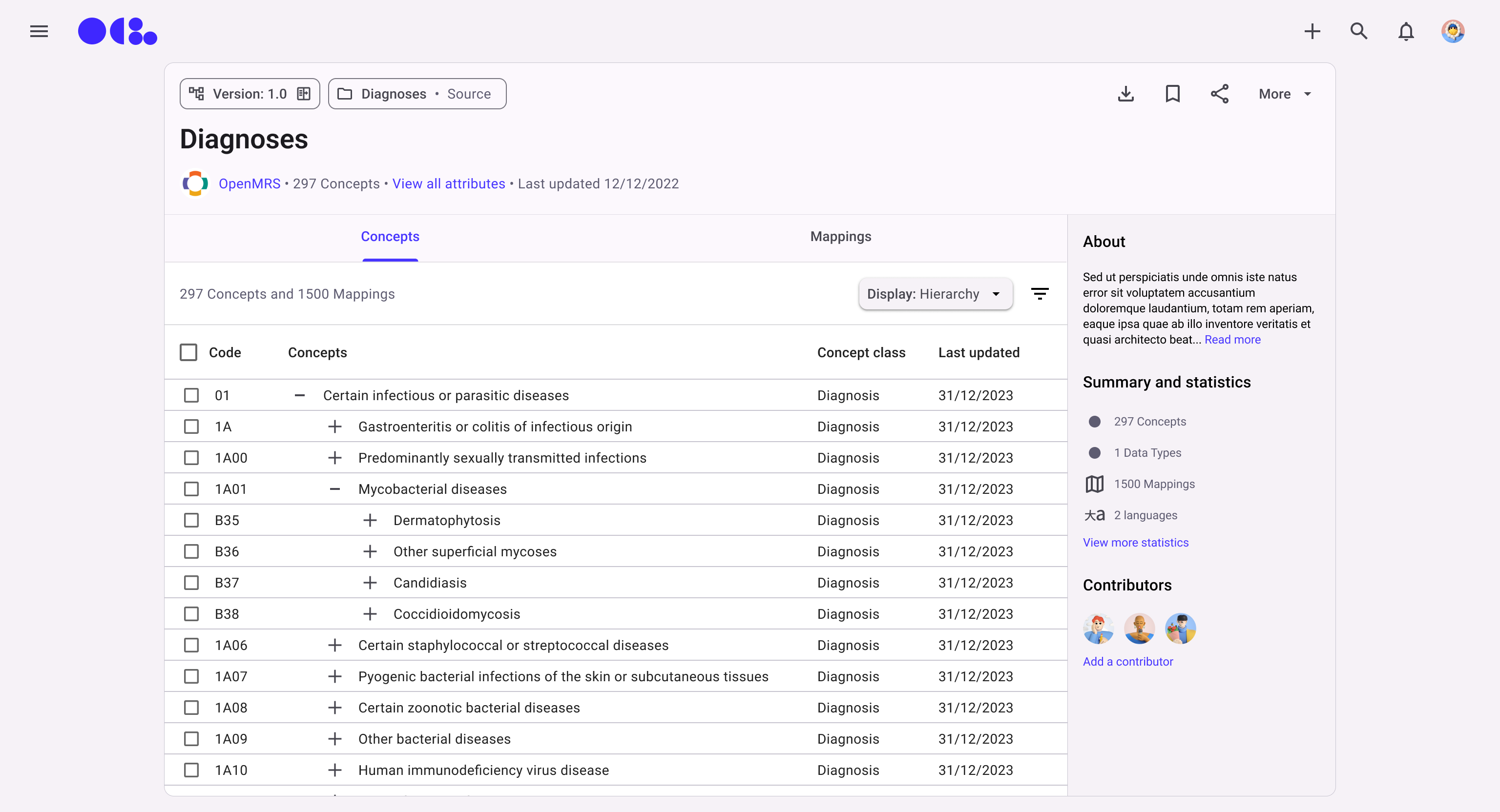

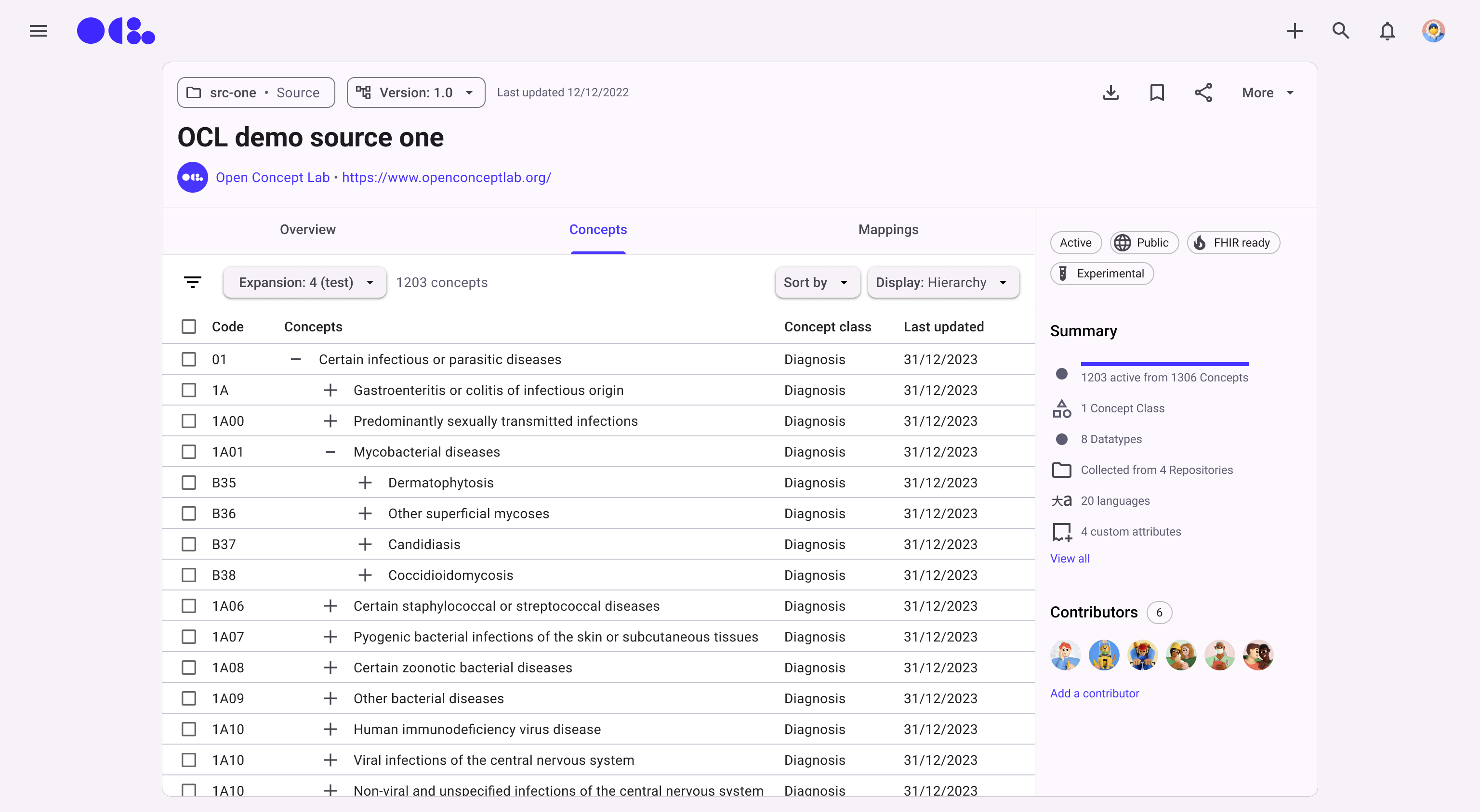

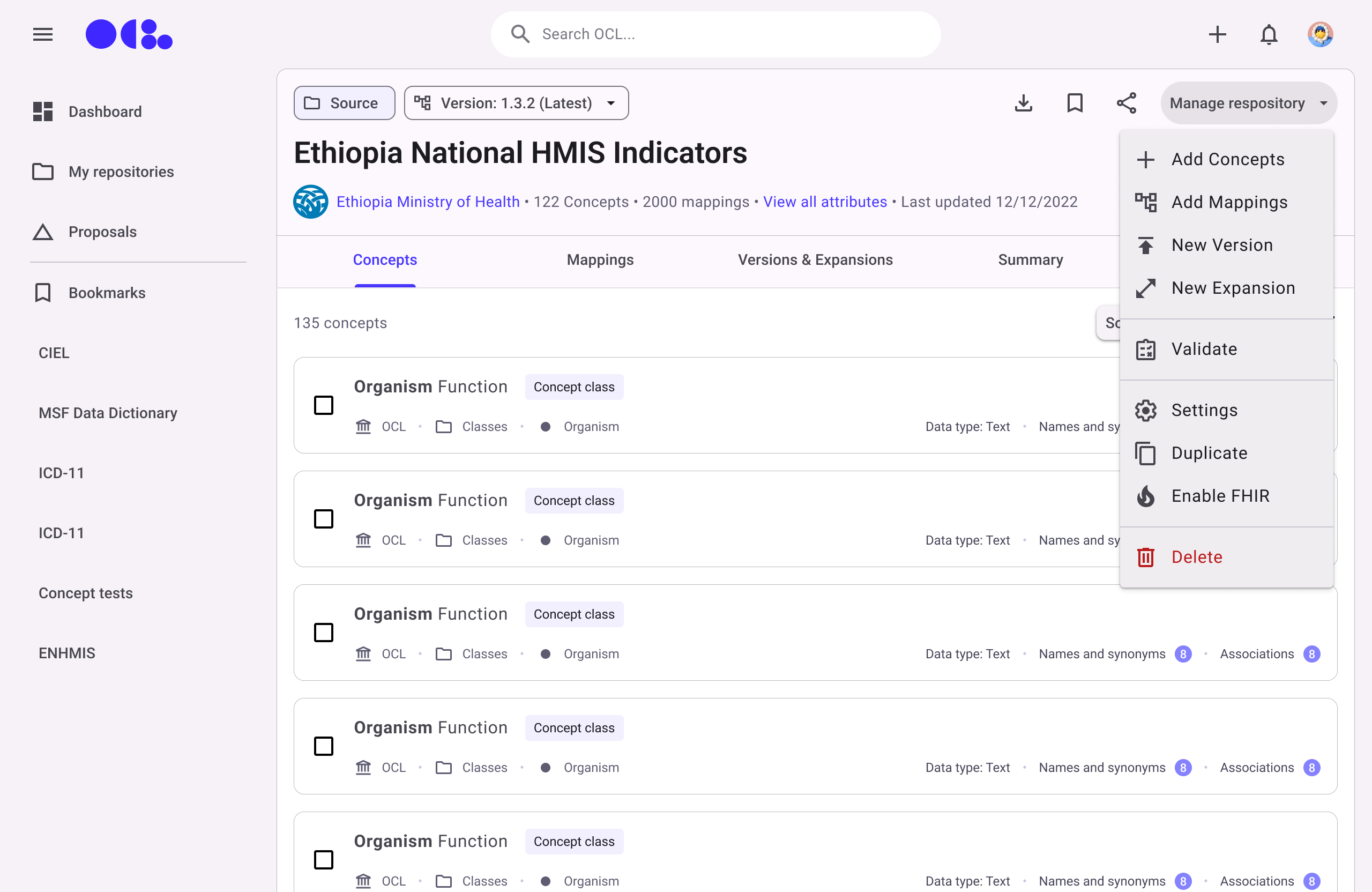

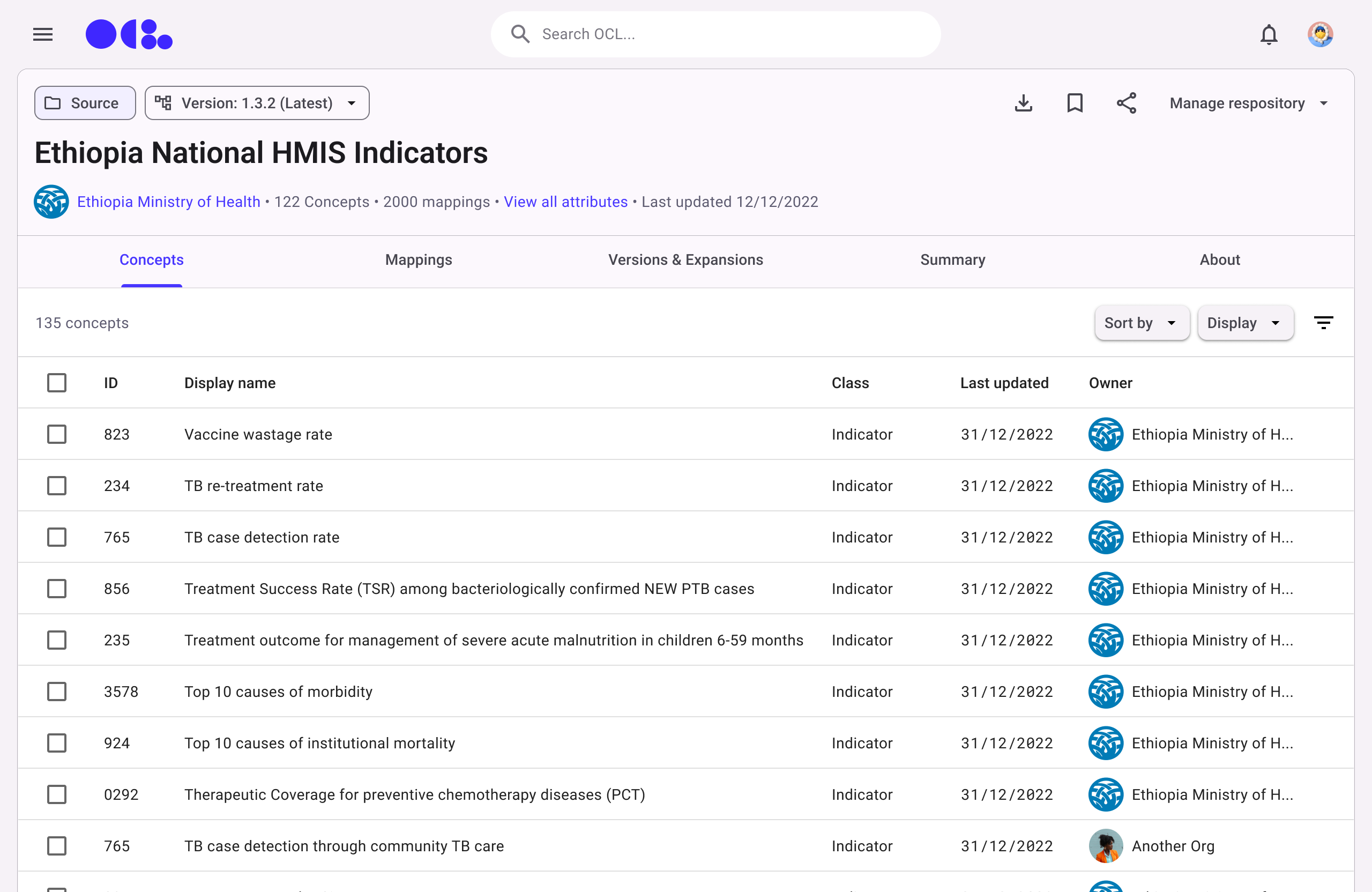

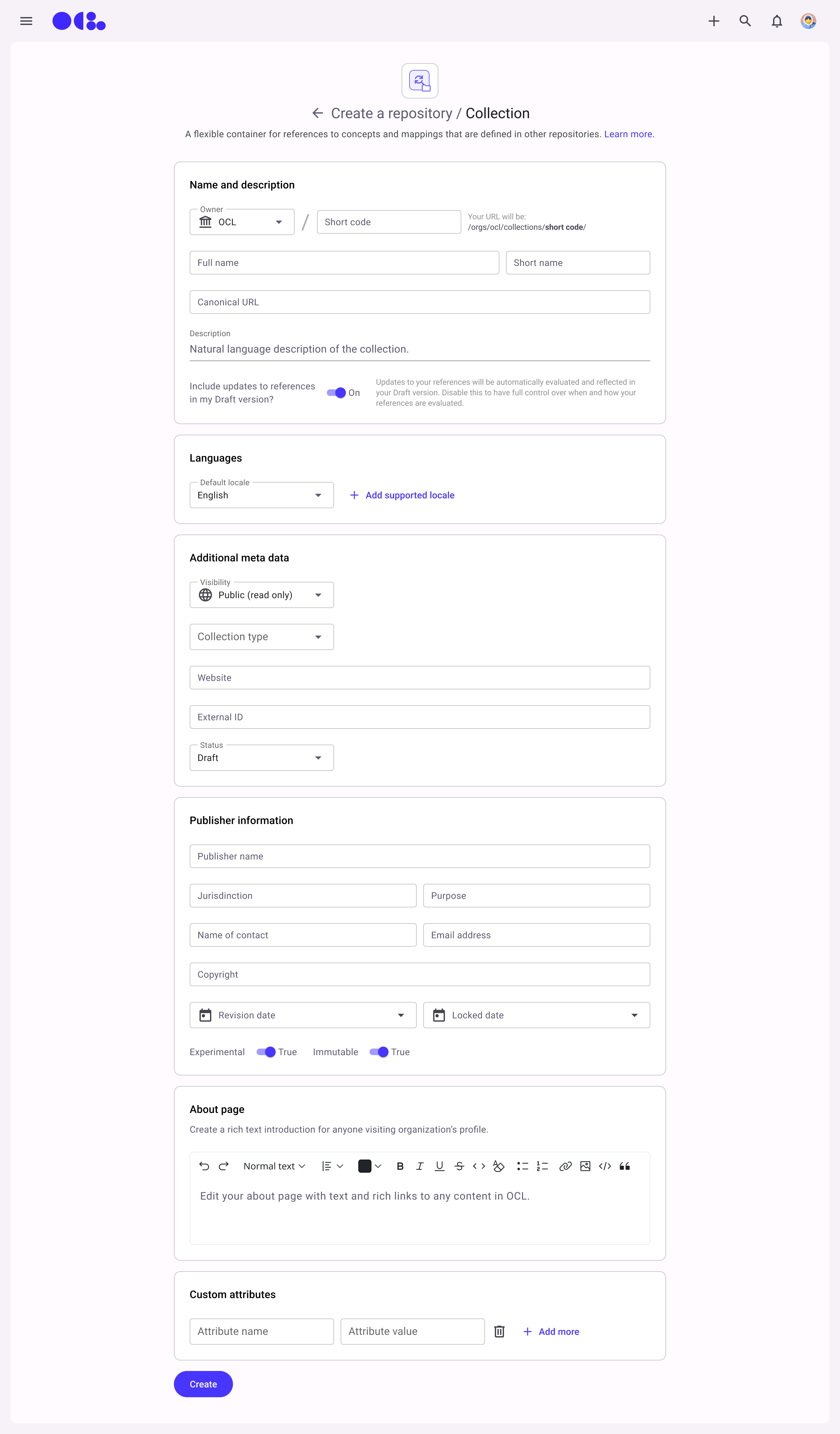

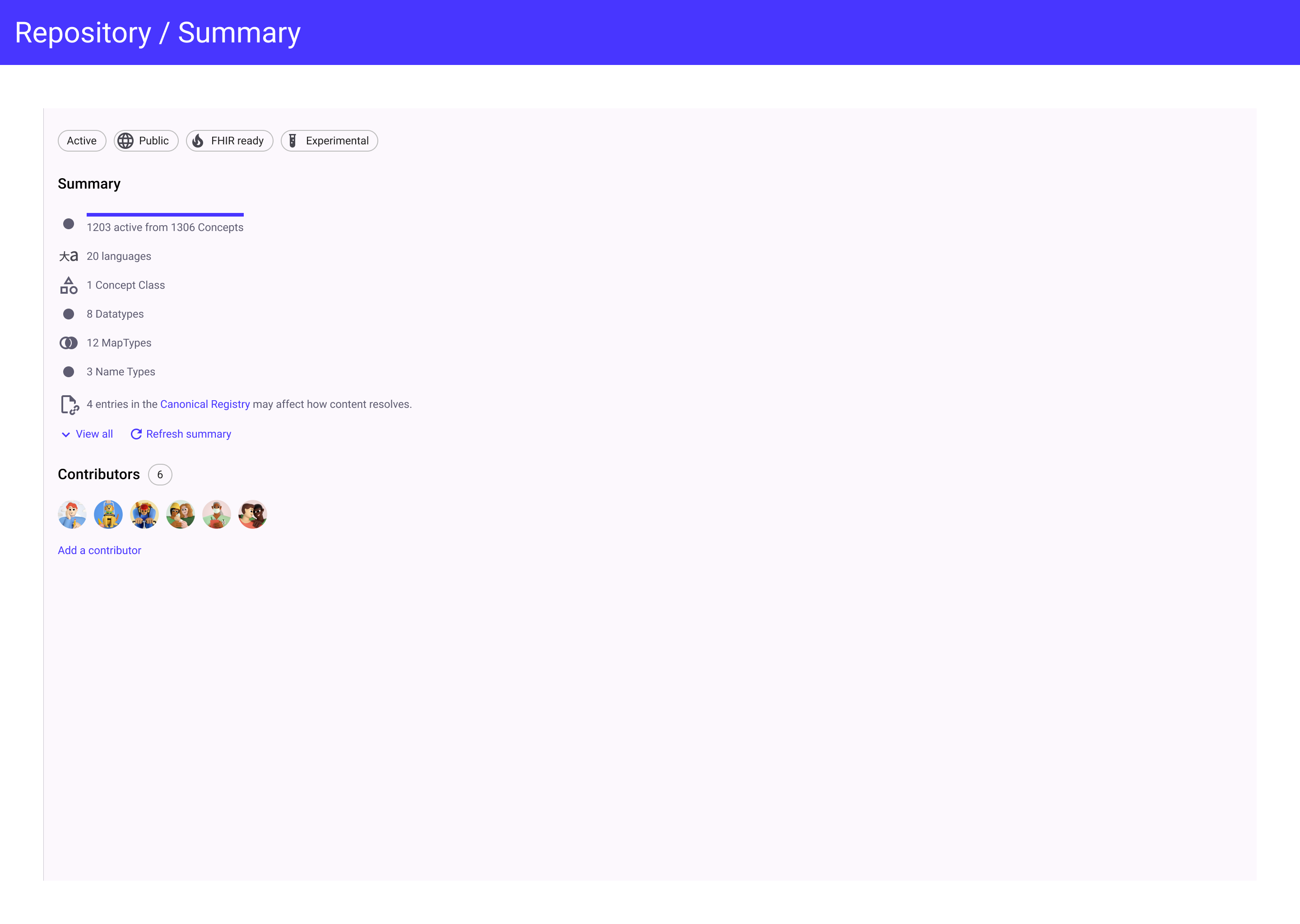

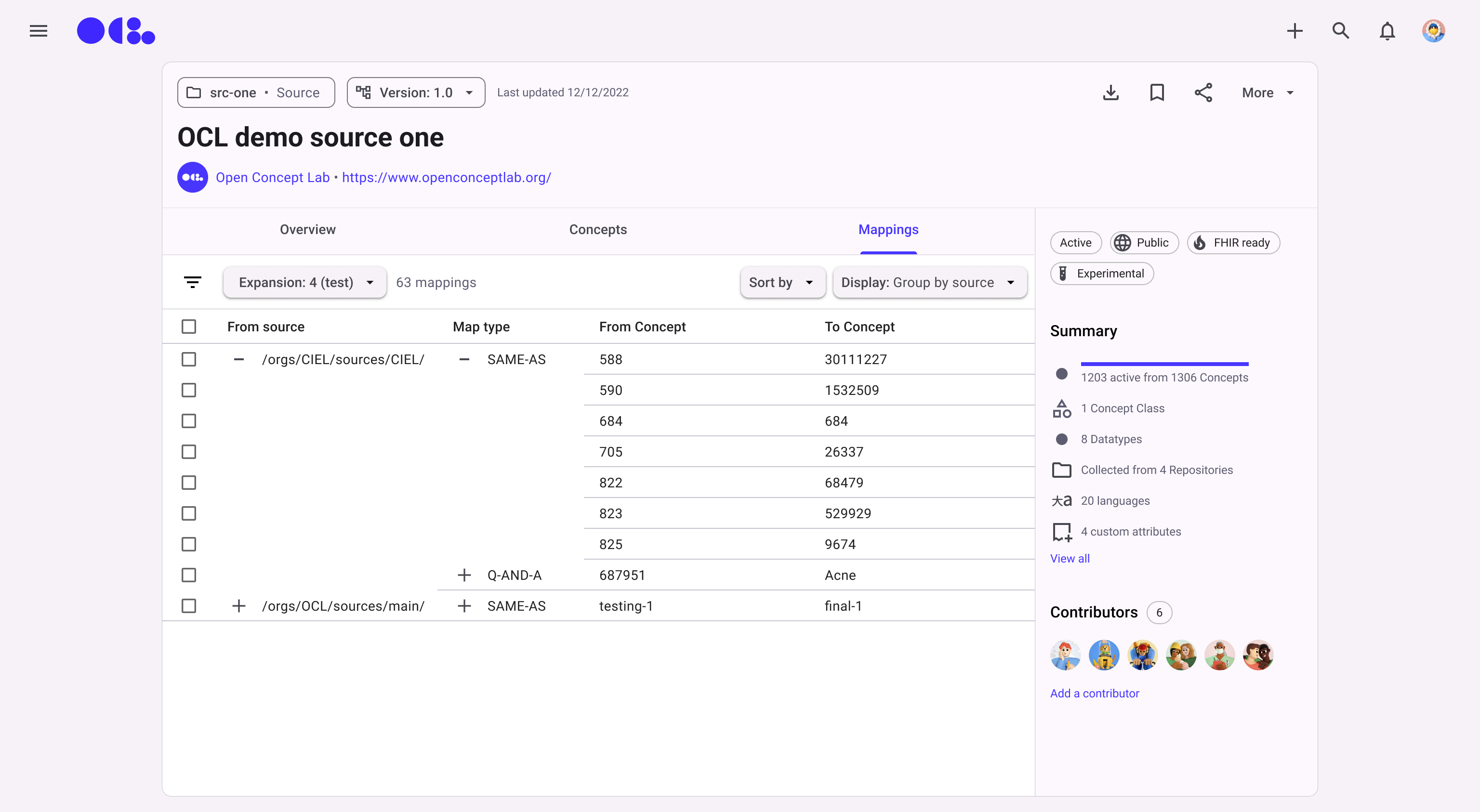

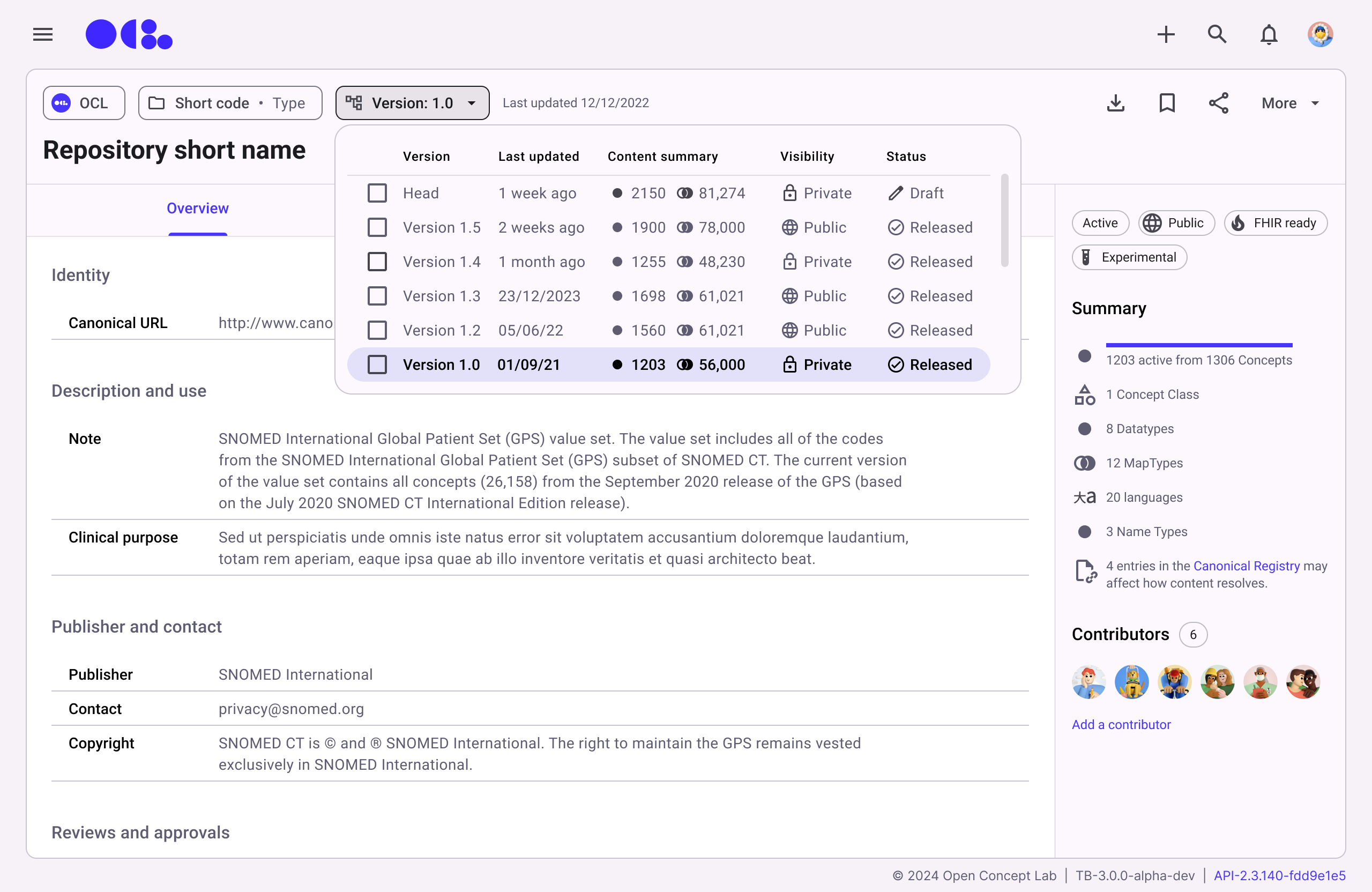

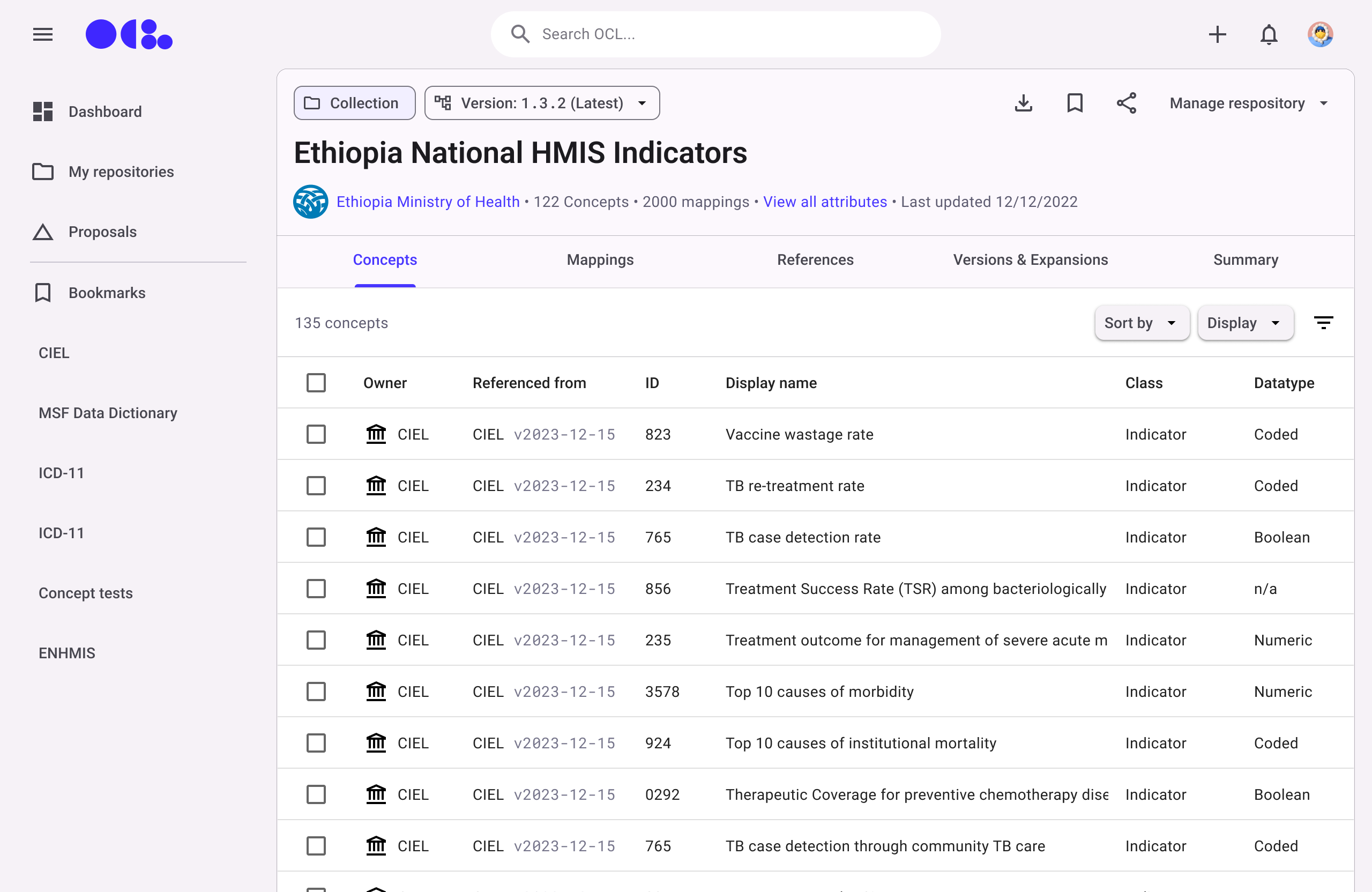

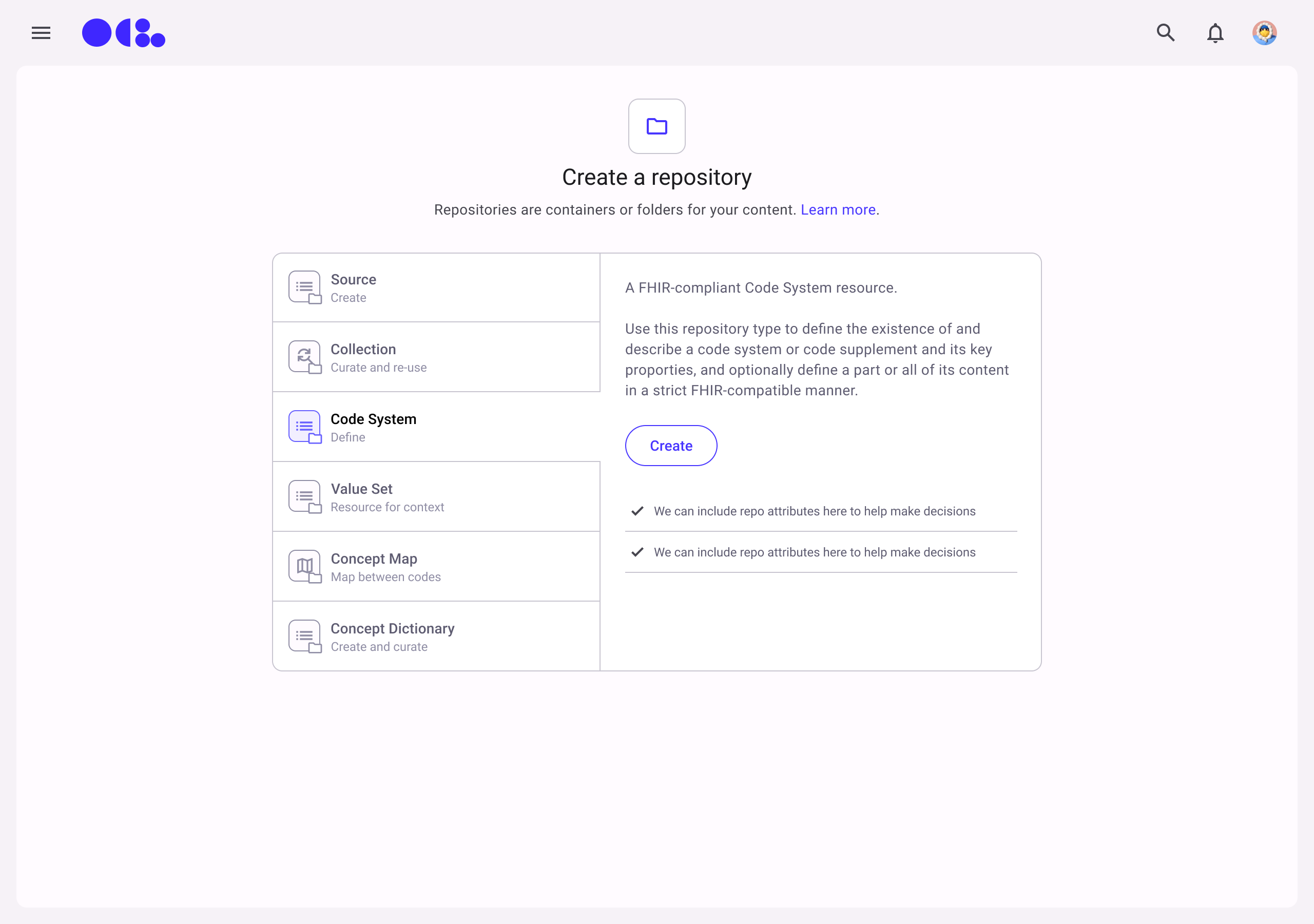

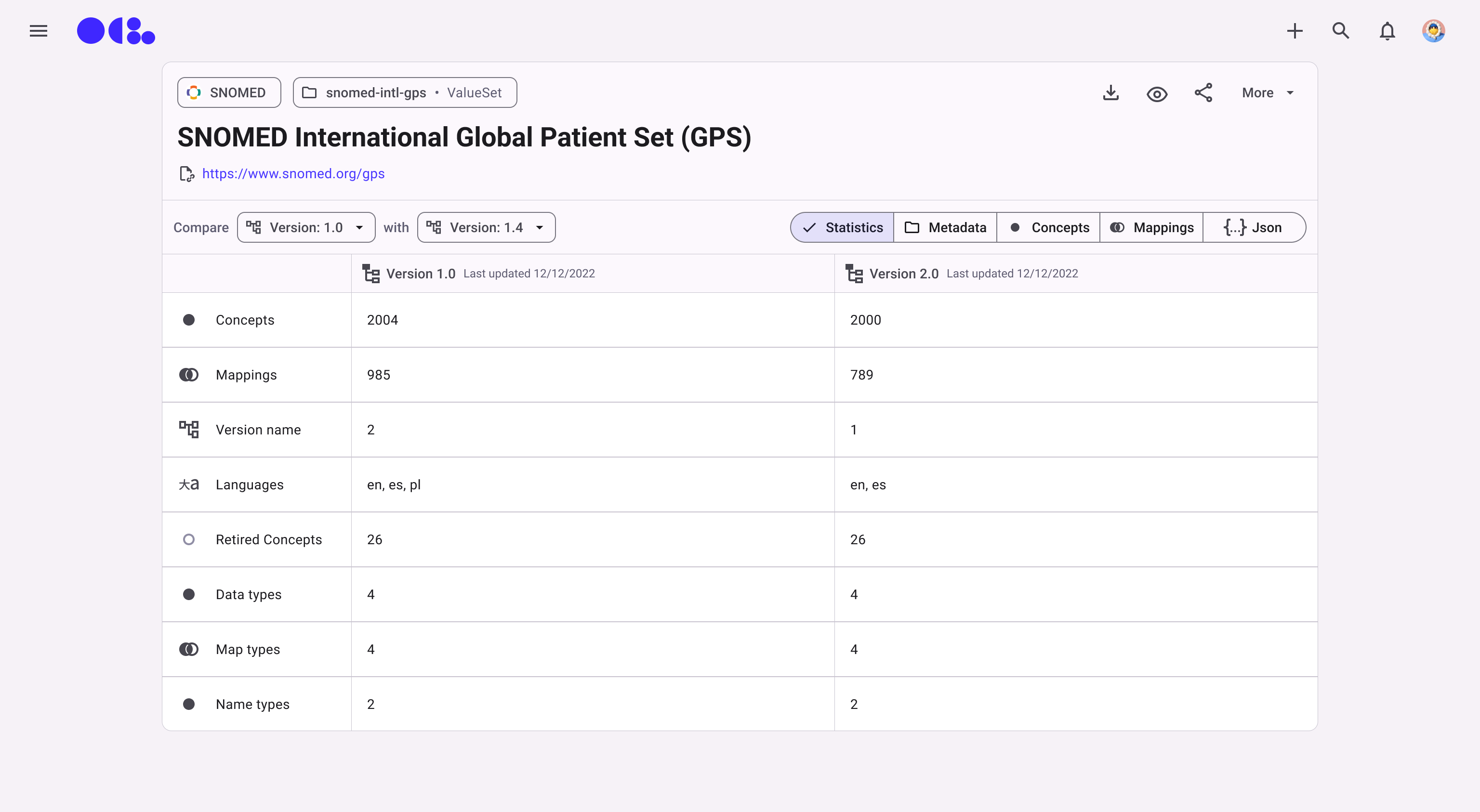

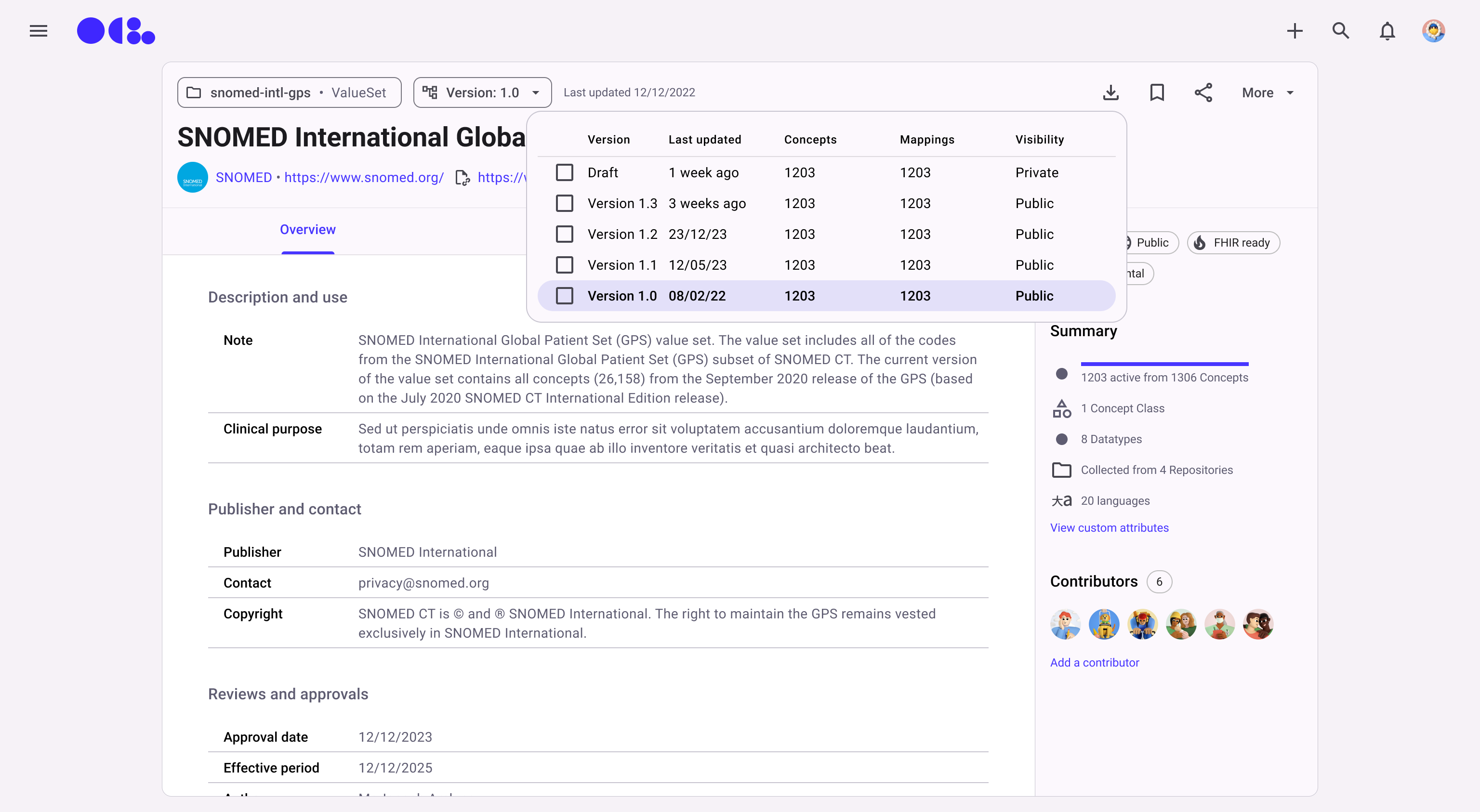

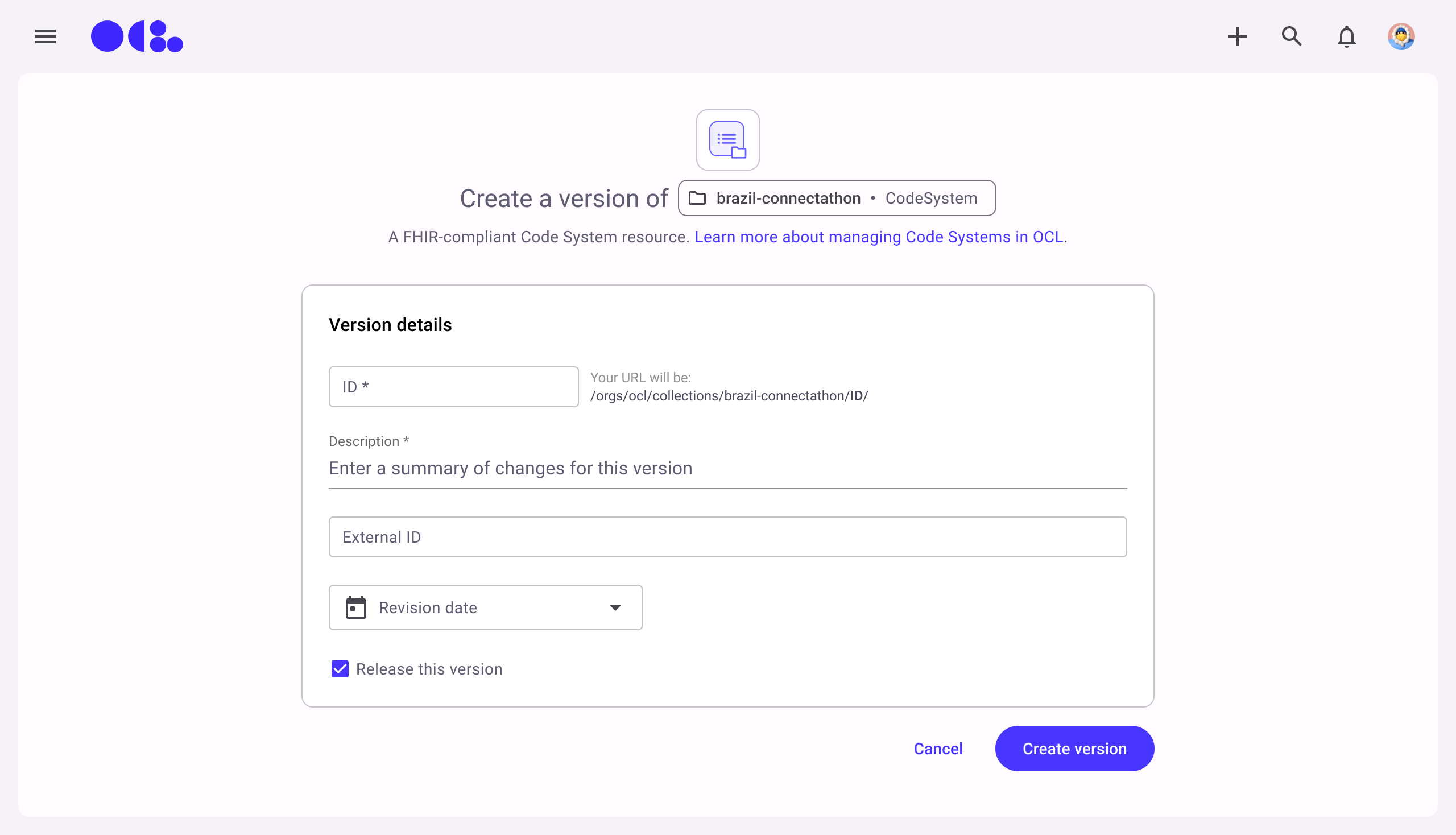

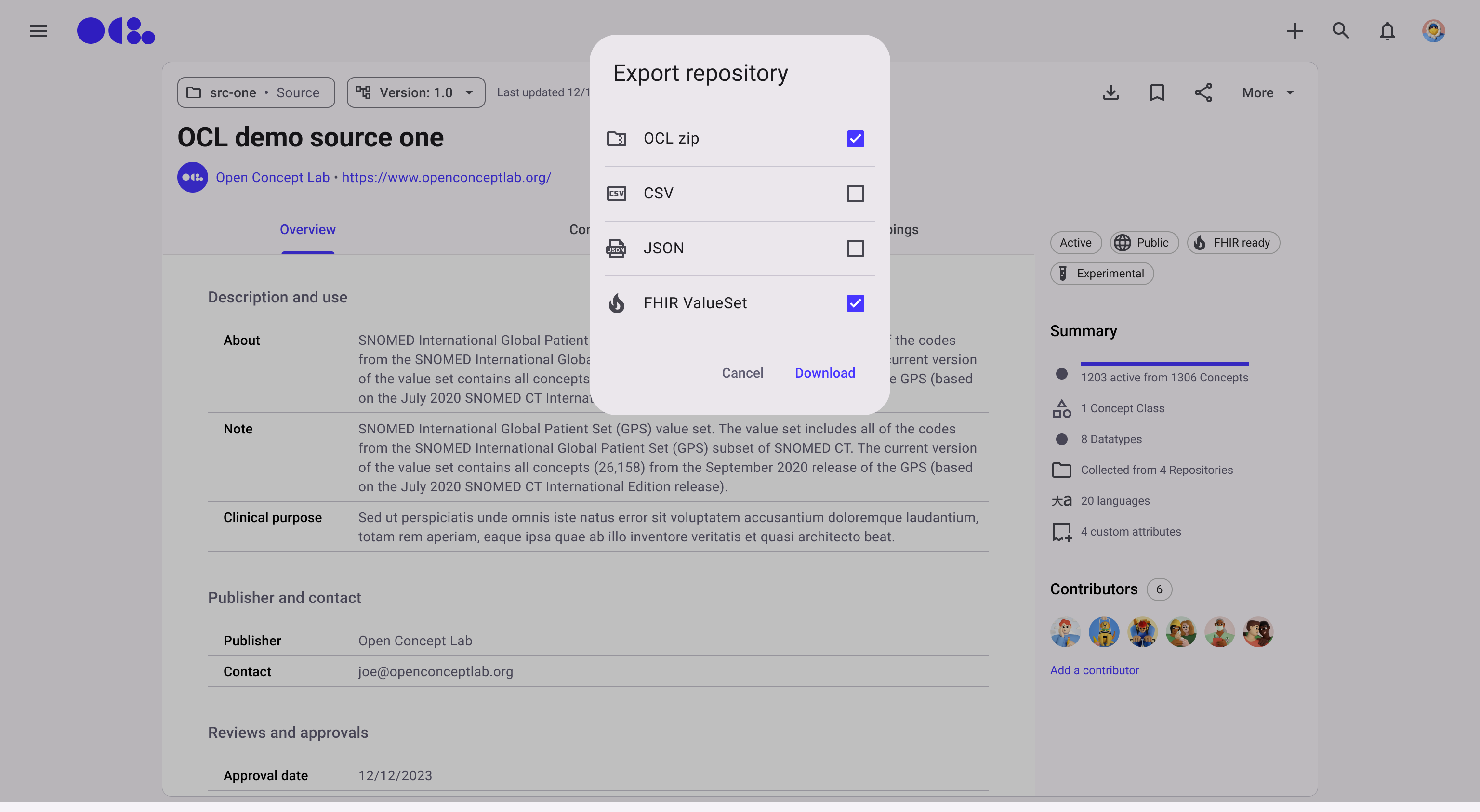

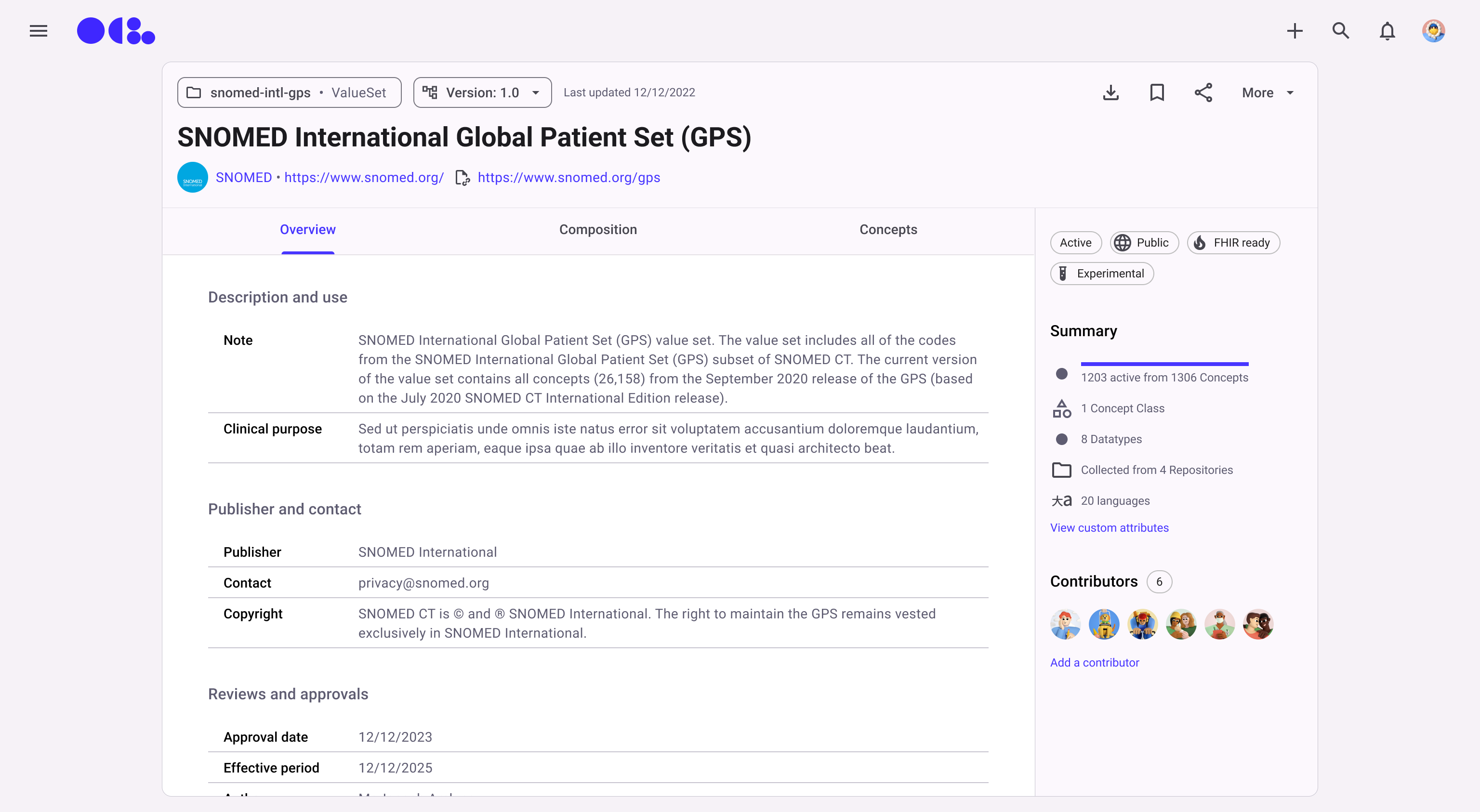

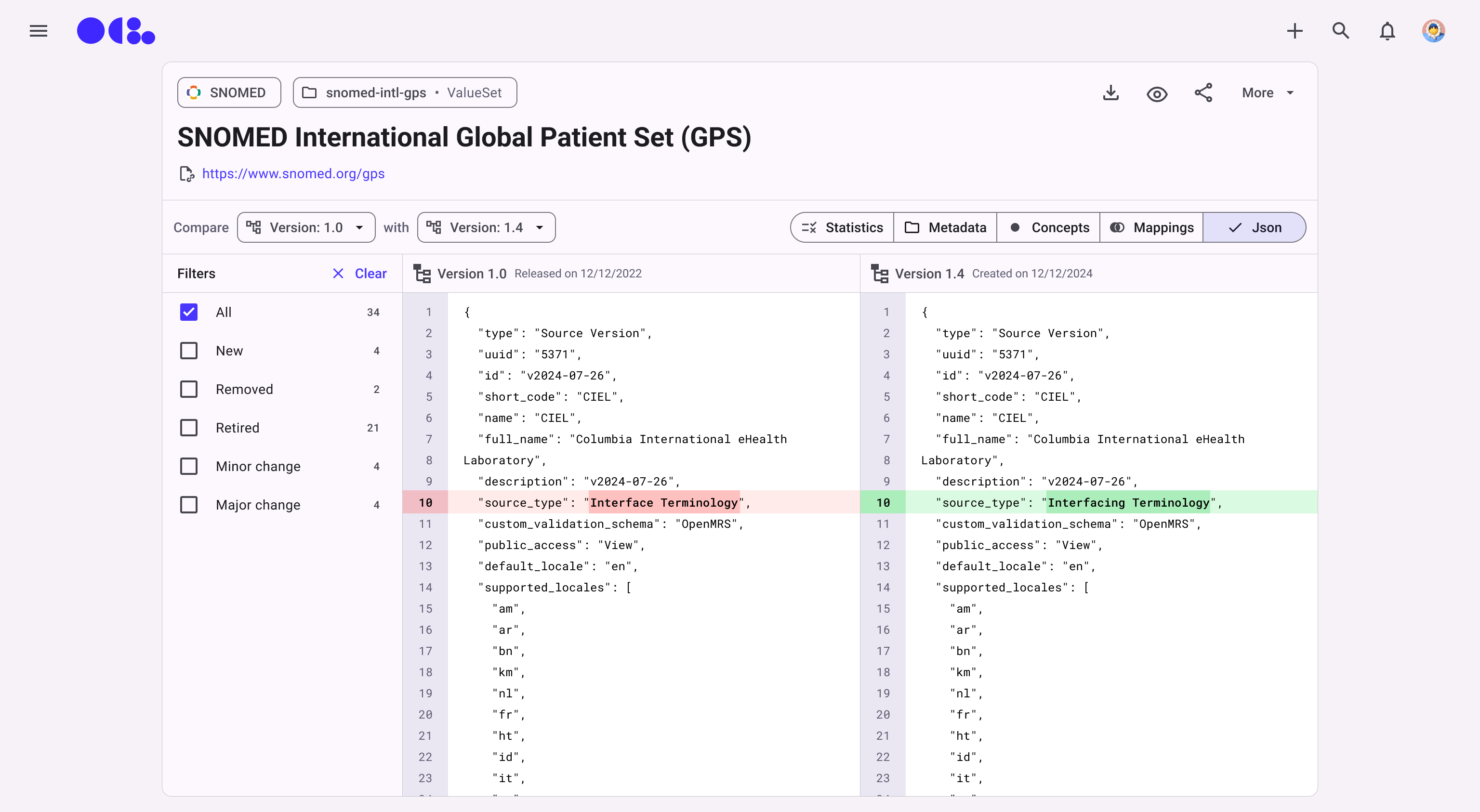

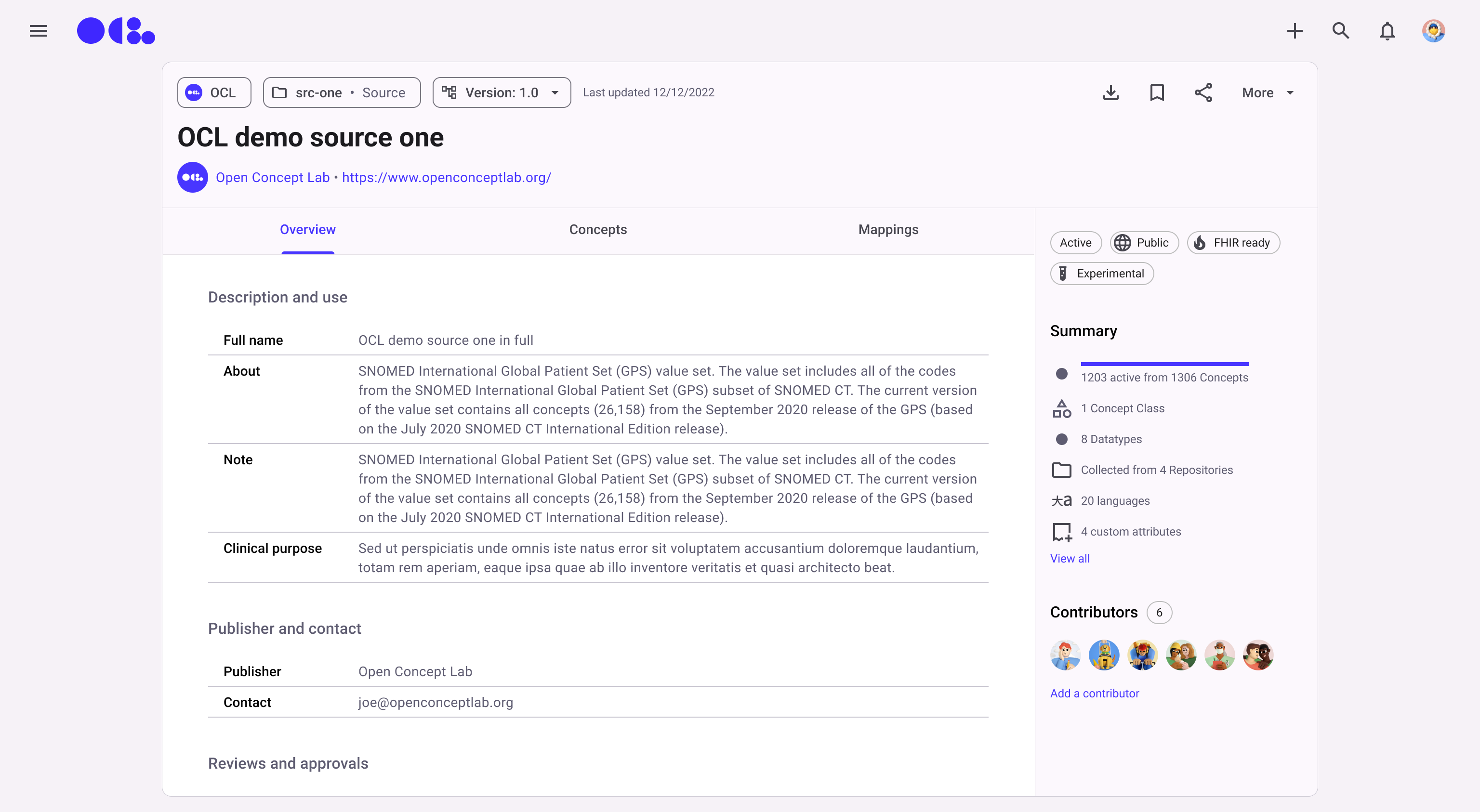

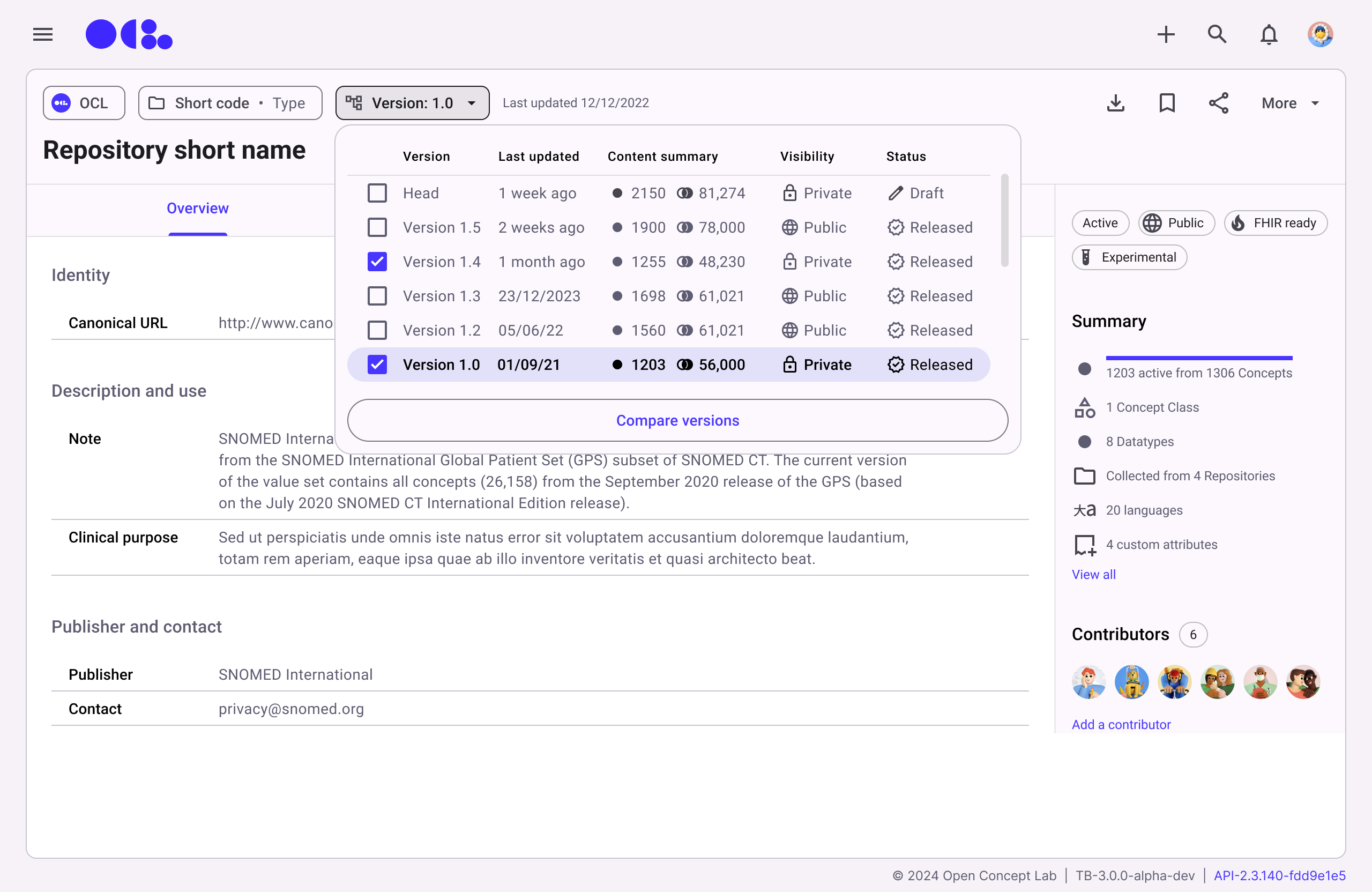

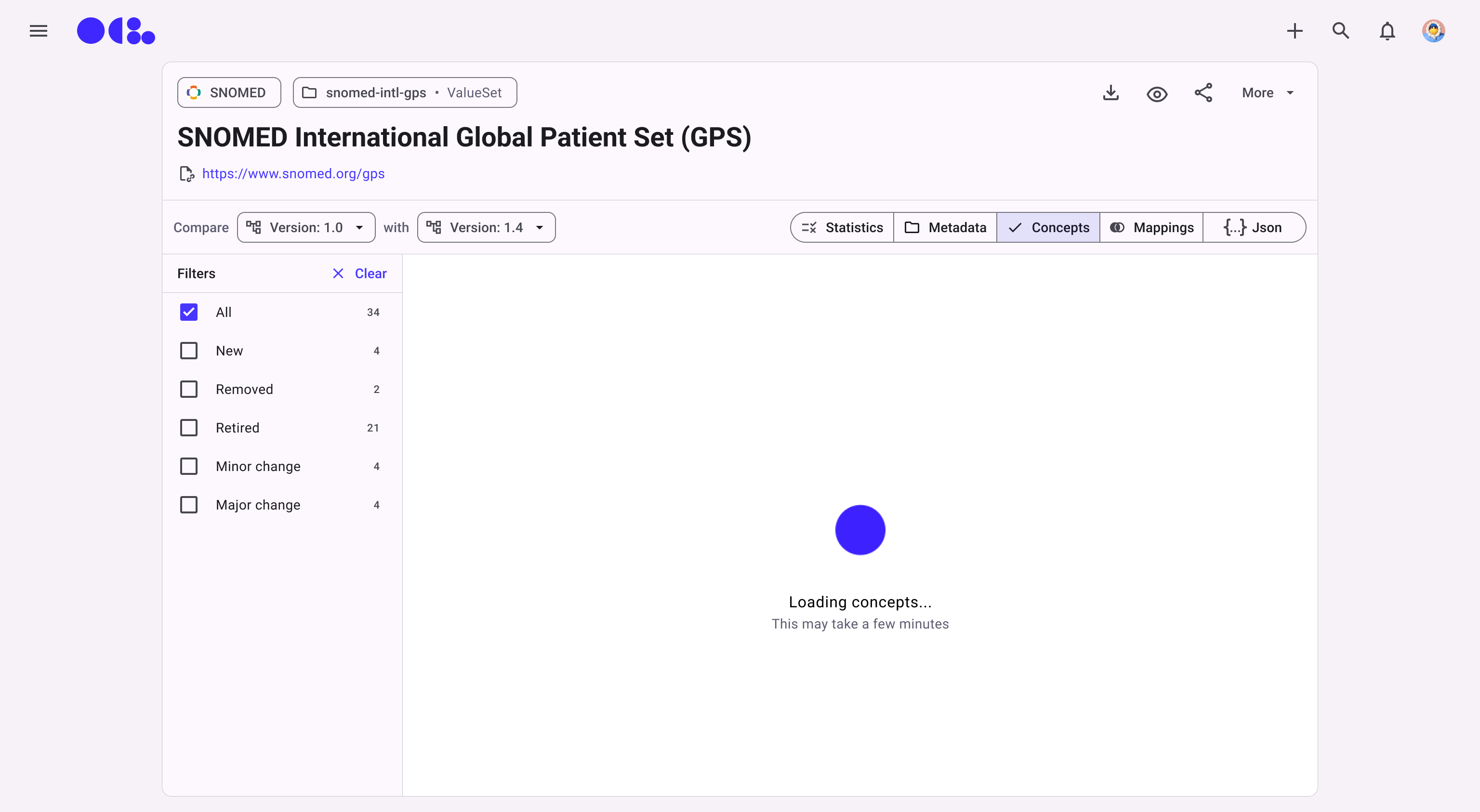

Repository

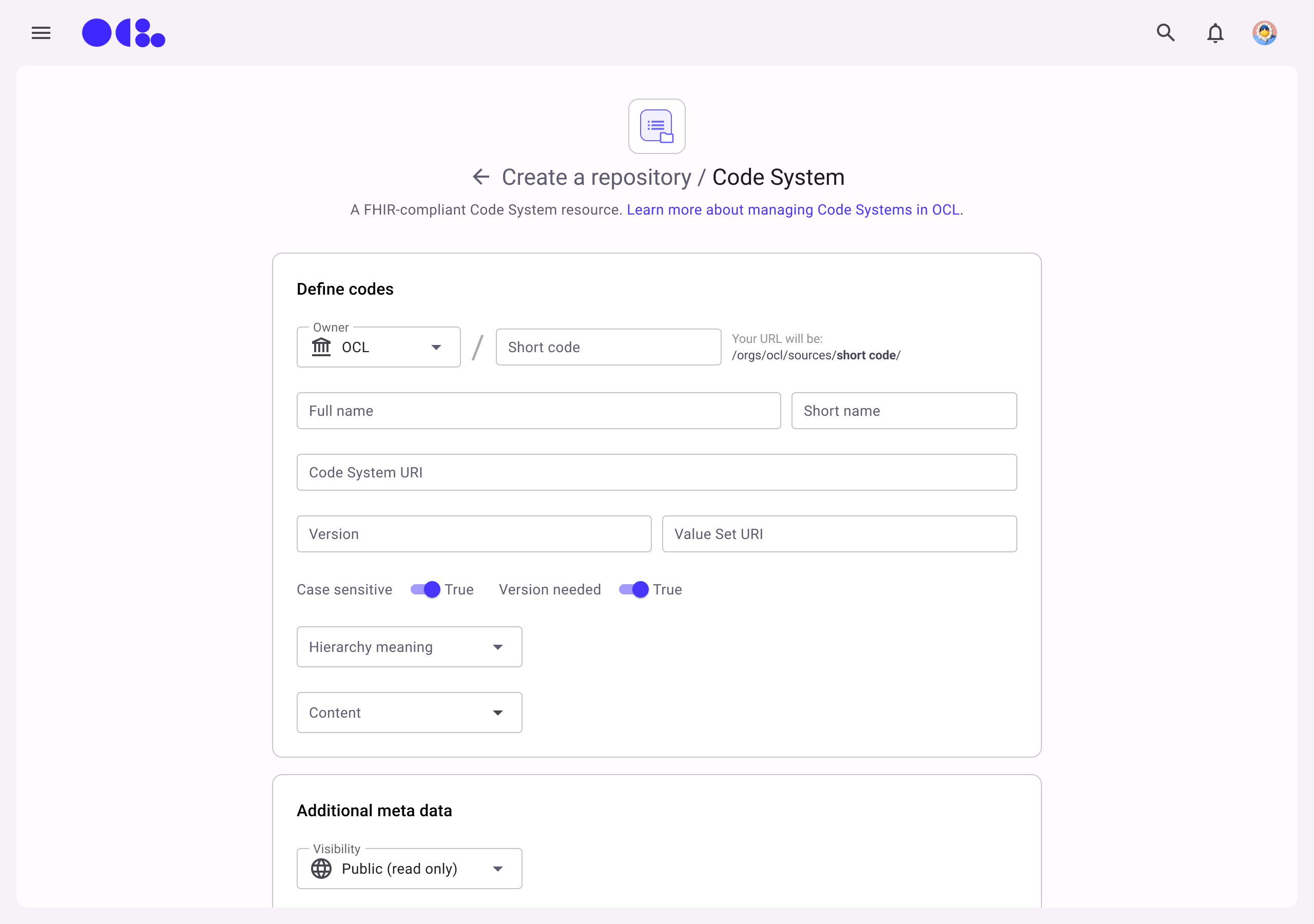

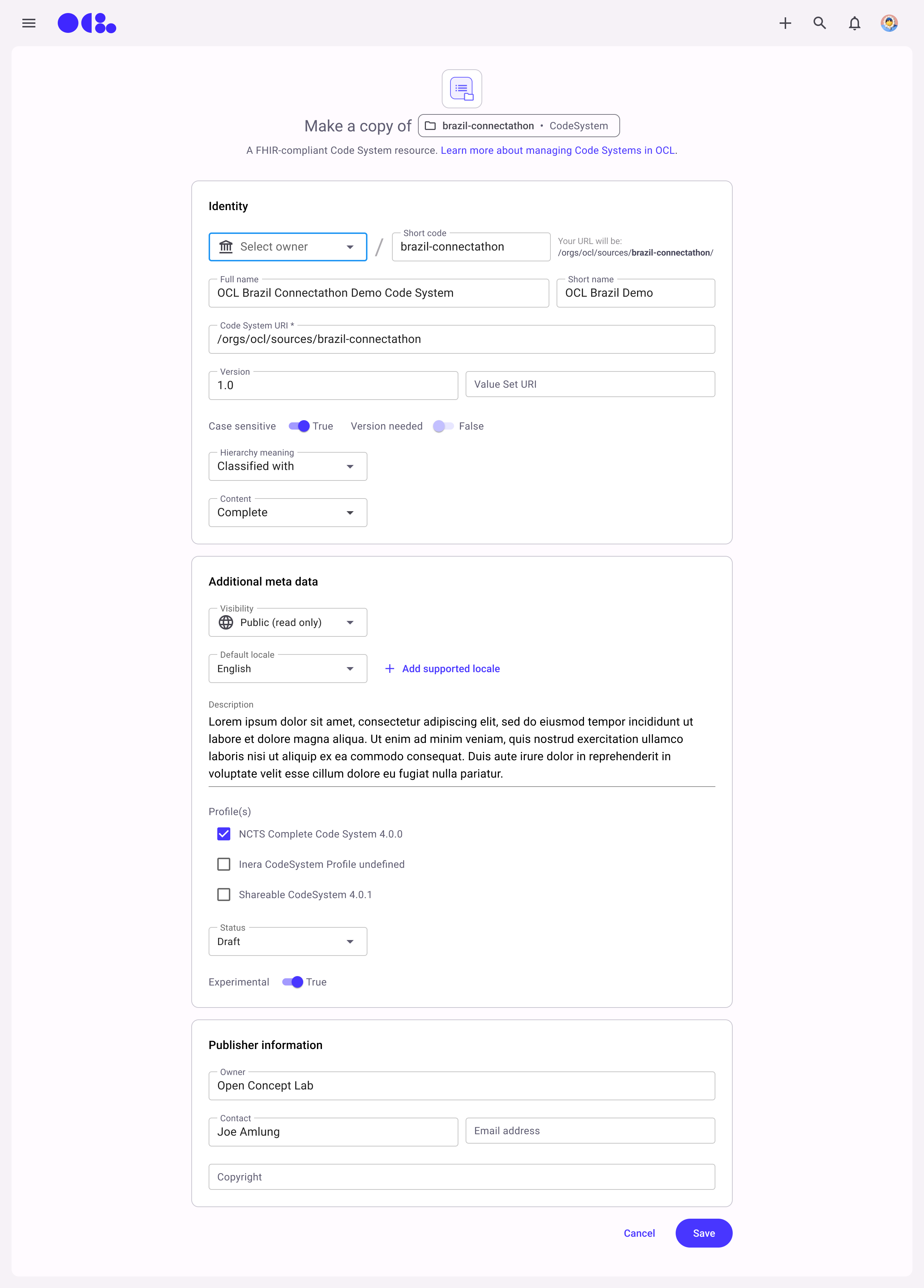

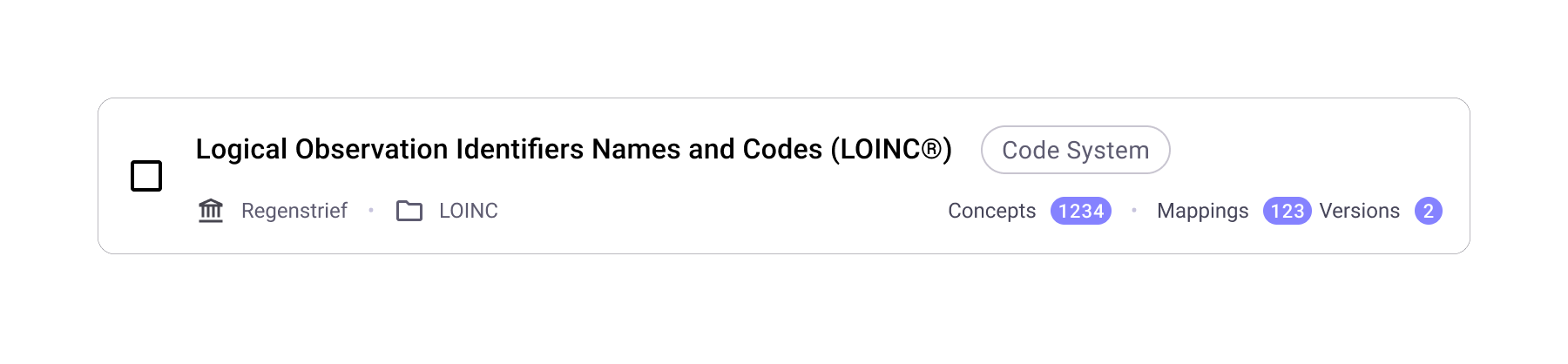

Mix of implemented (card view pattern, copy code system) and not-yet-built (key-value overview, valueset views, collection references). Card-view dialog workflow is kept as input but not MVP.

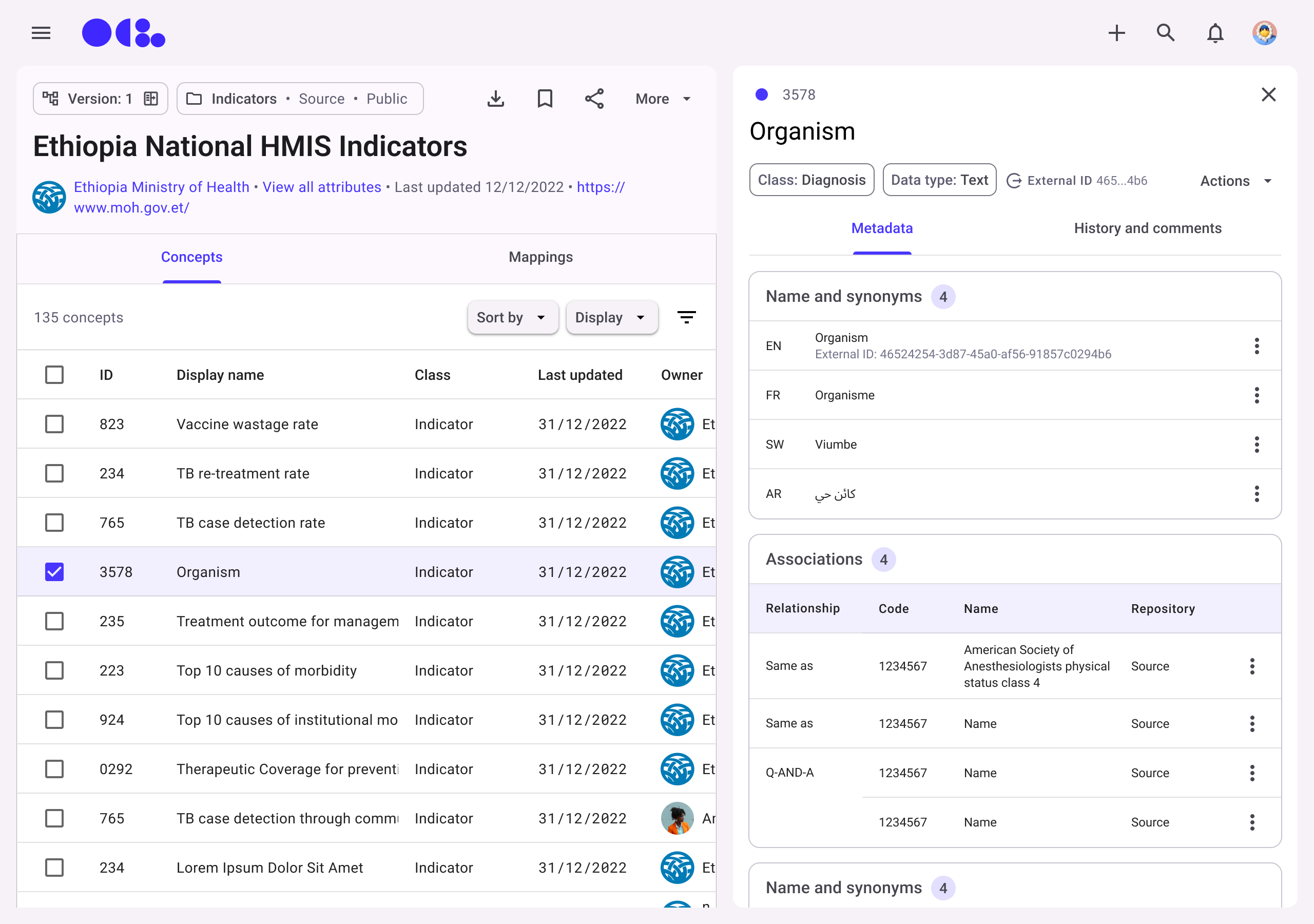

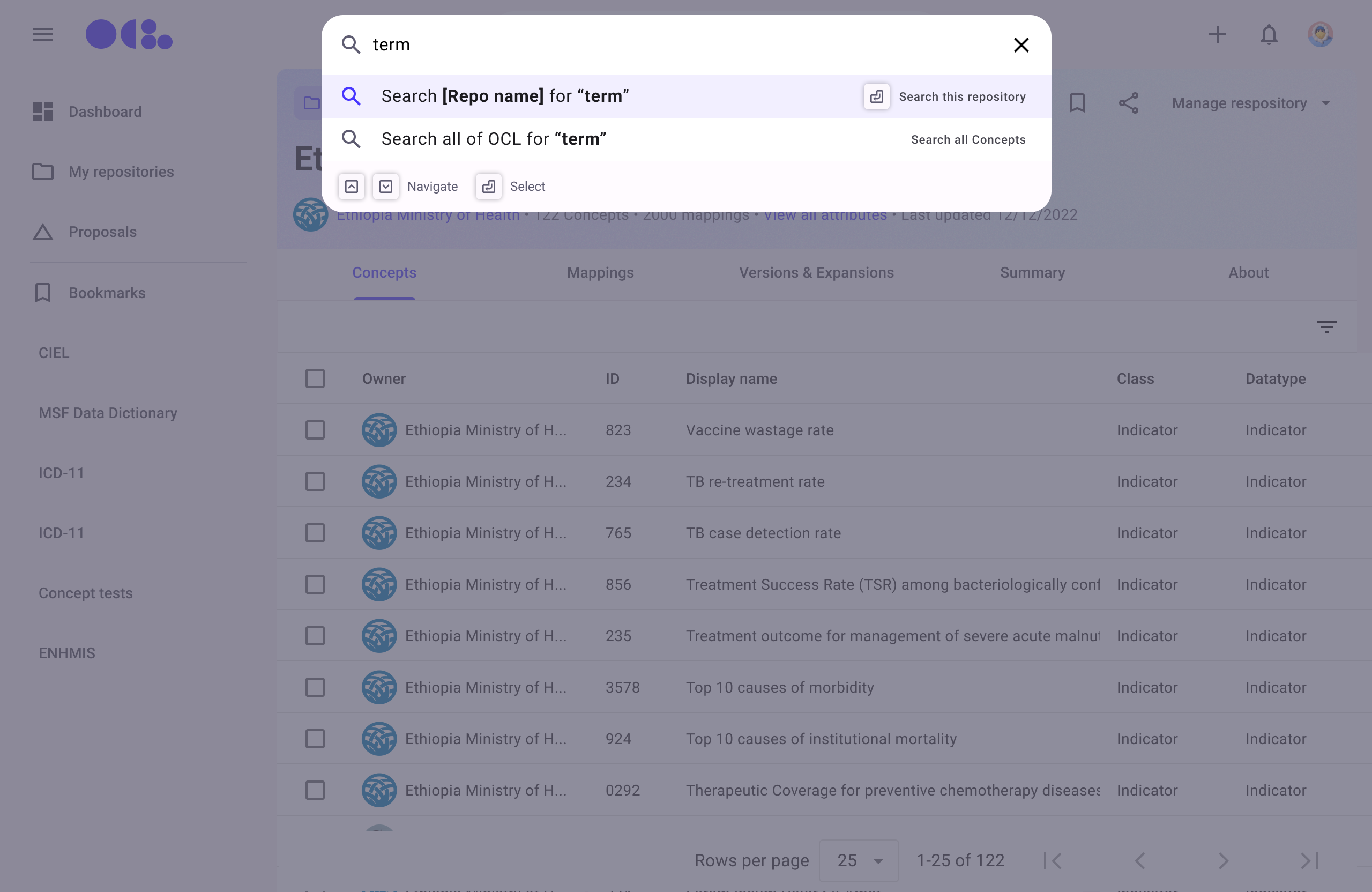

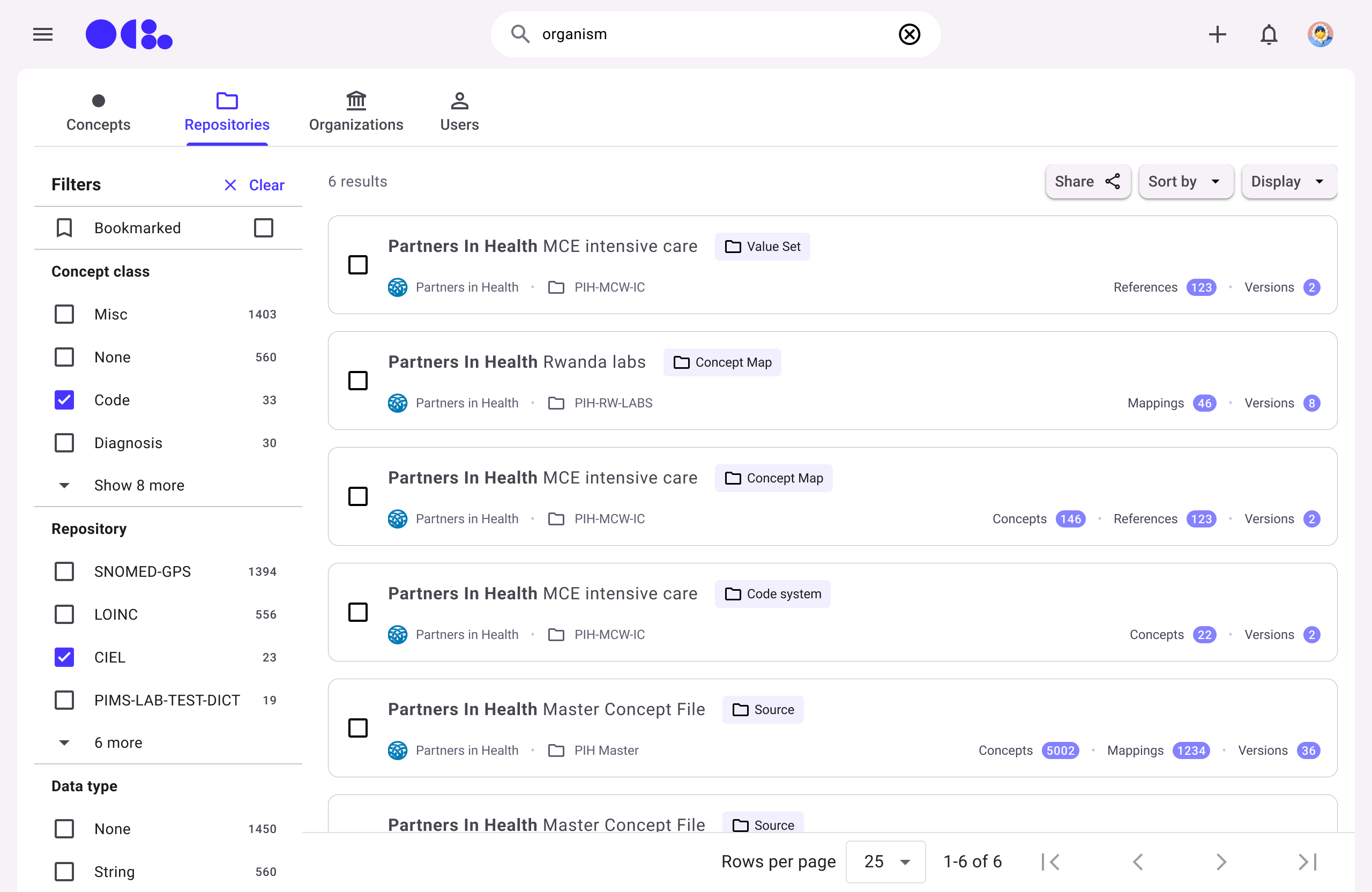

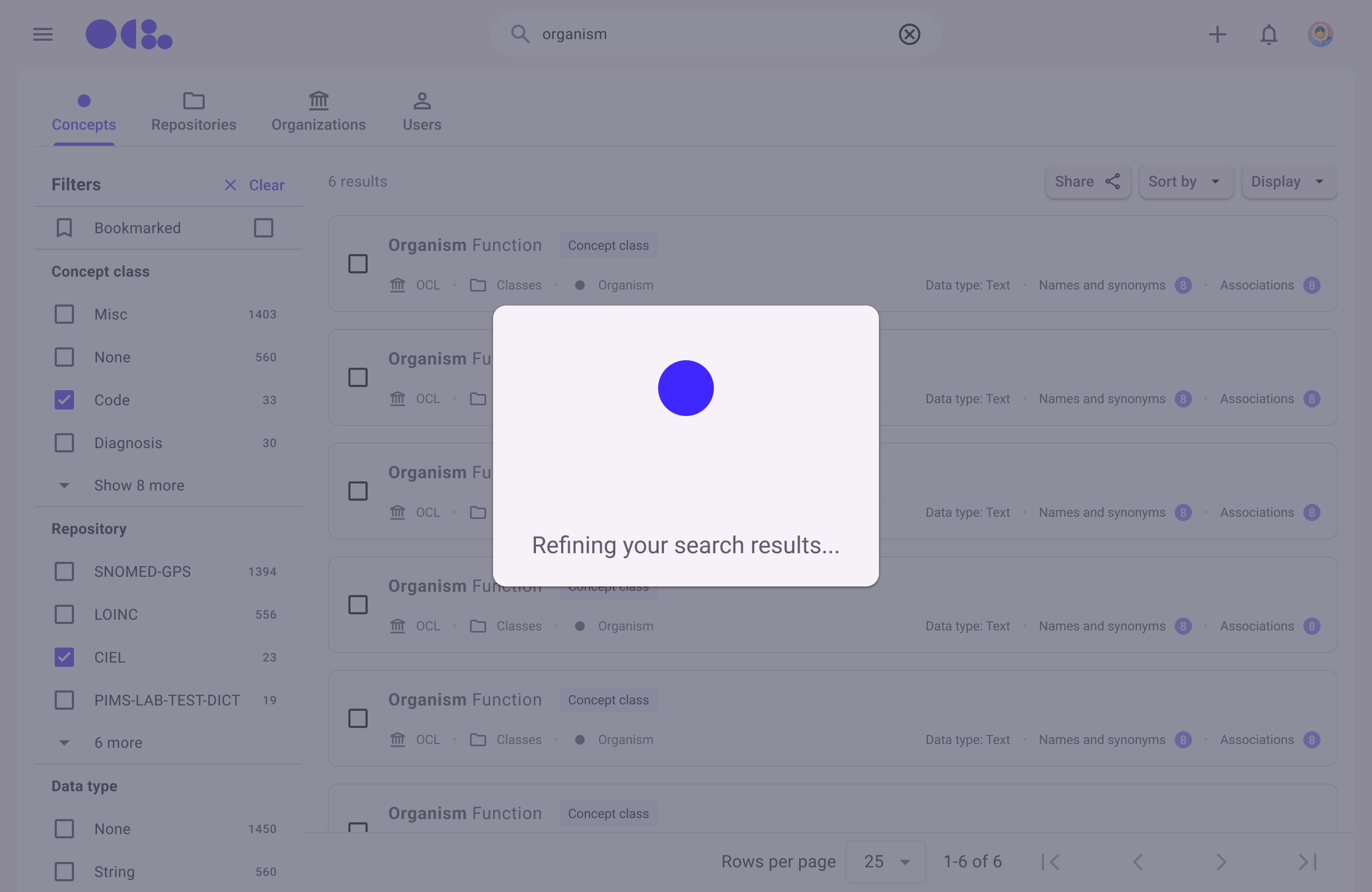

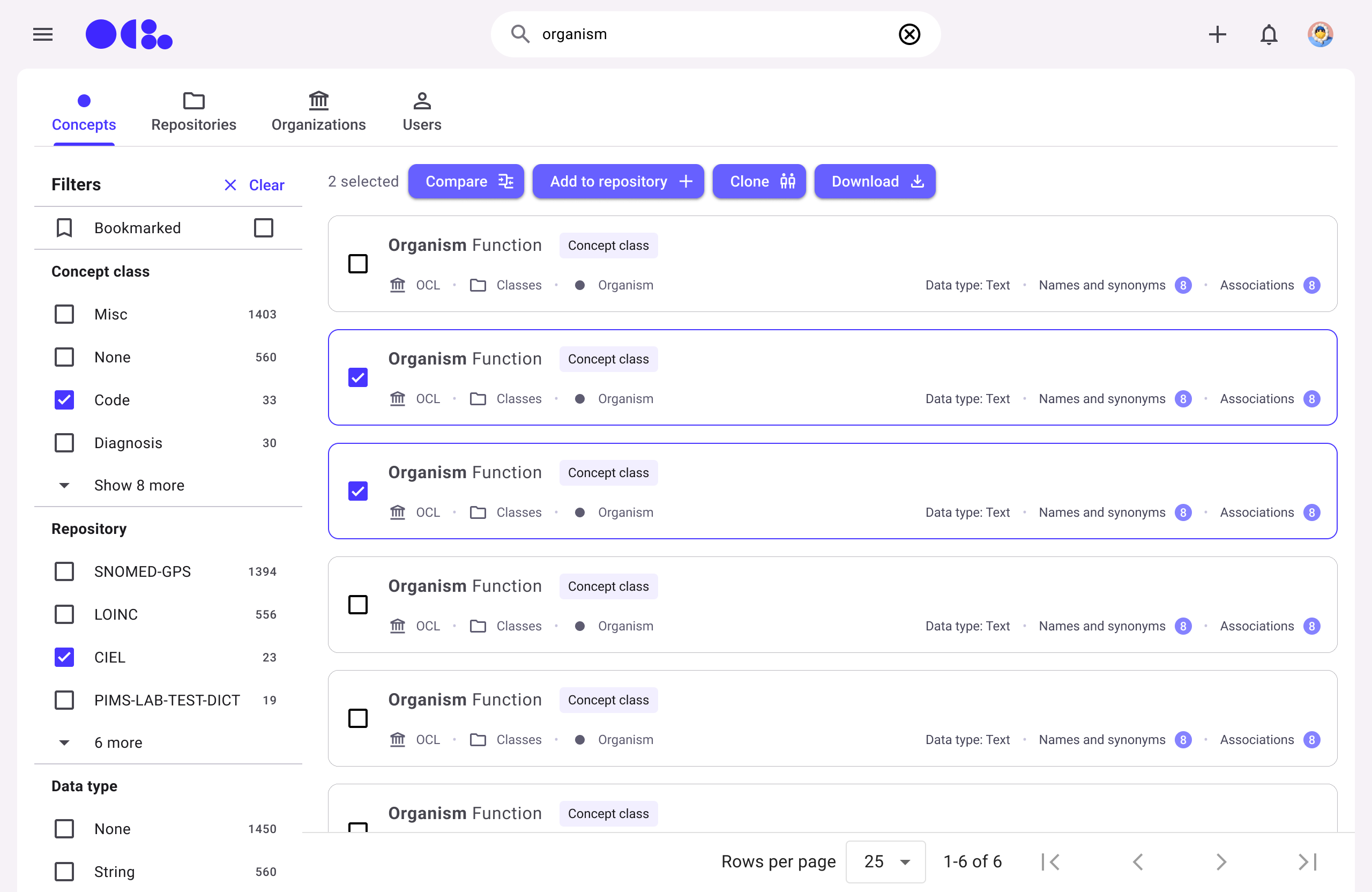

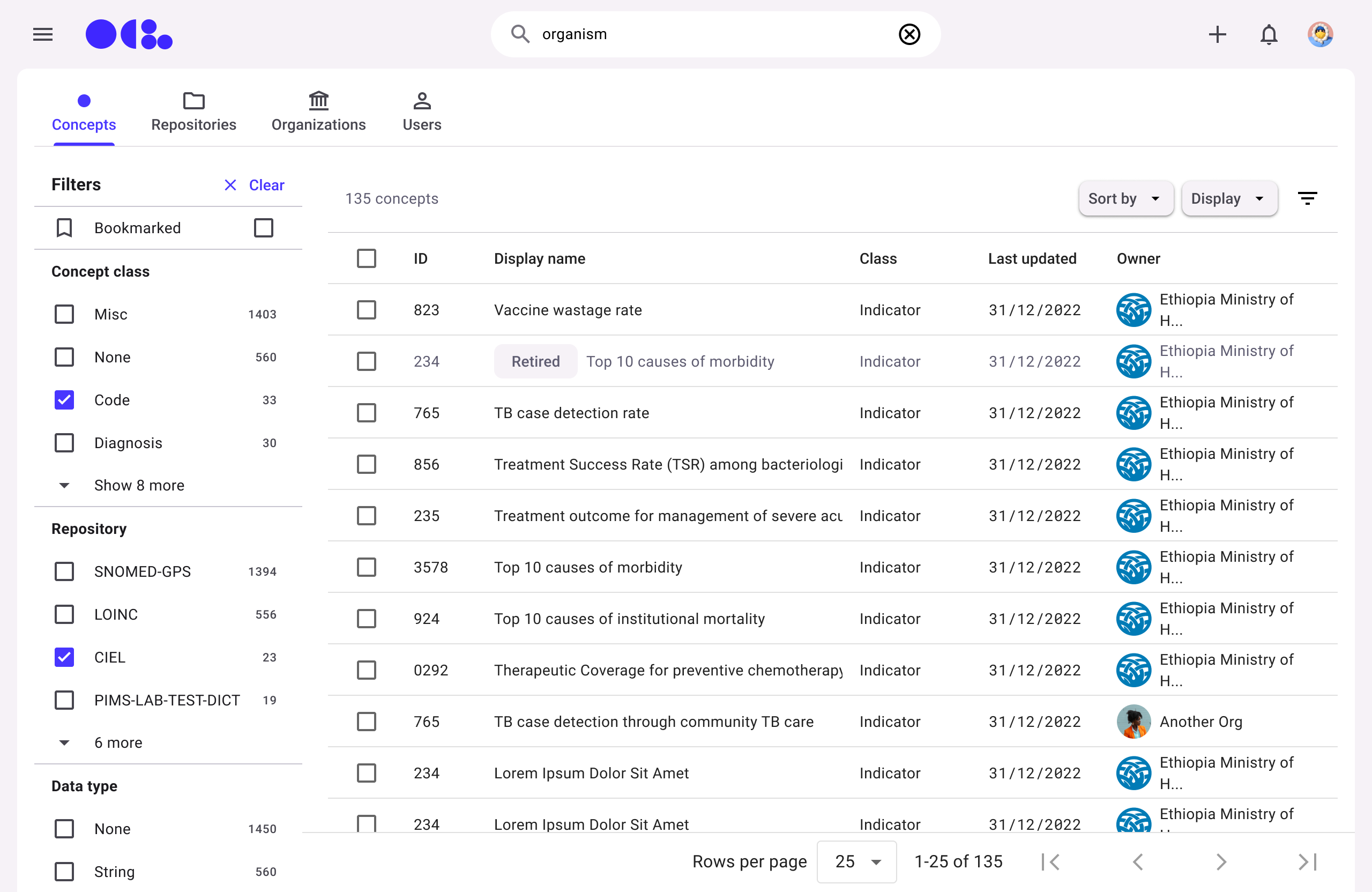

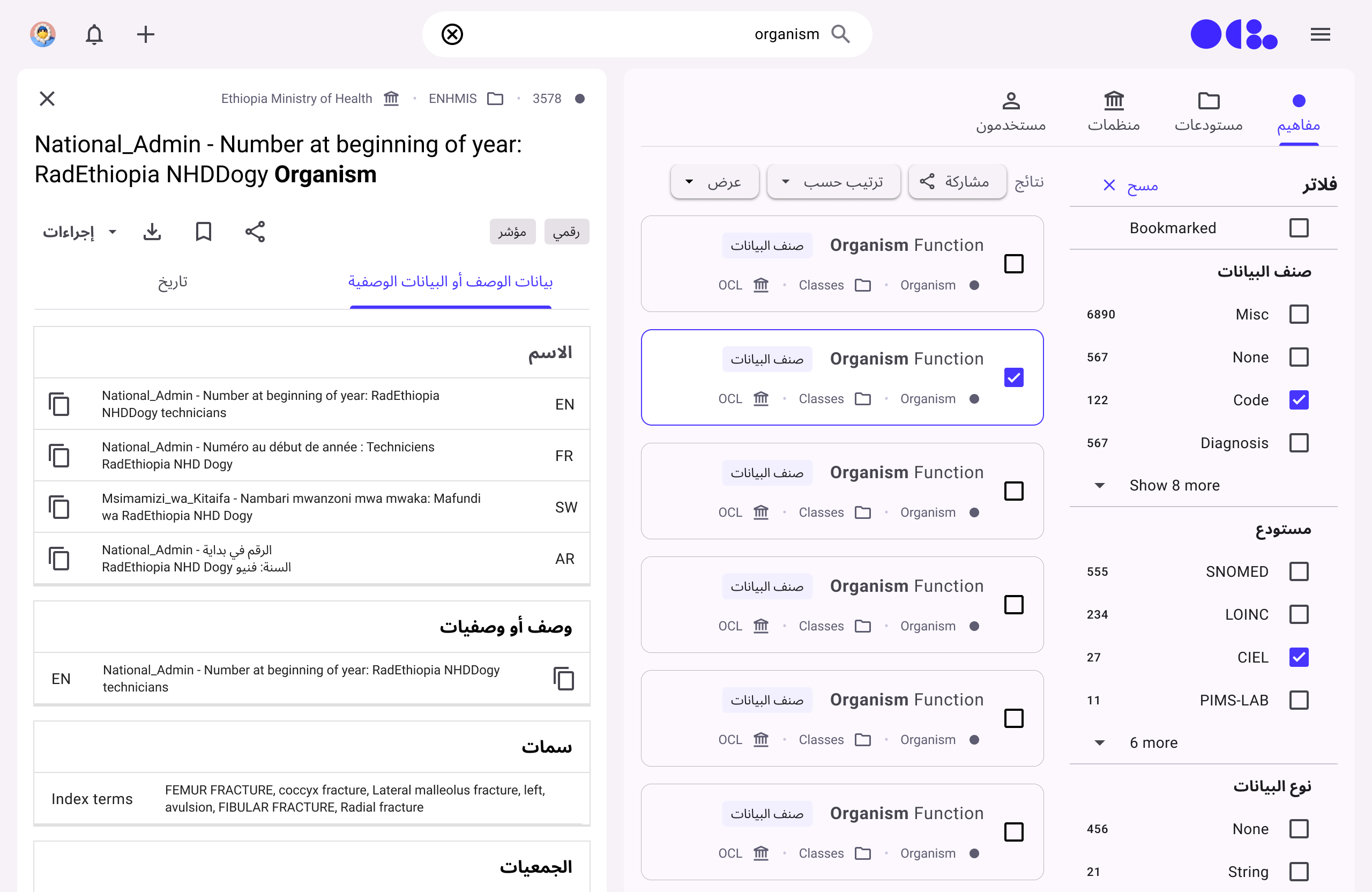

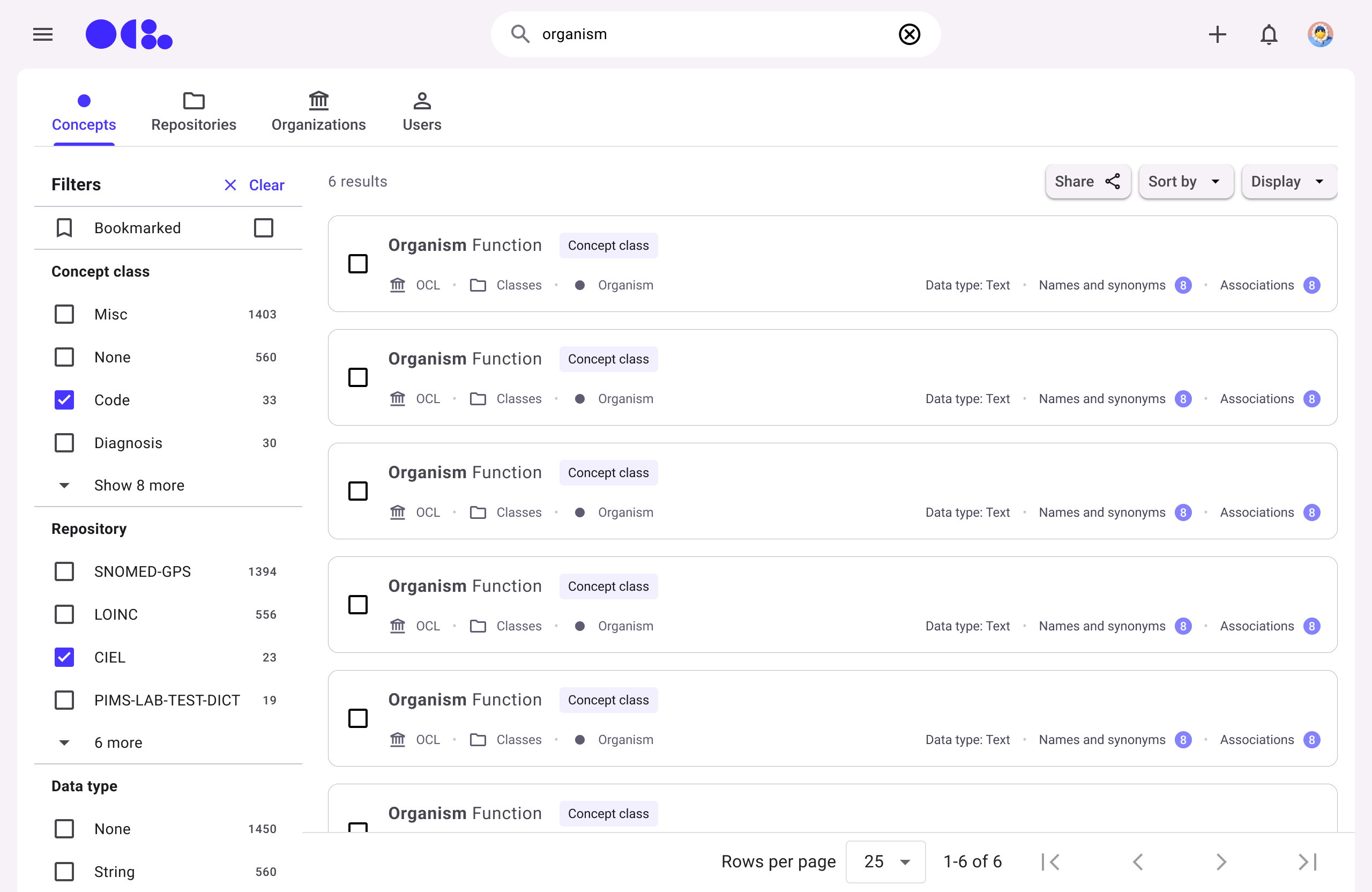

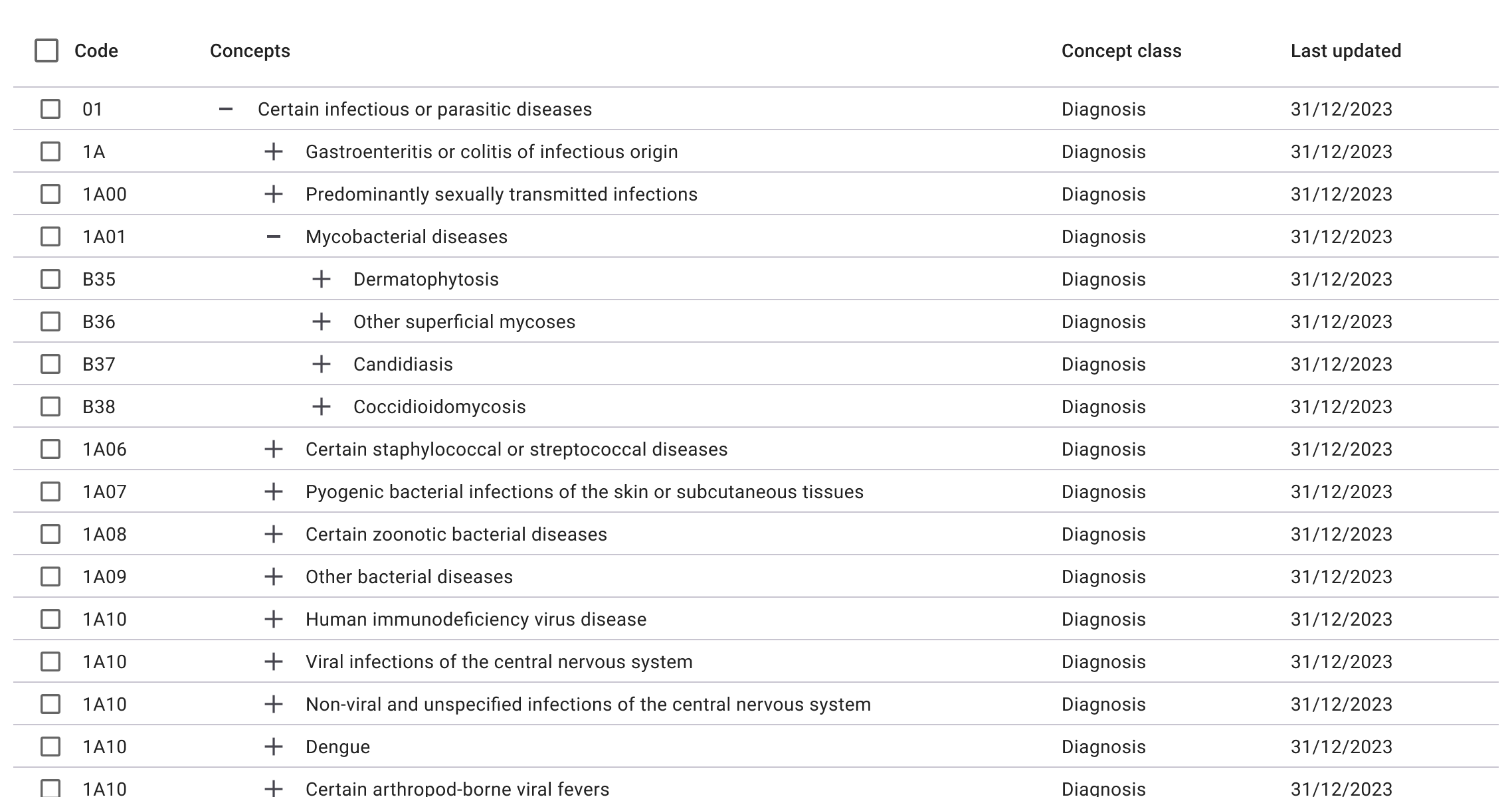

Search

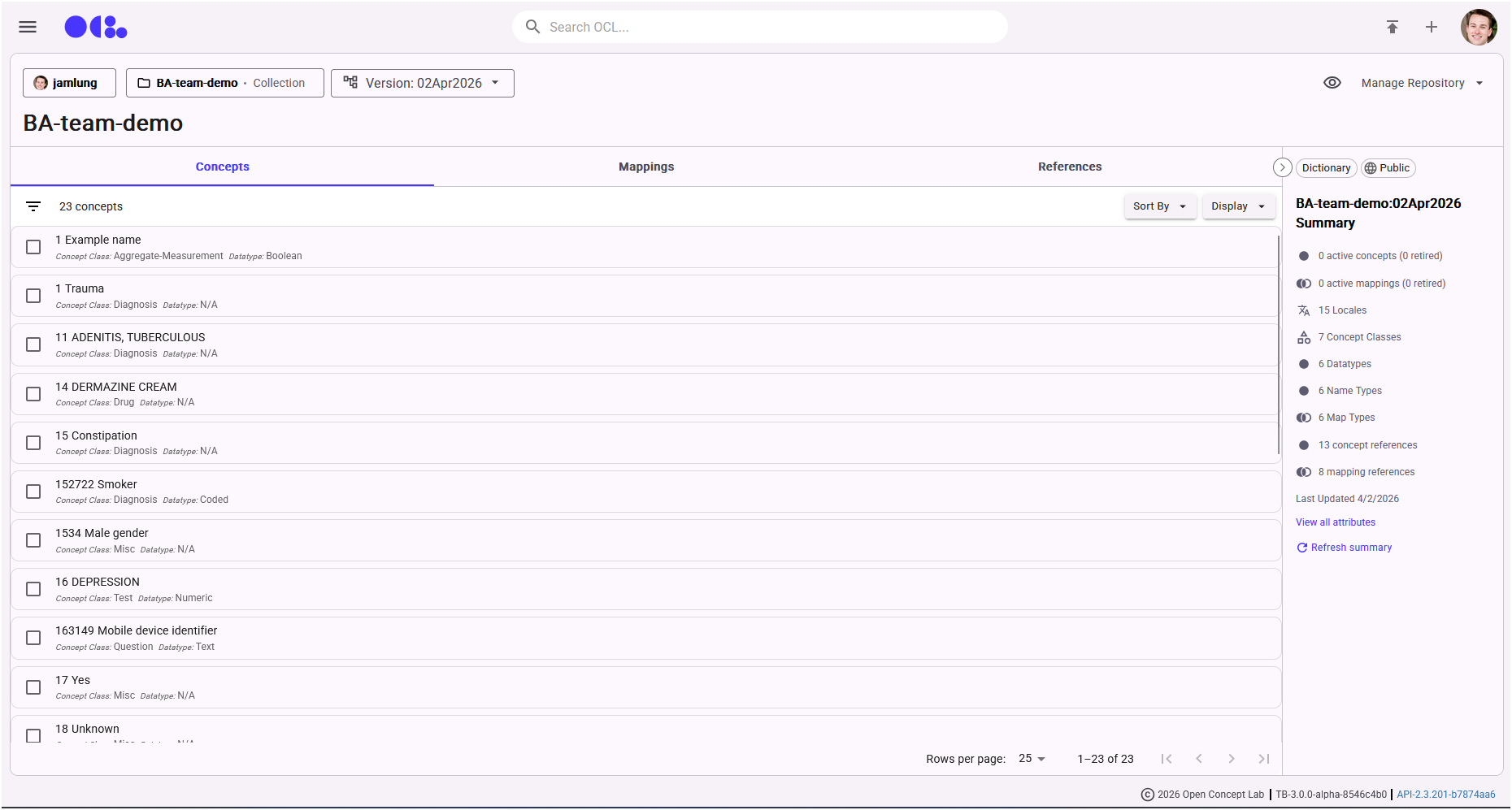

Concept card view is divergent from canonical (OCL Mapper work added multi-property support). Grouped/hierarchical views are mostly not implemented.

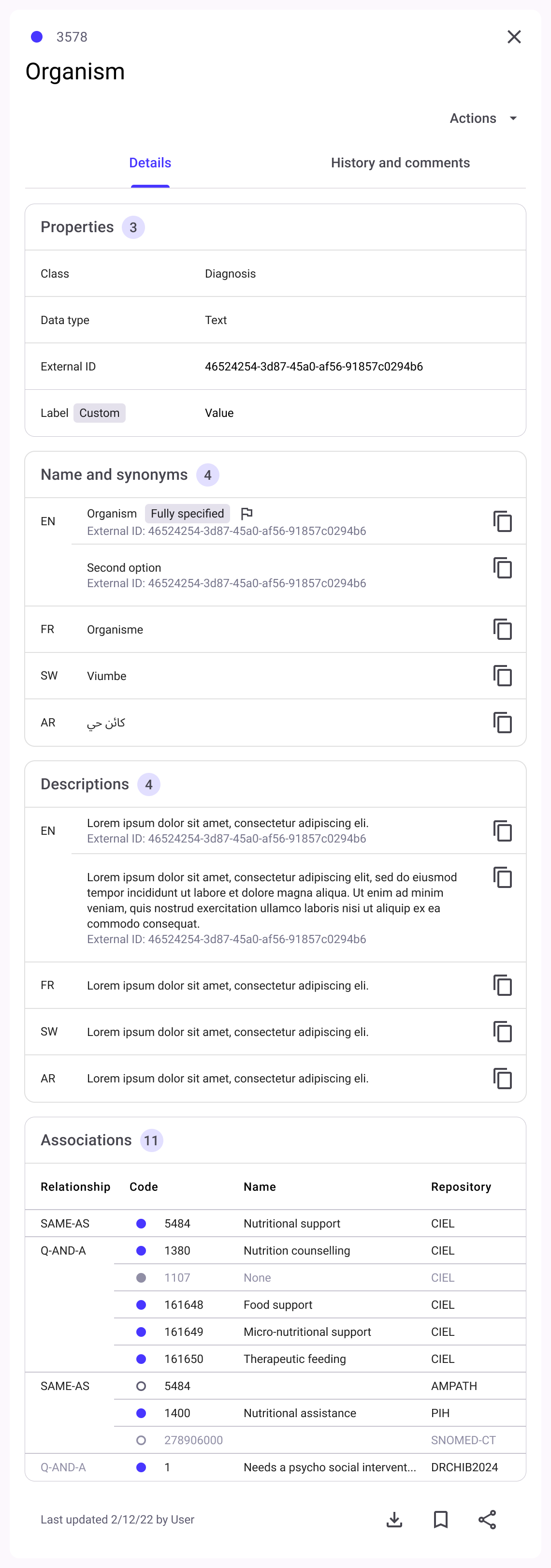

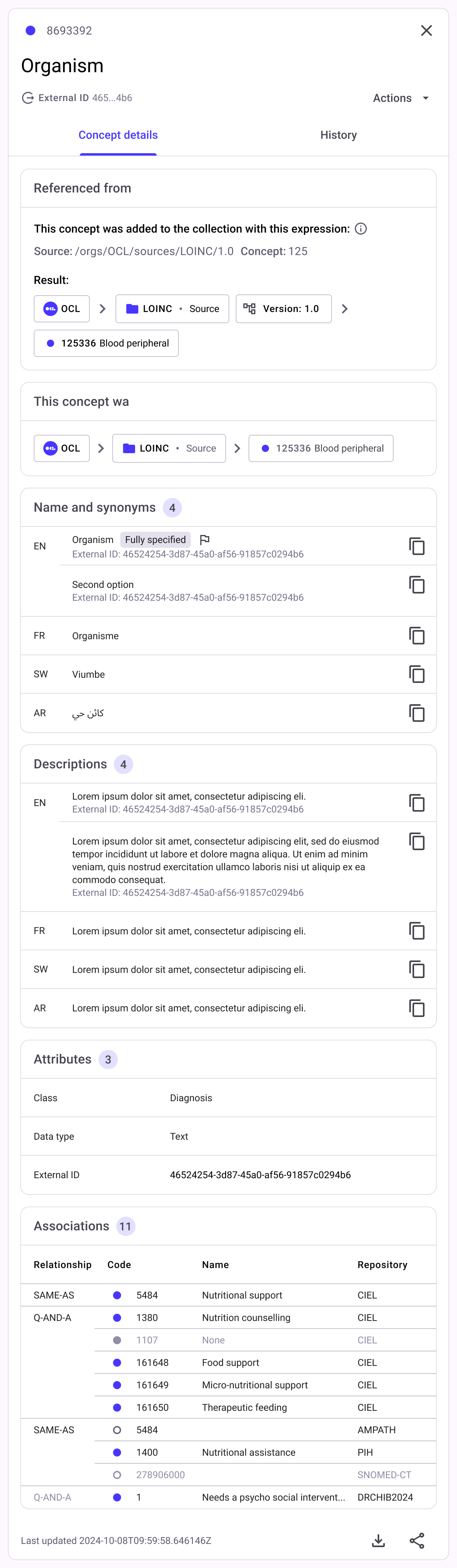

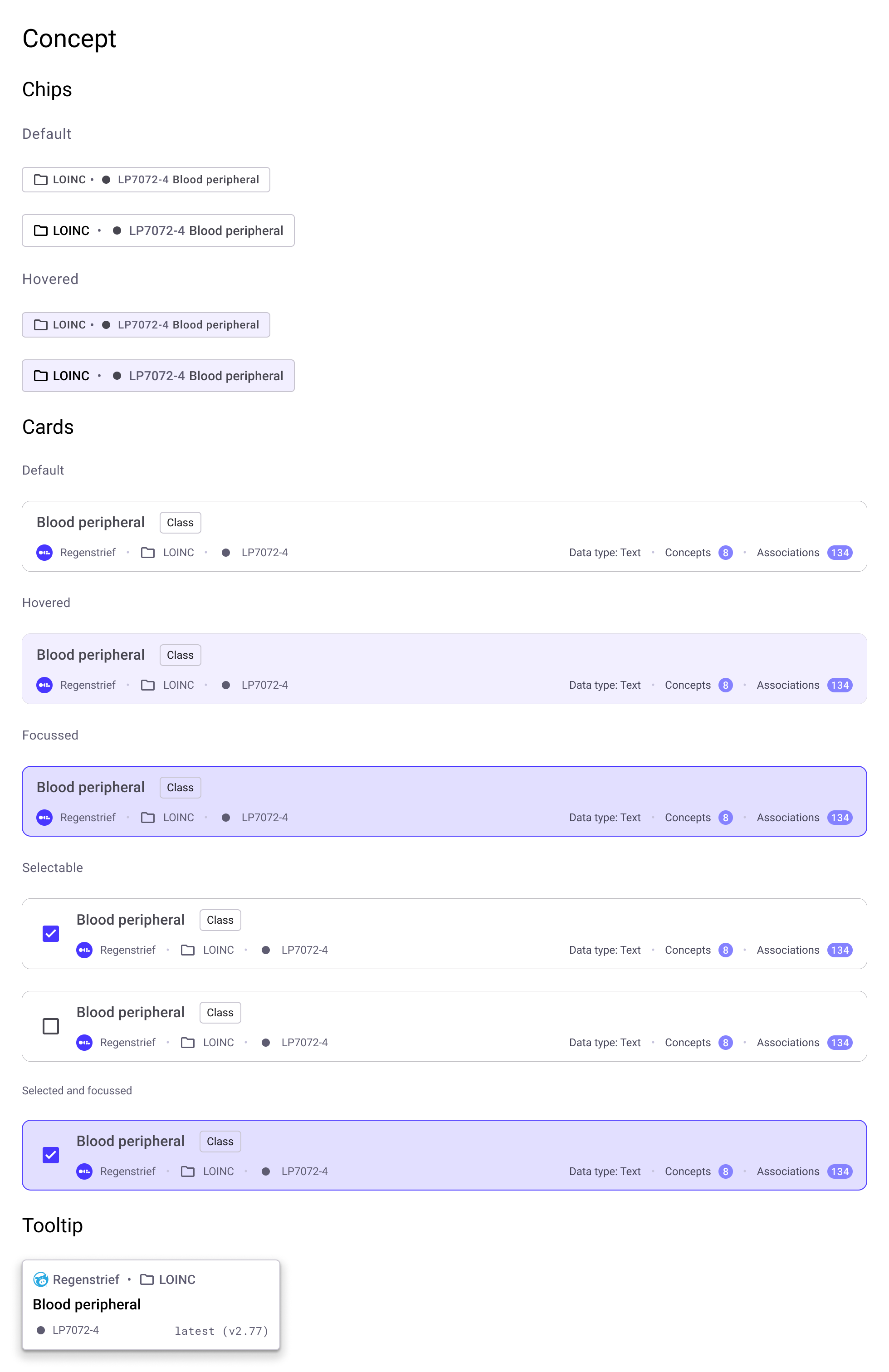

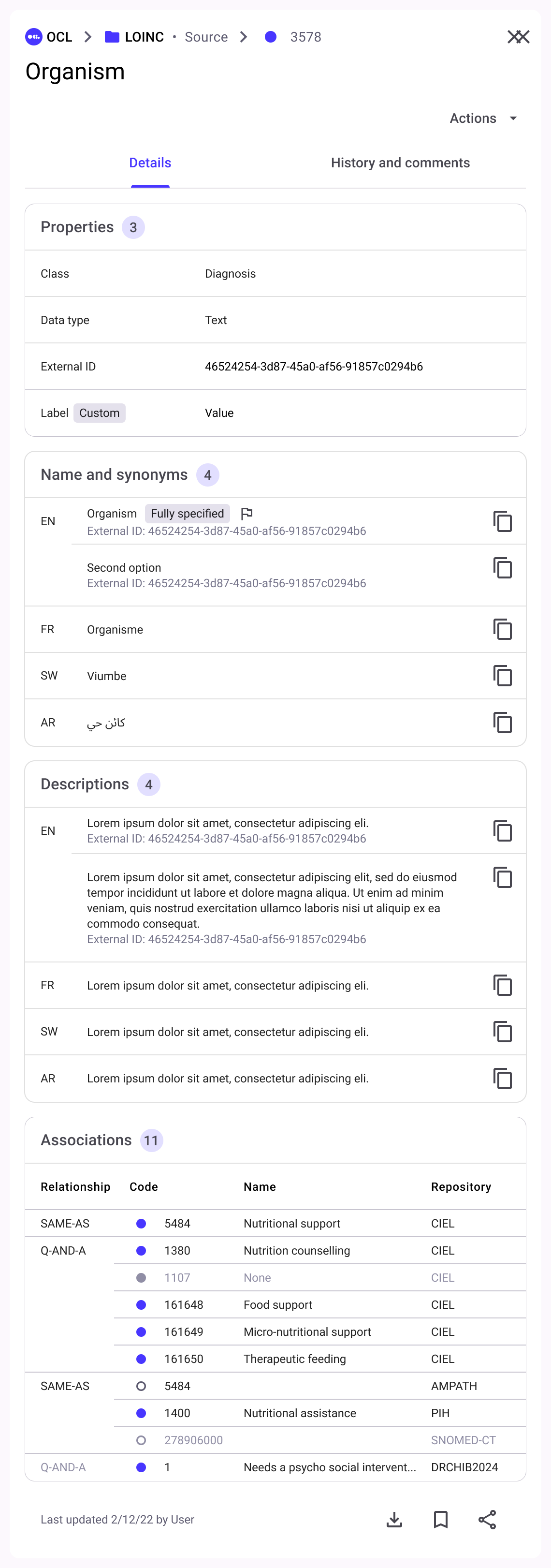

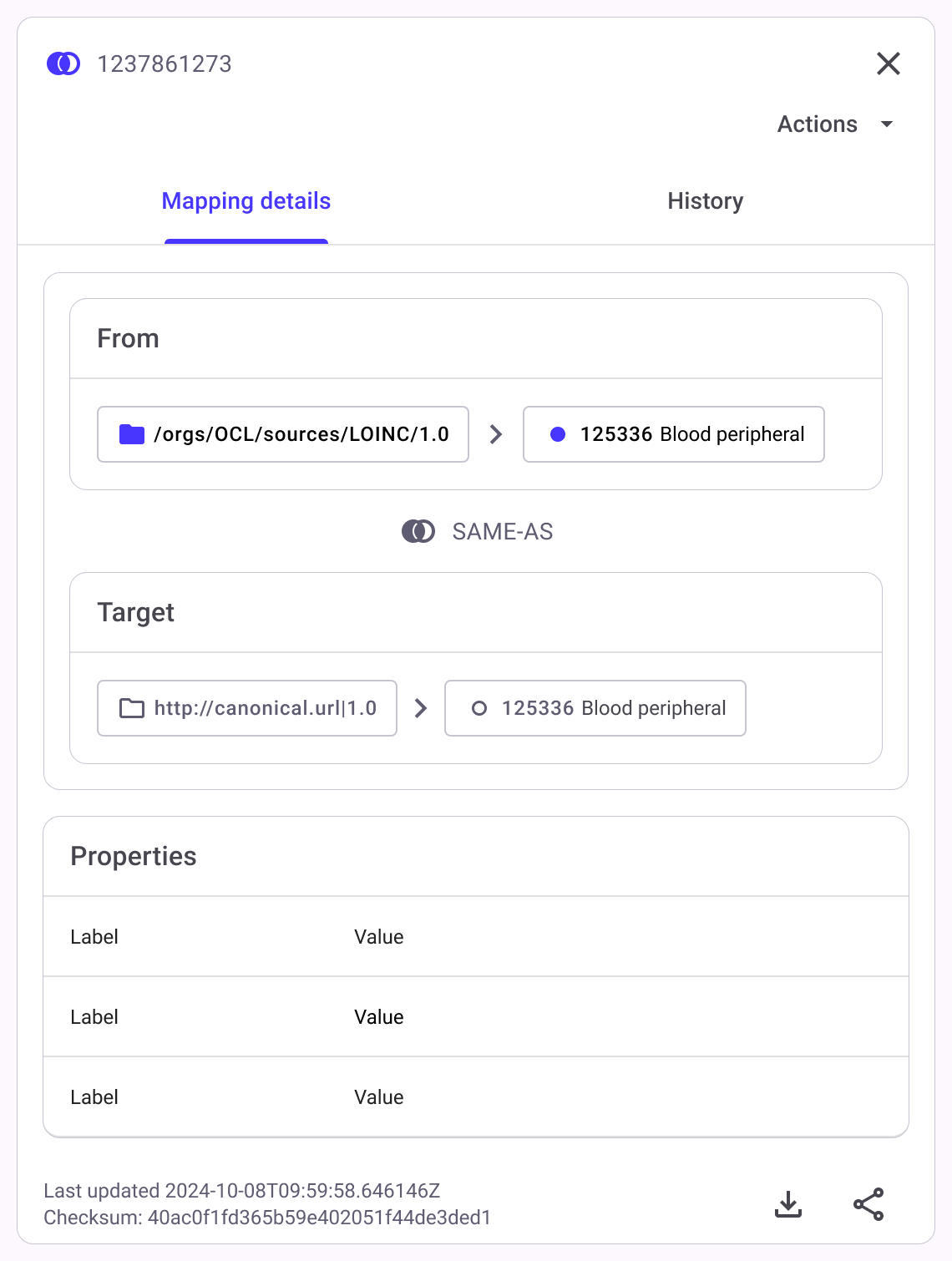

Concept & Mapping

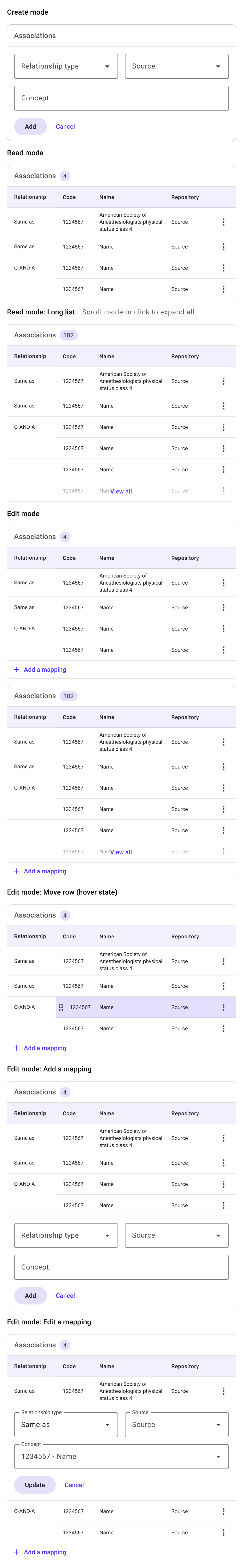

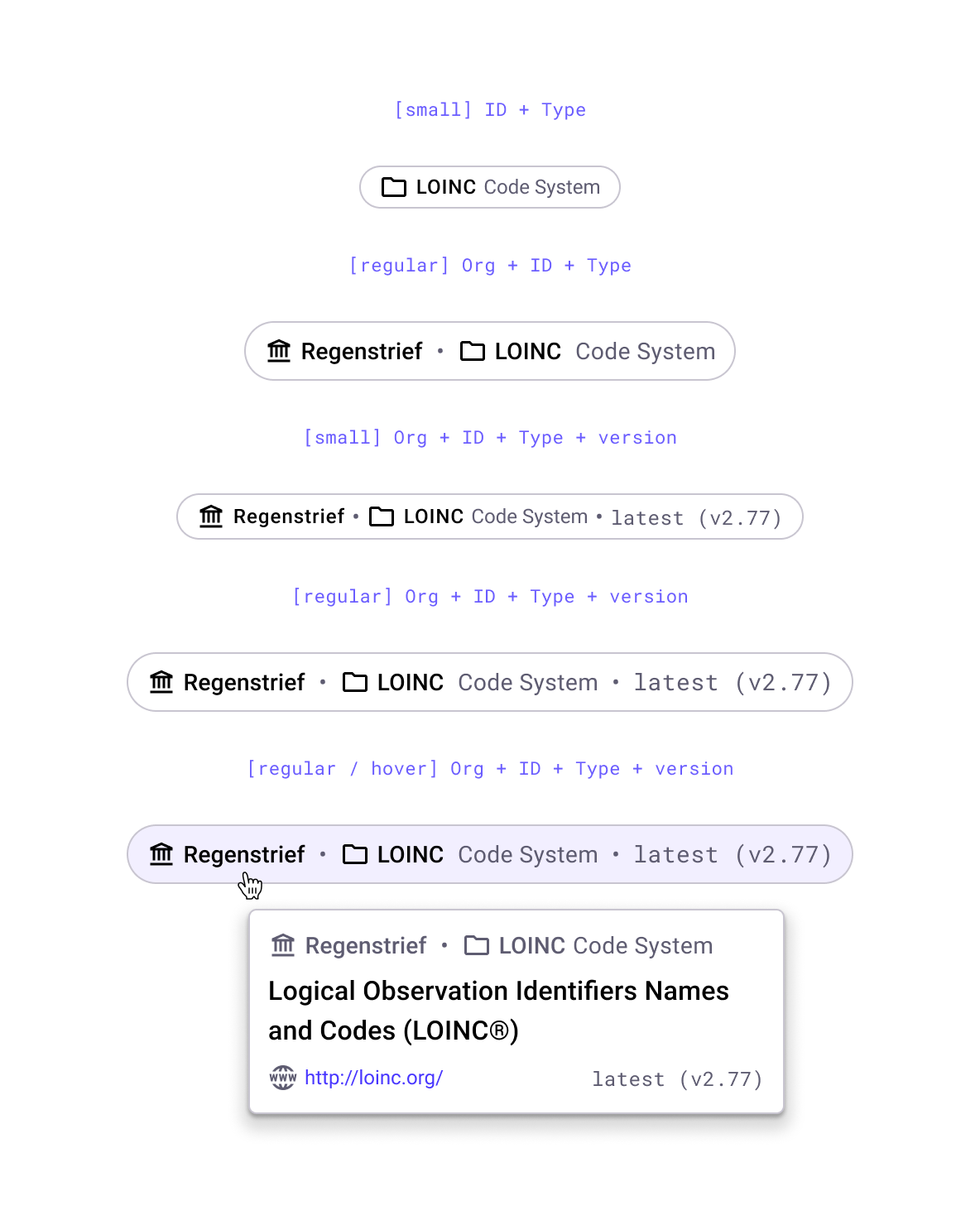

Card designs exist; tooltips and chips aren't implemented for concept/mapping/reference/expansion yet. Associations are present but not hierarchical.

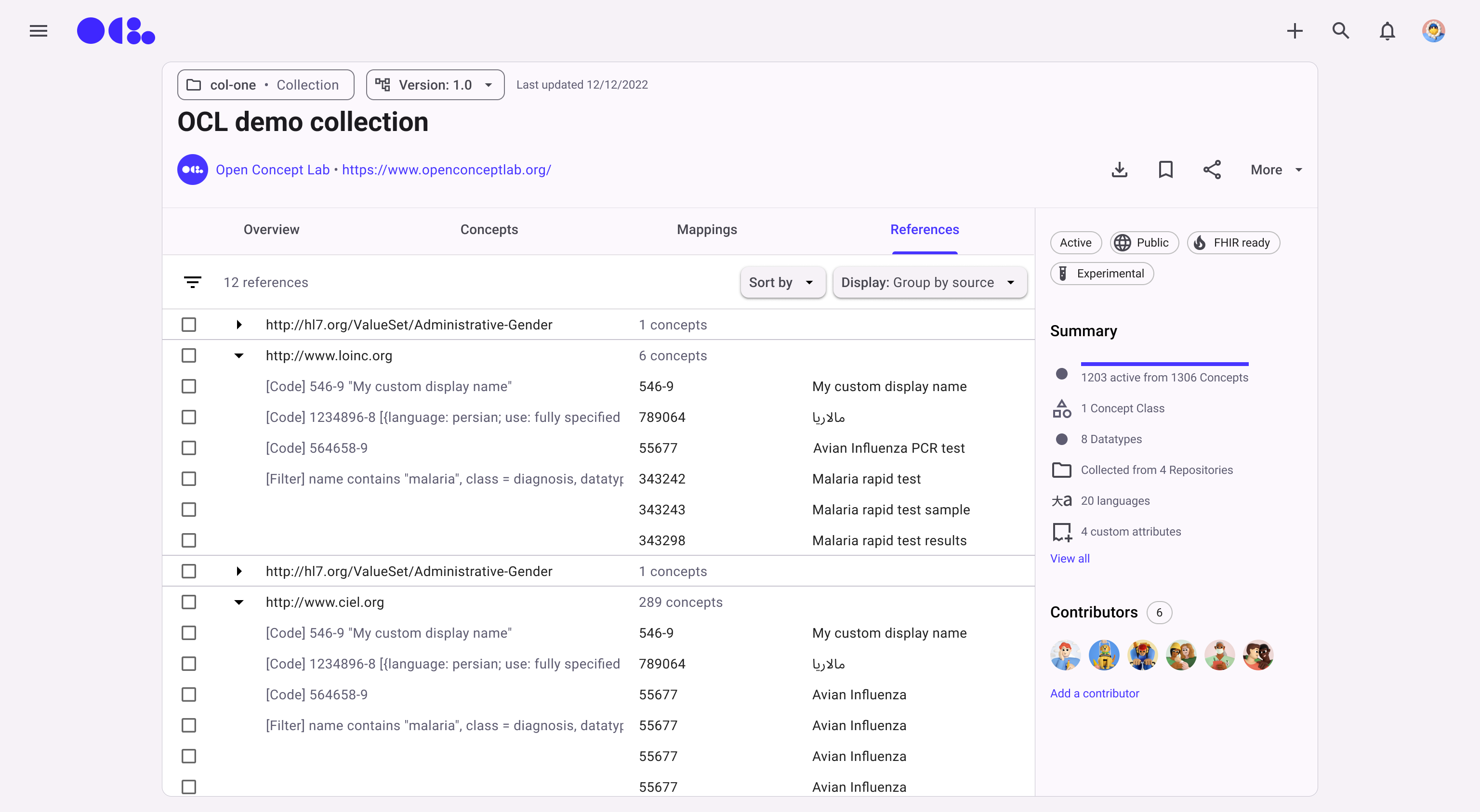

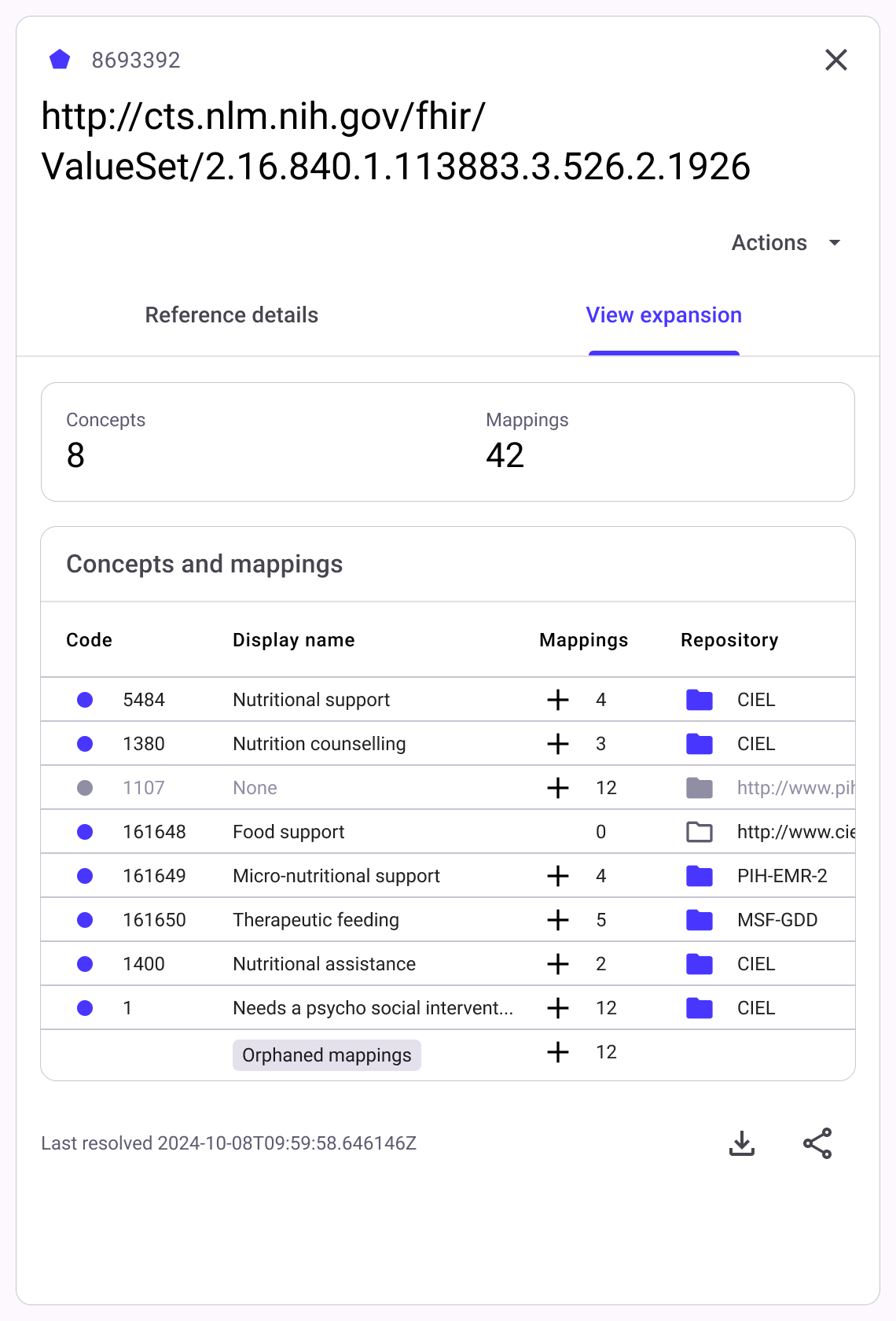

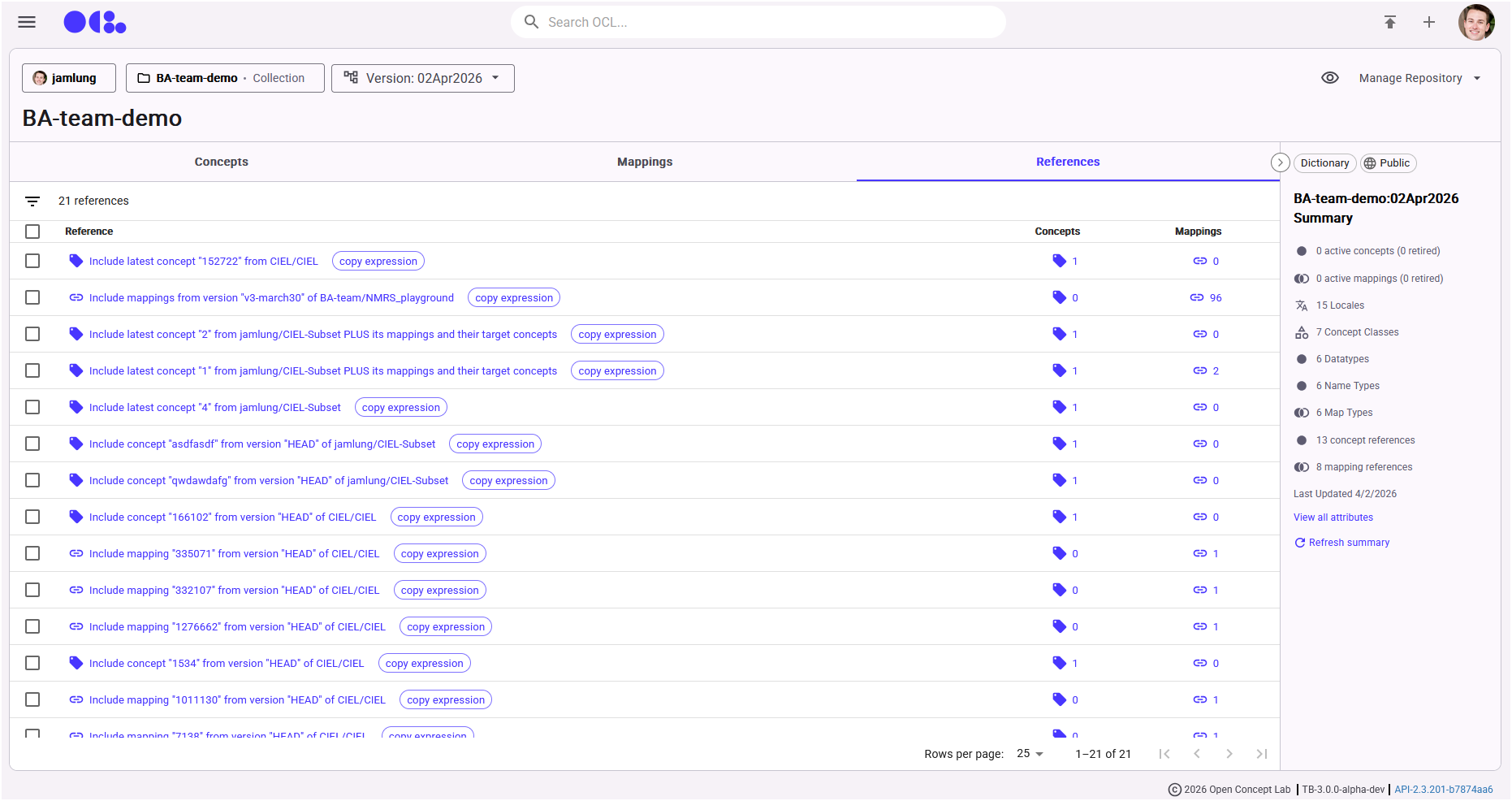

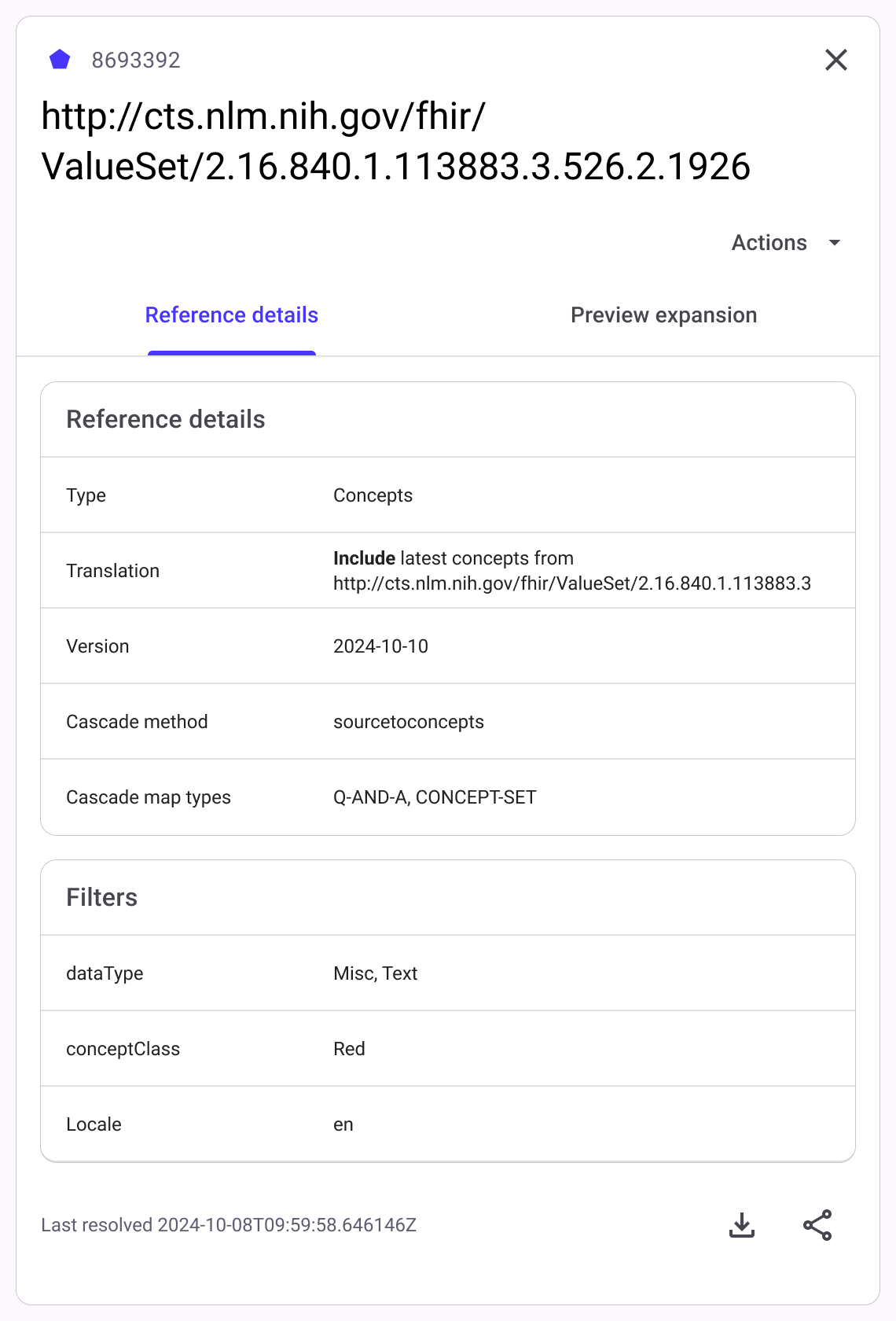

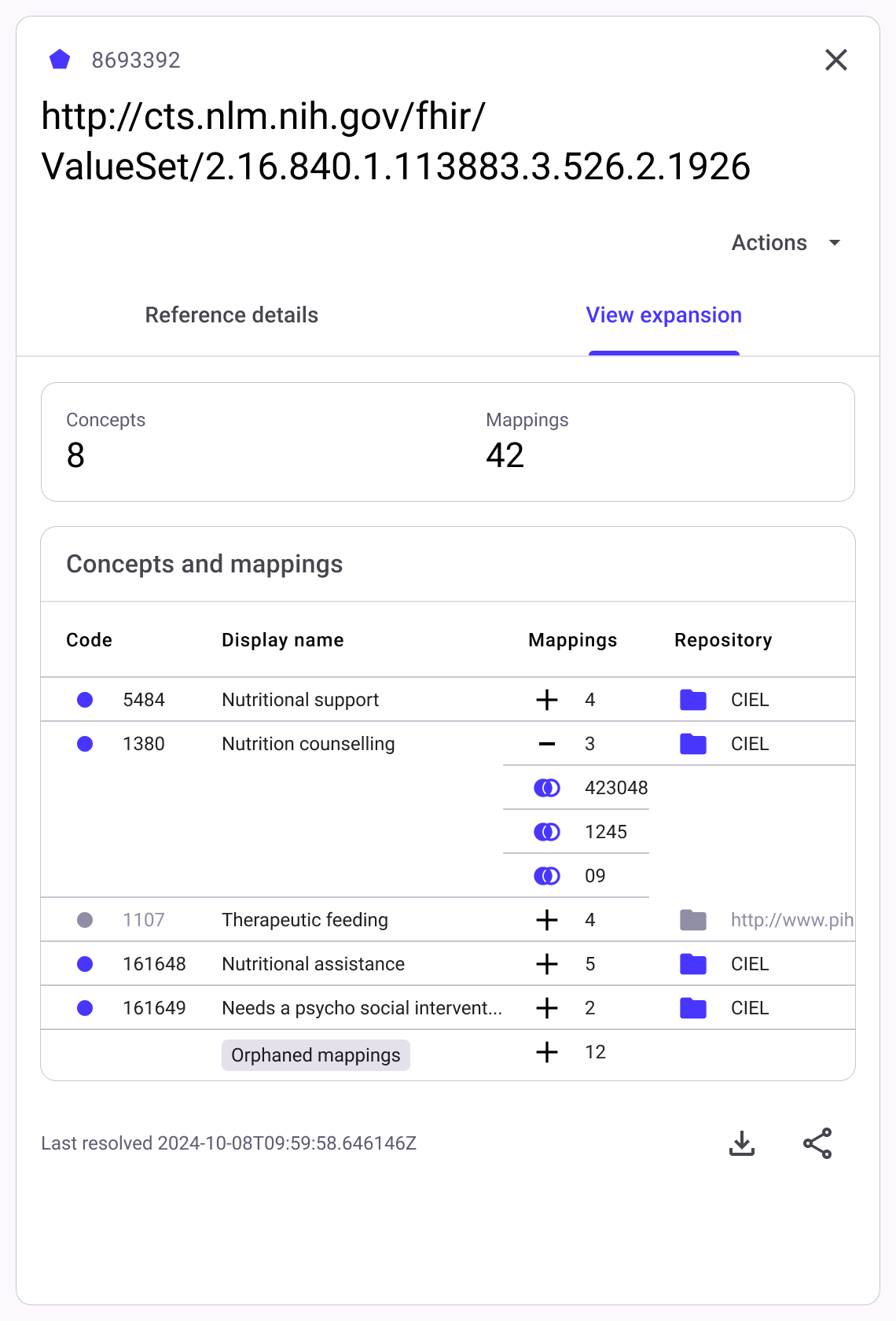

References & Expansions
Biggest gap in the design system. None of these are implemented. See README for open decisions on collection versions and expansions UX.

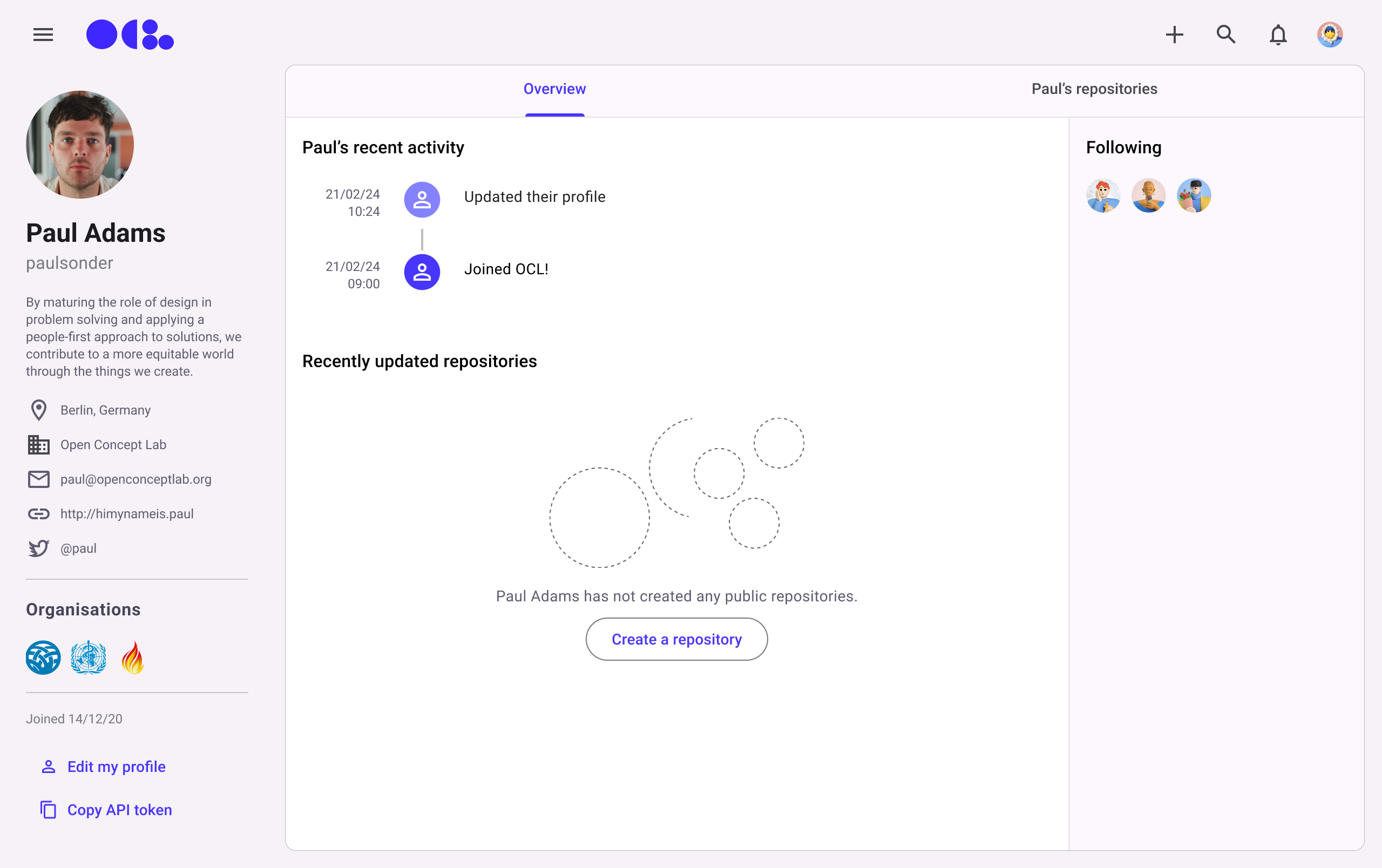

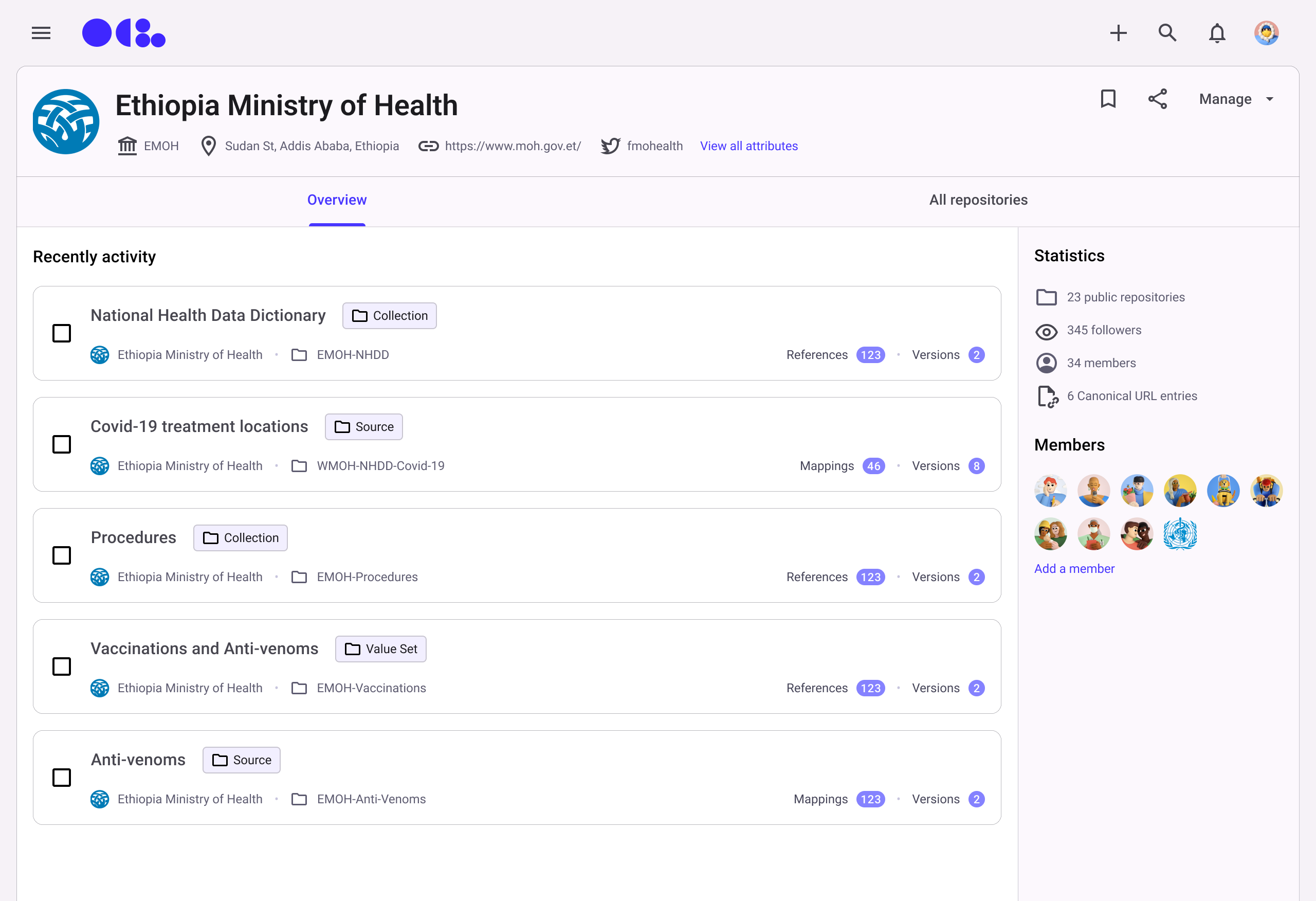

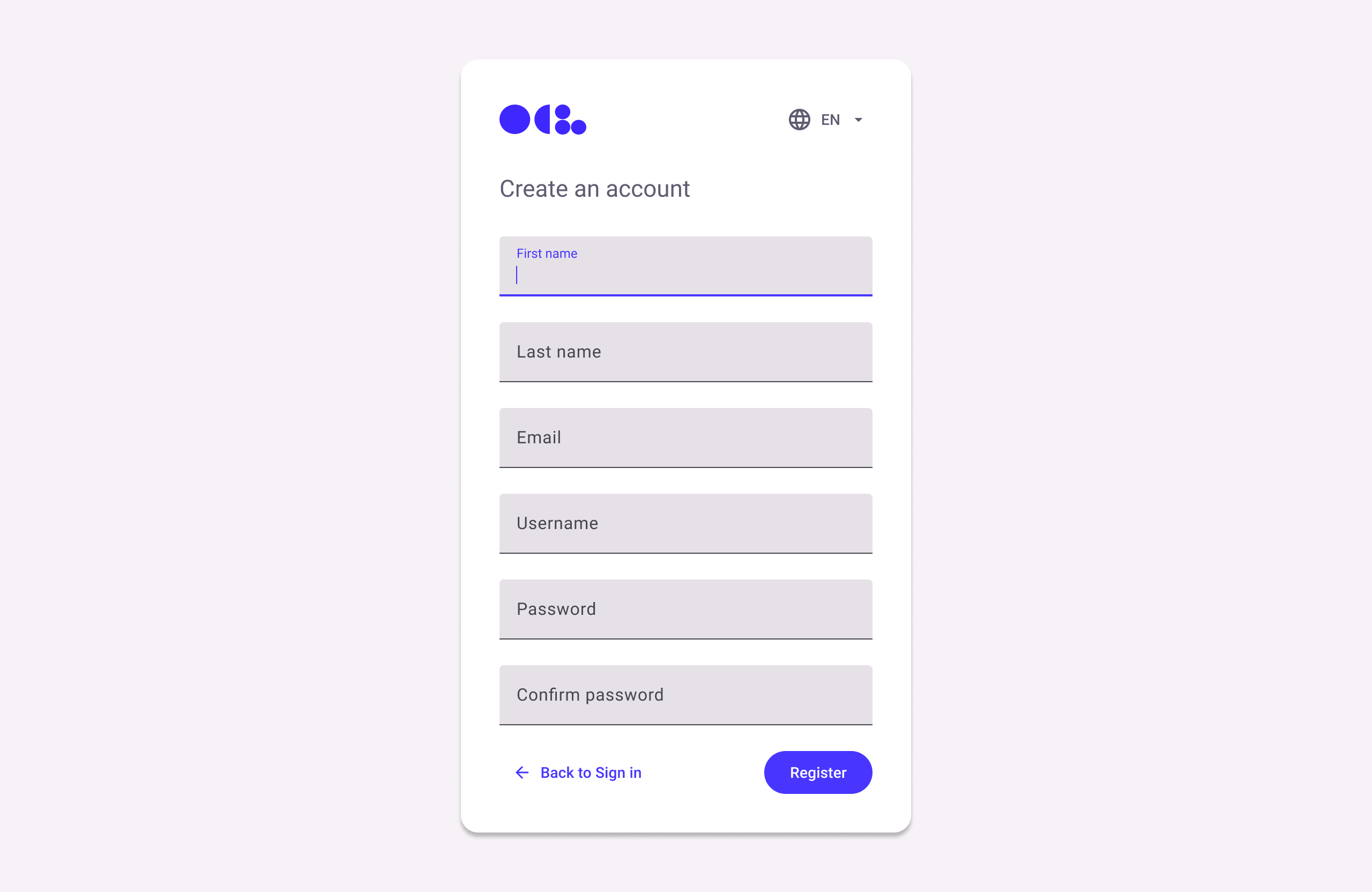

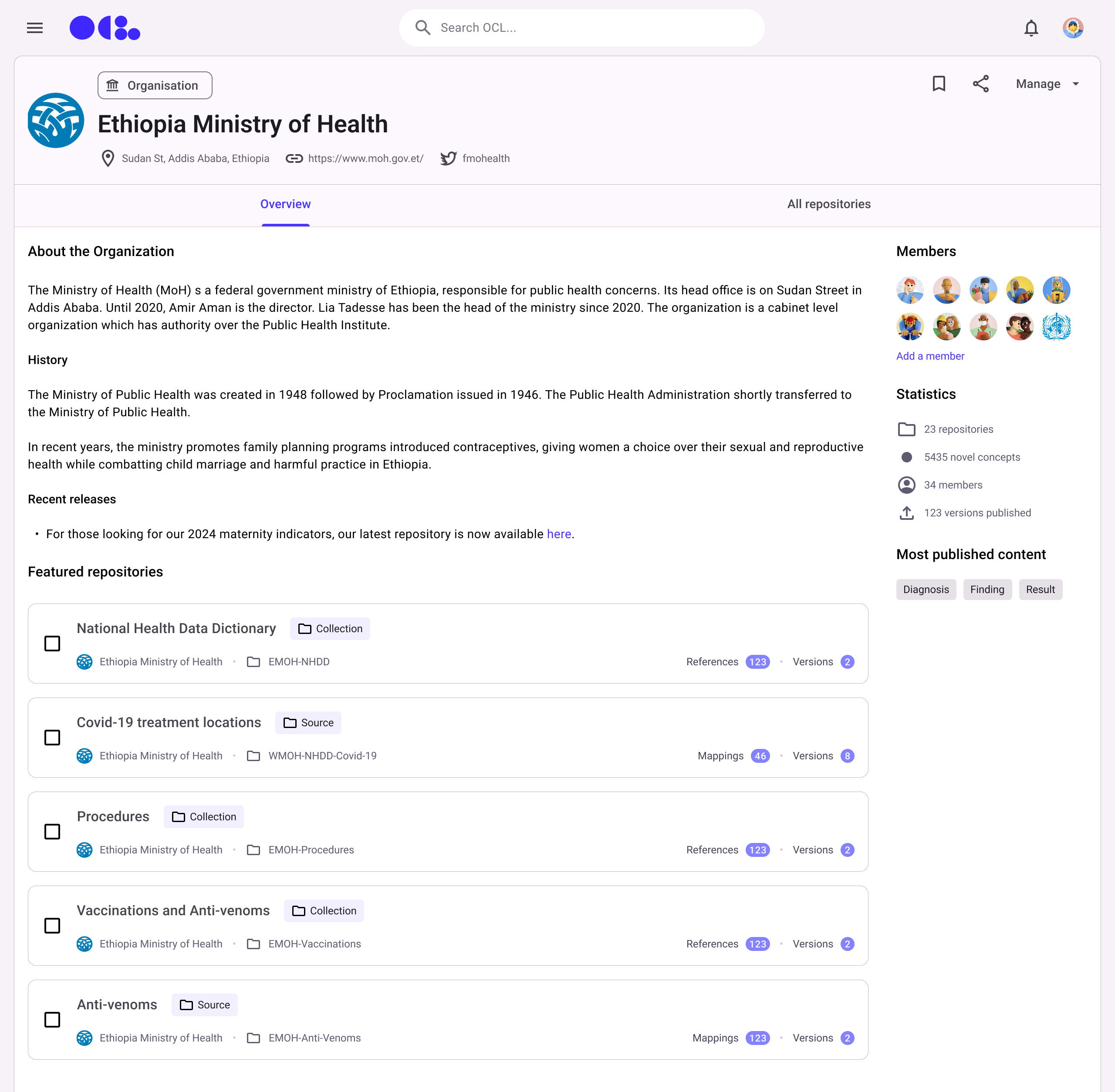

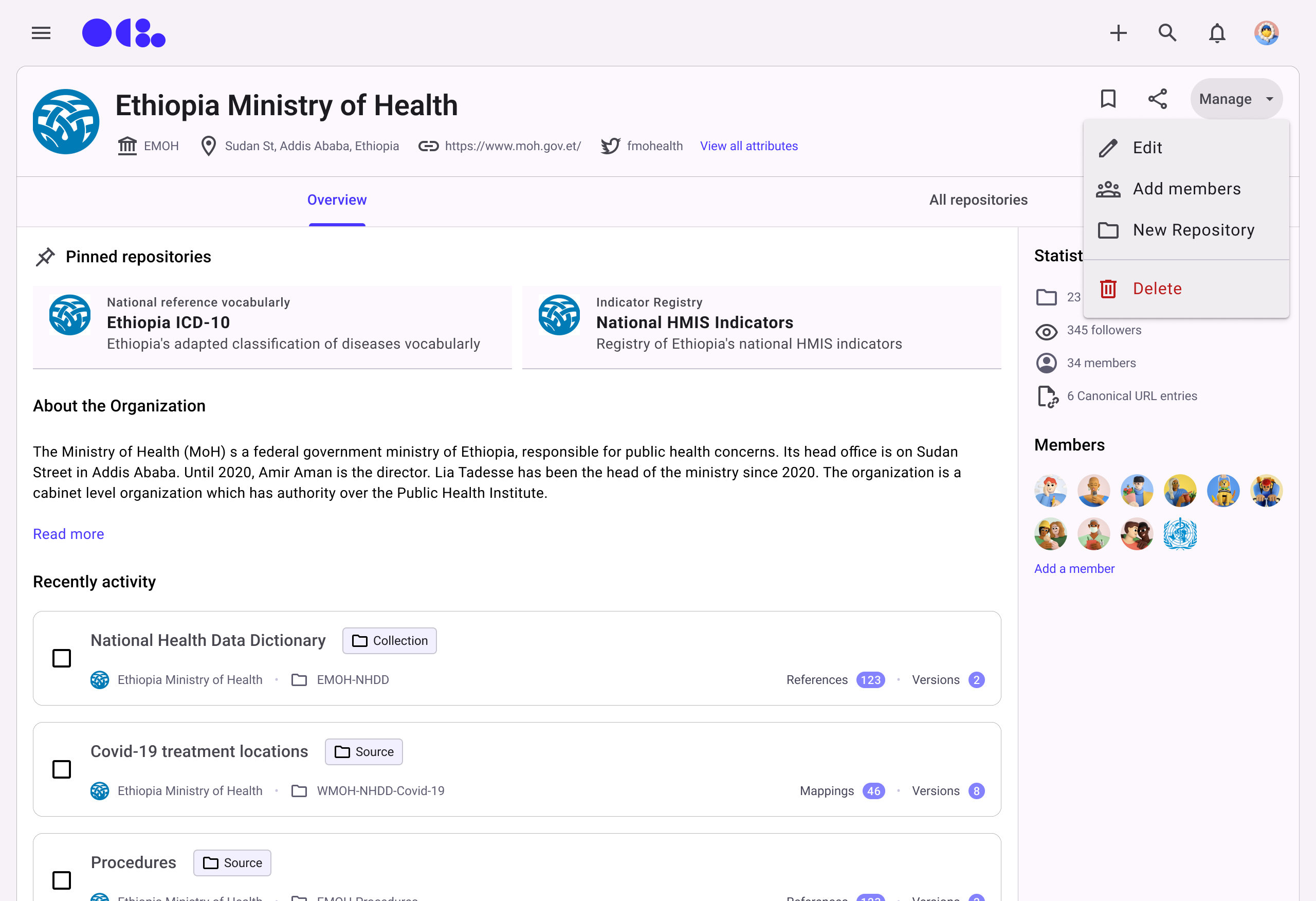

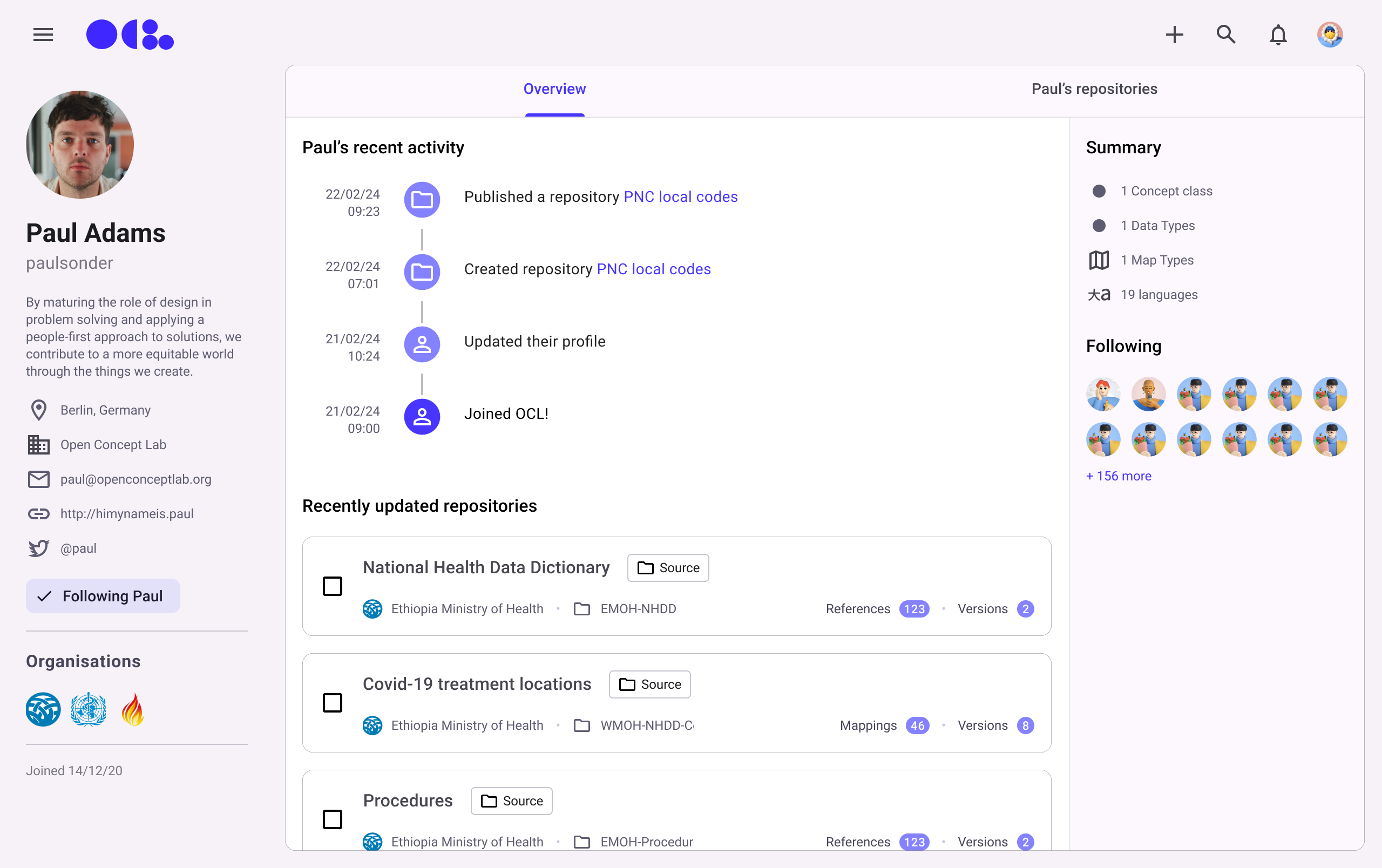

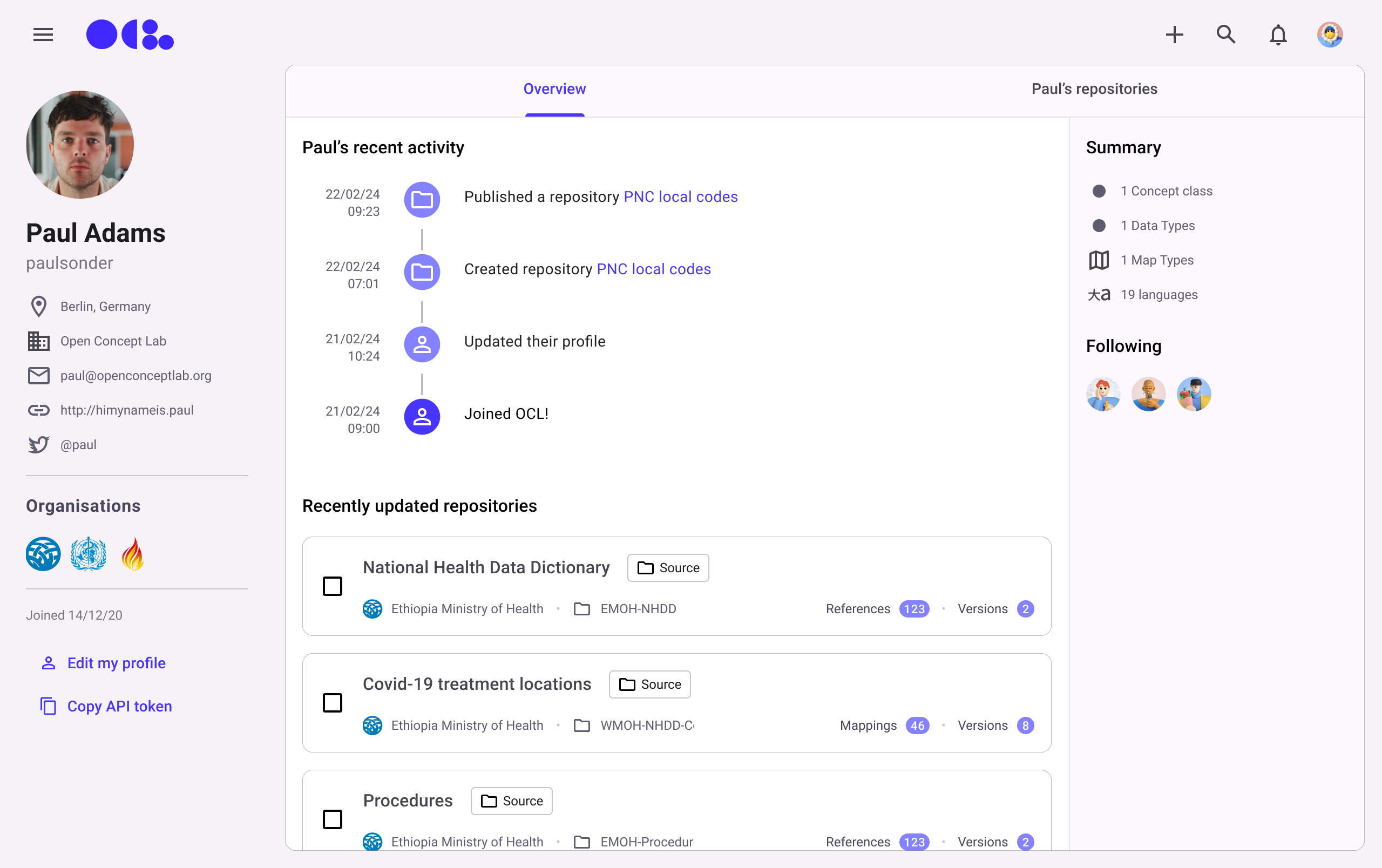

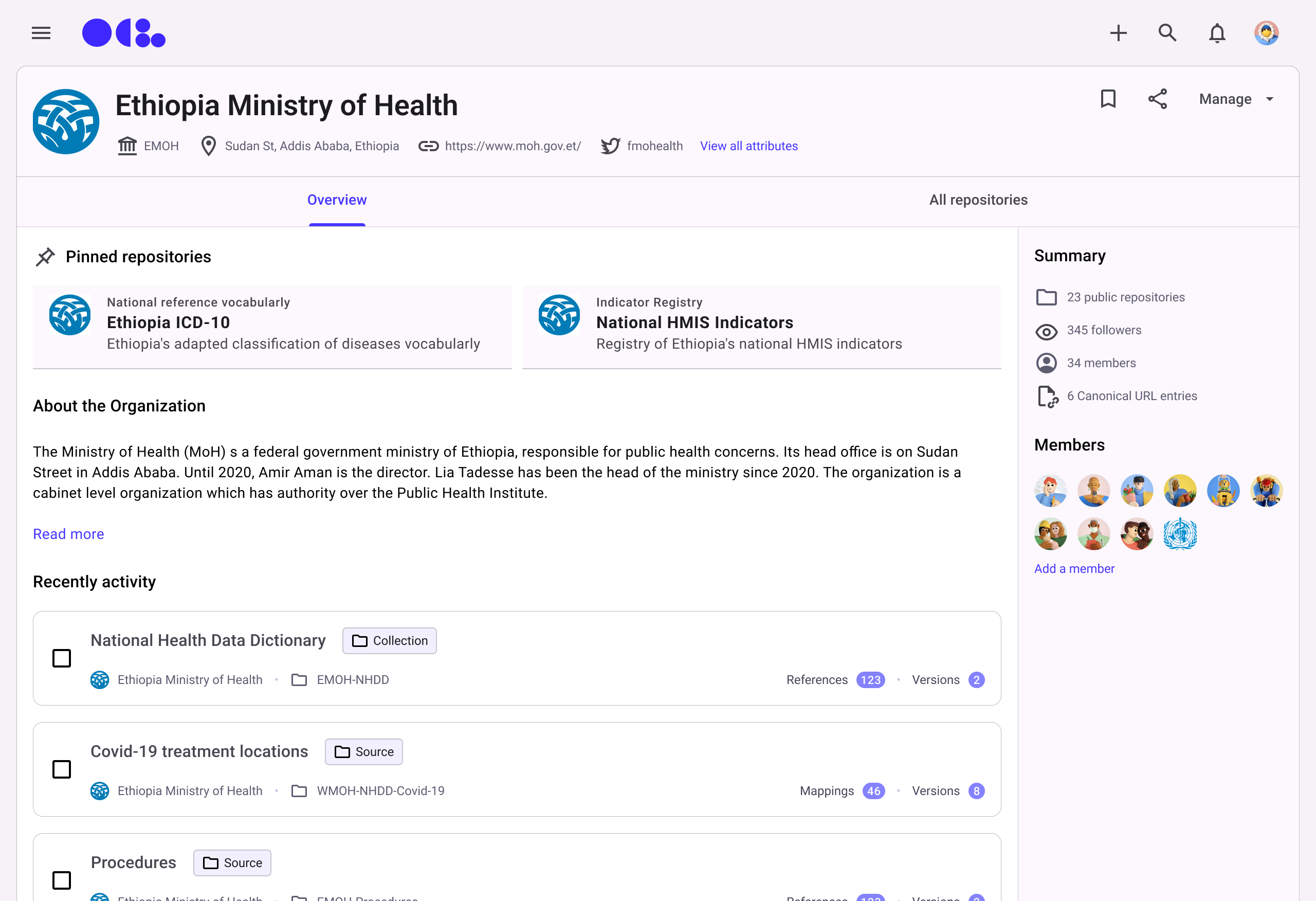

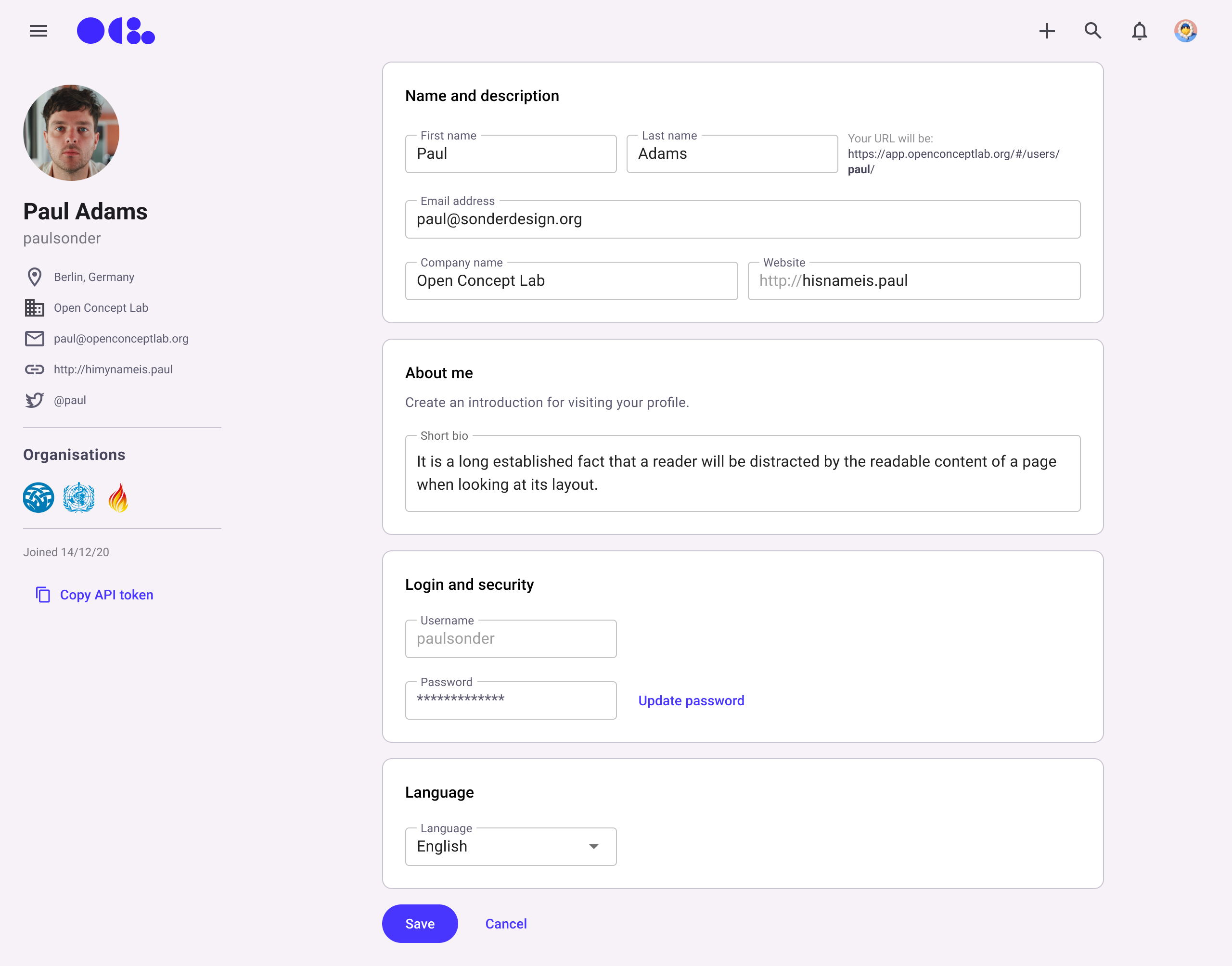

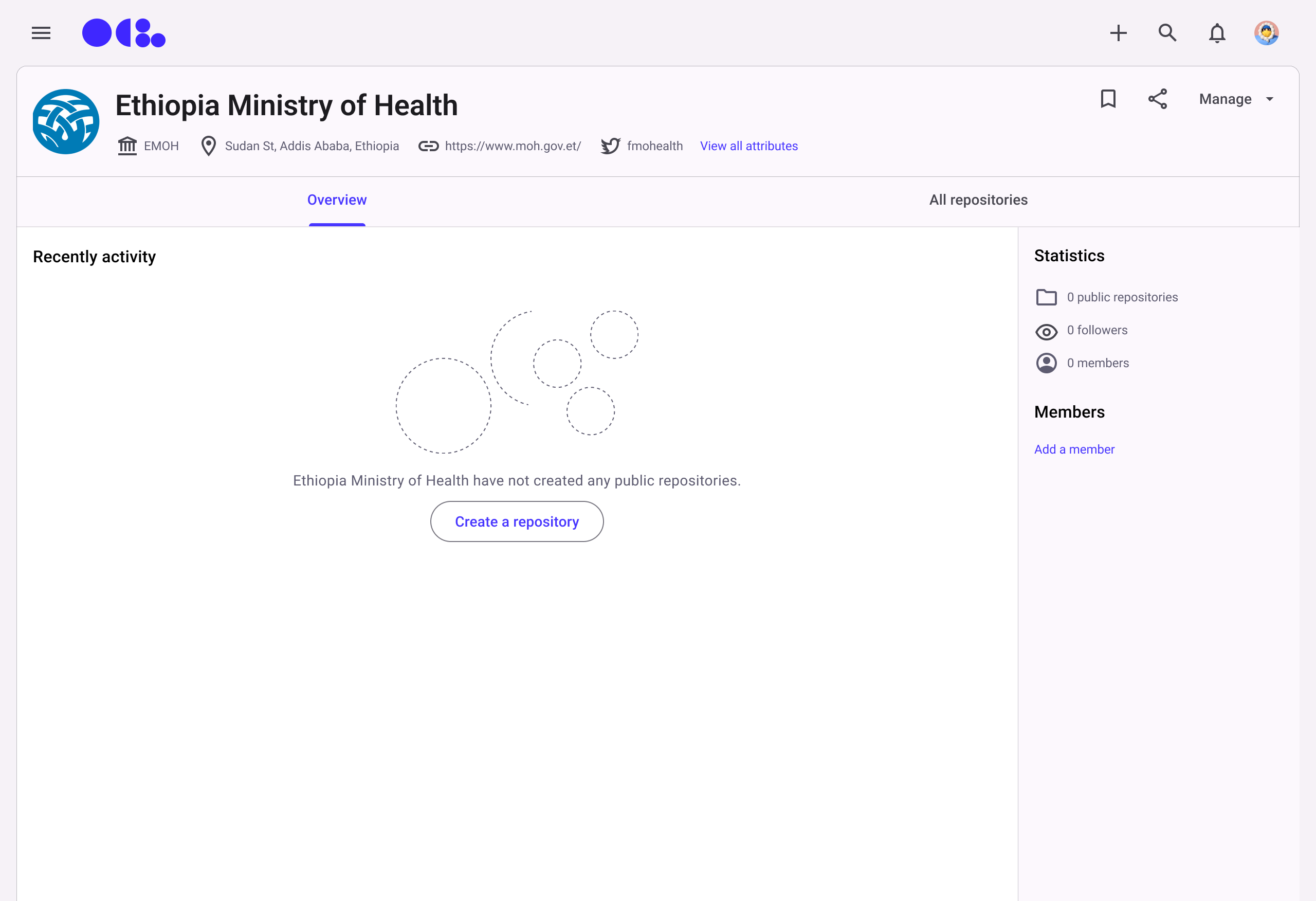

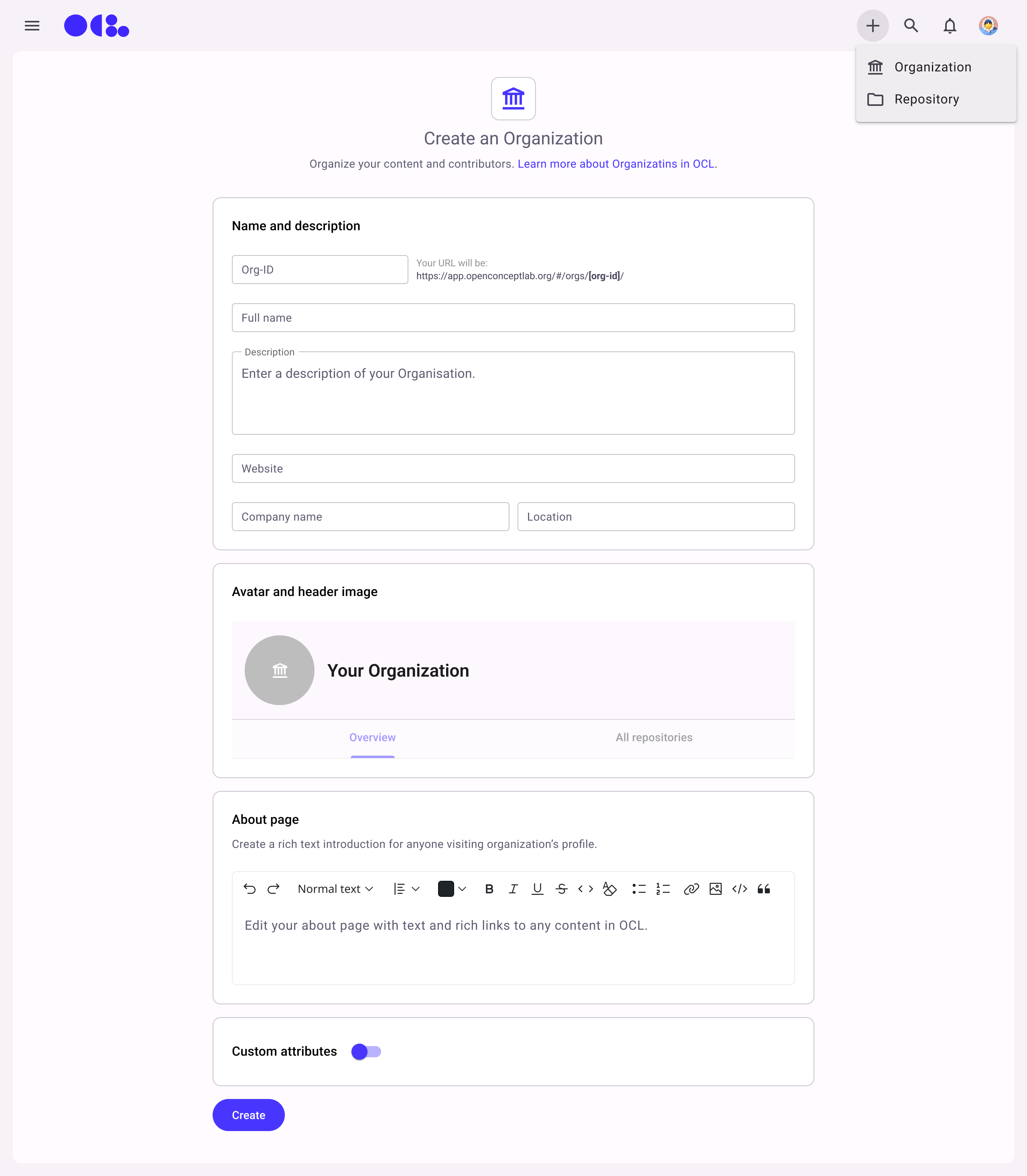

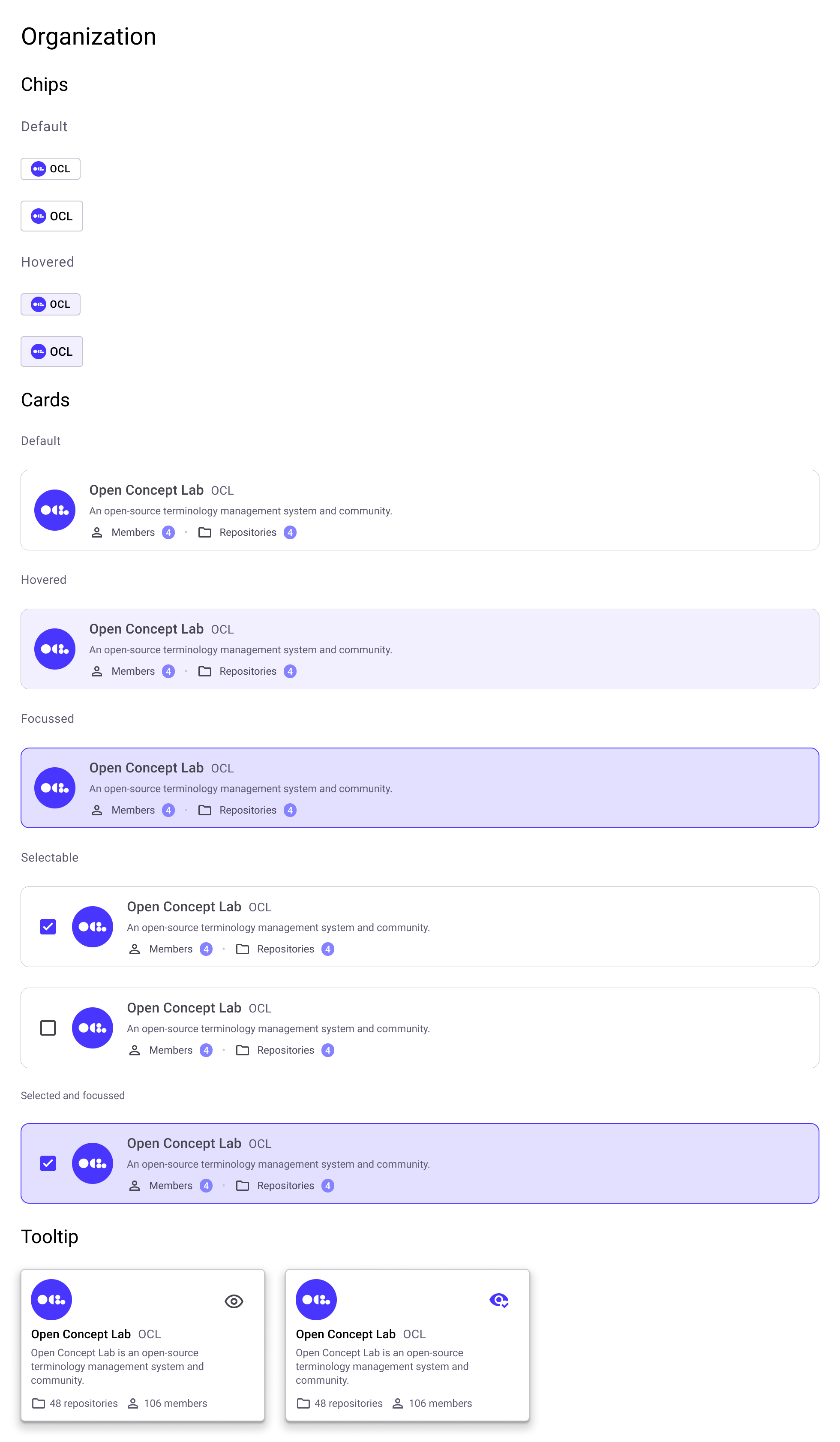

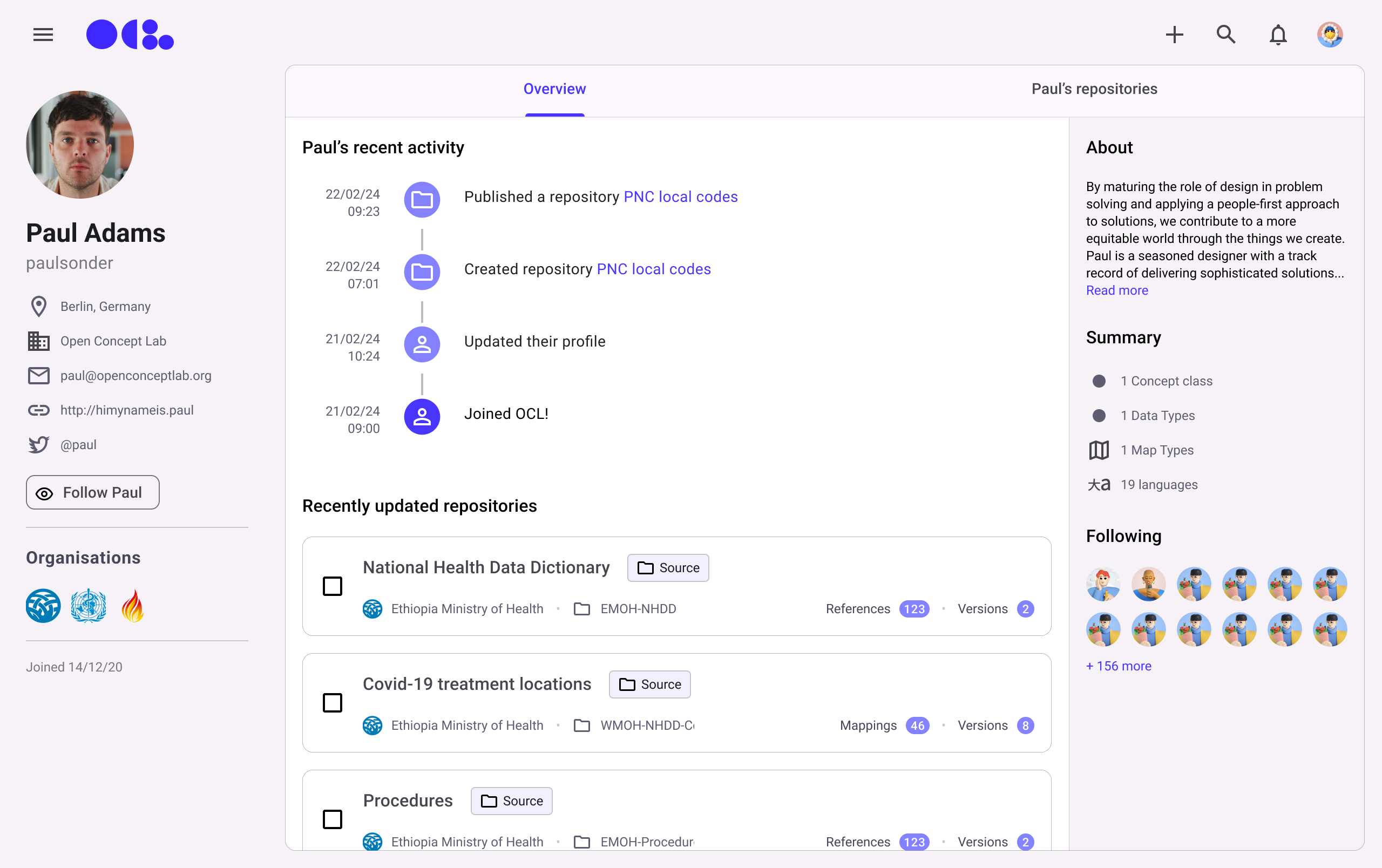

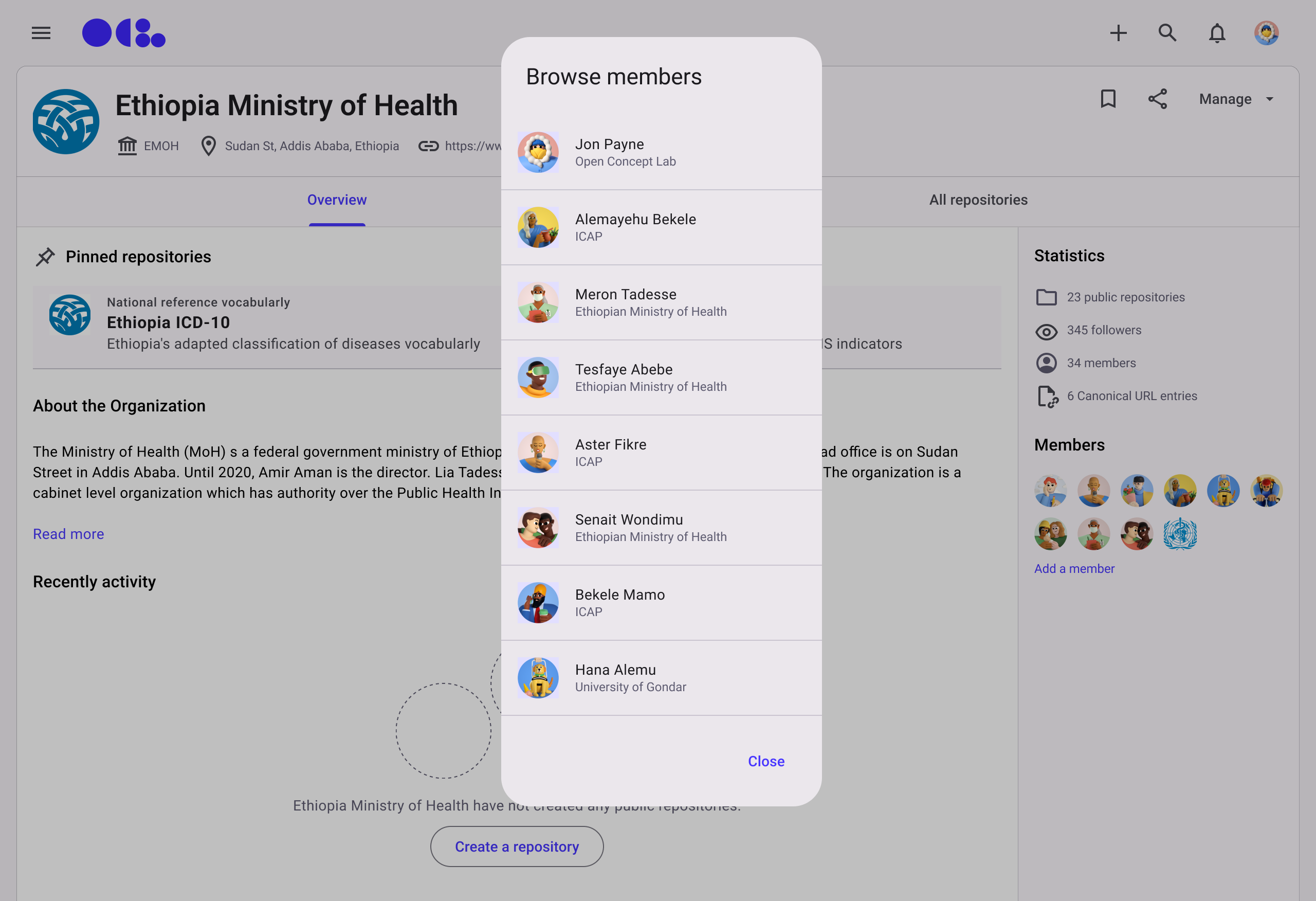

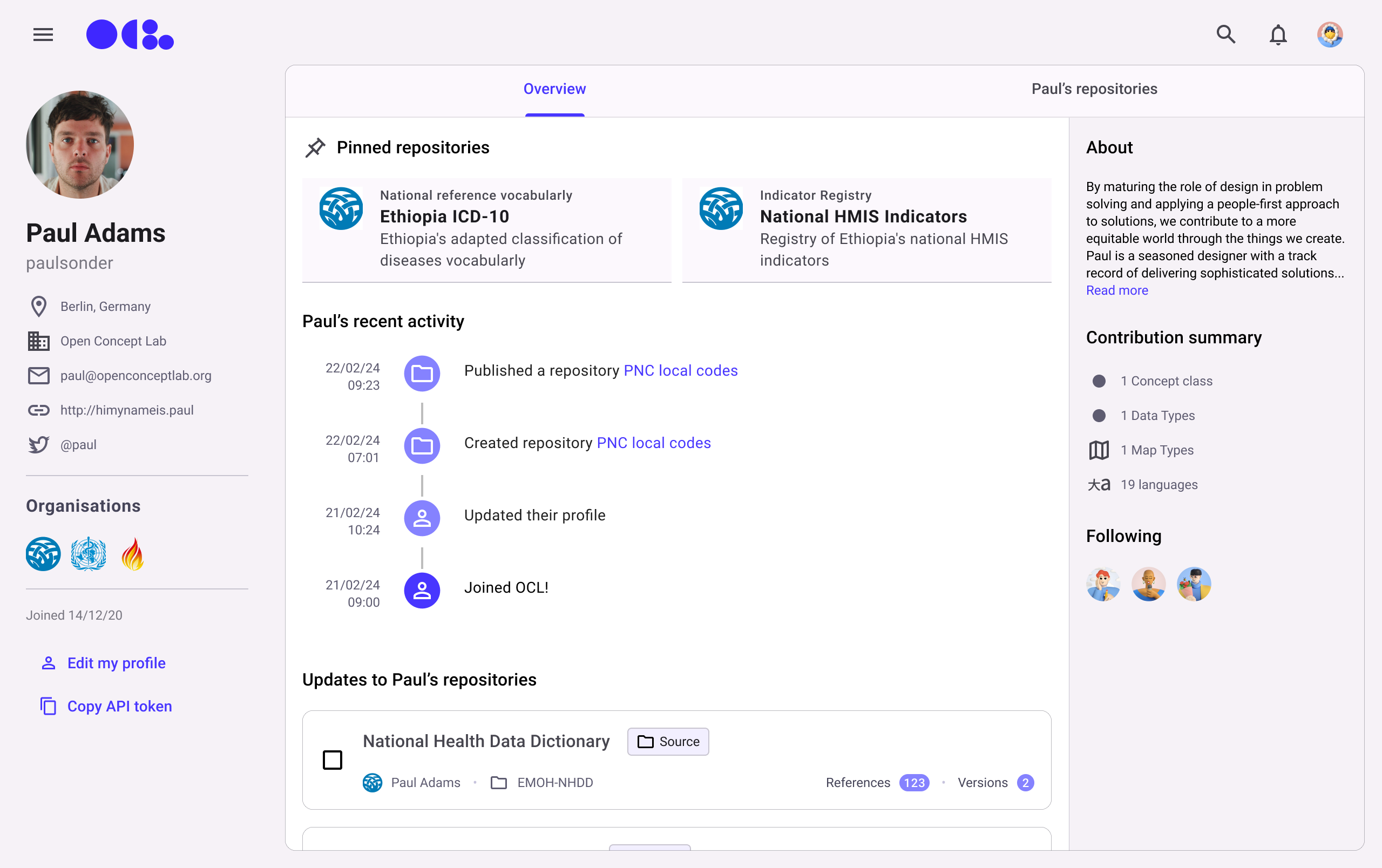

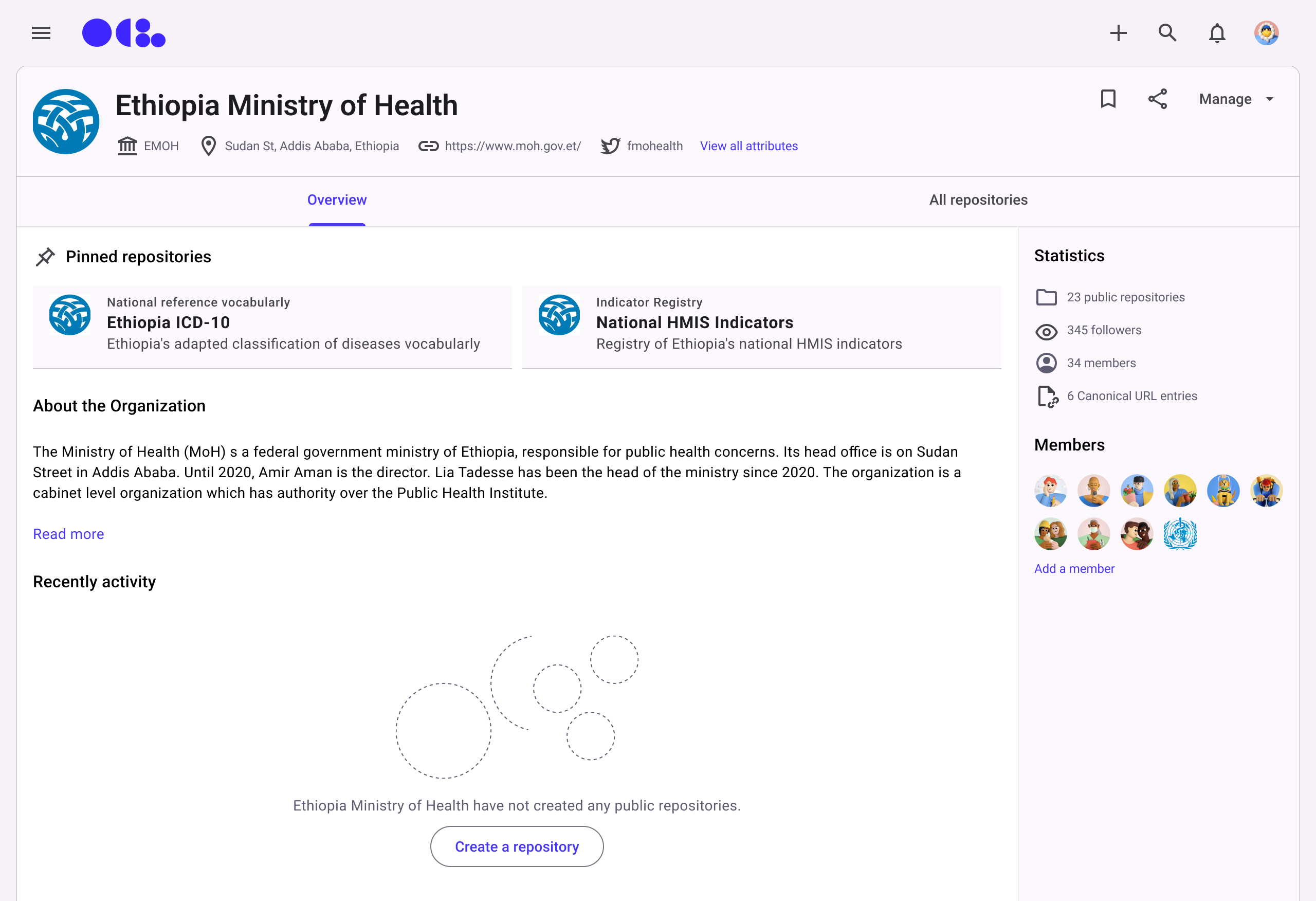

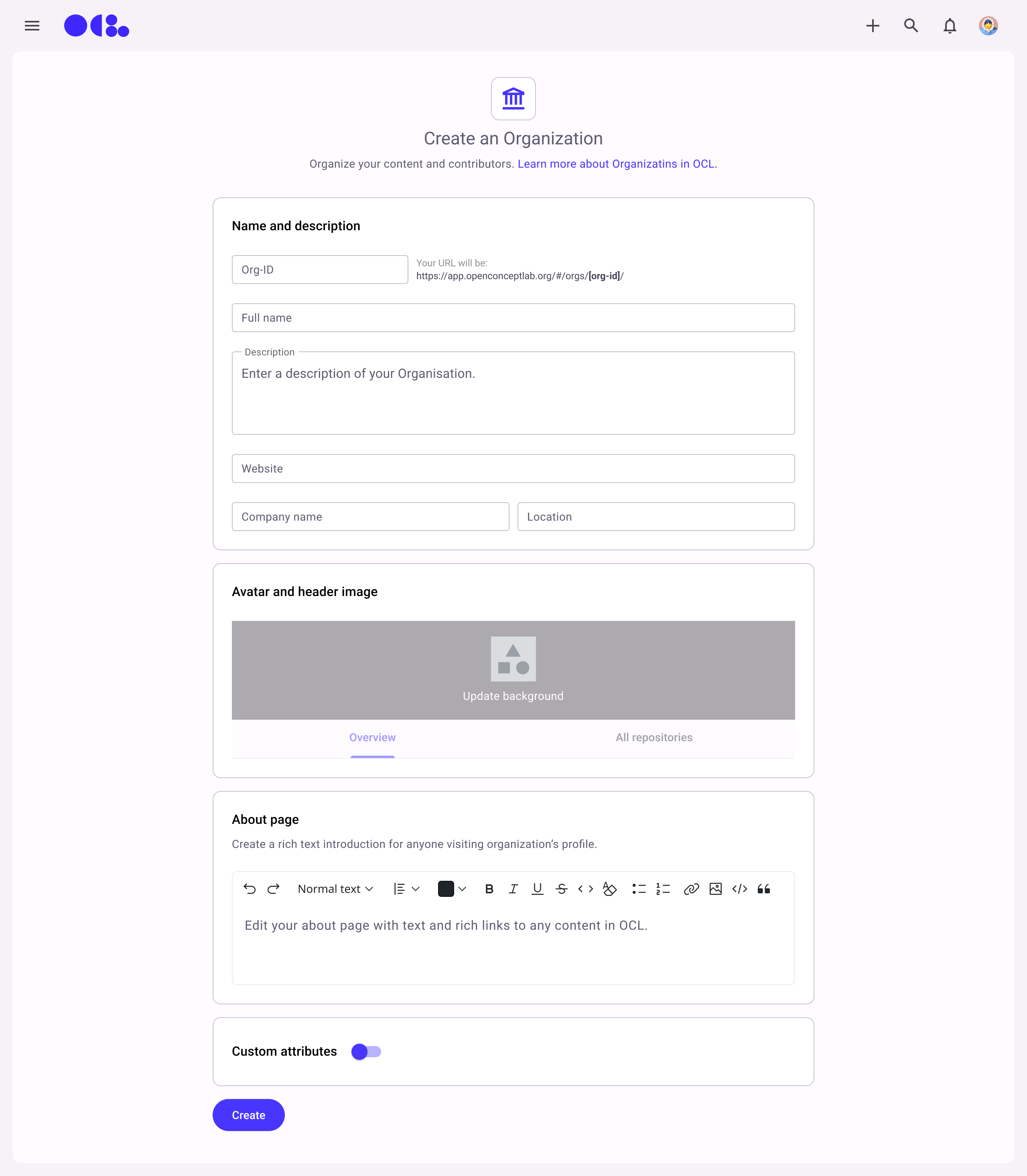

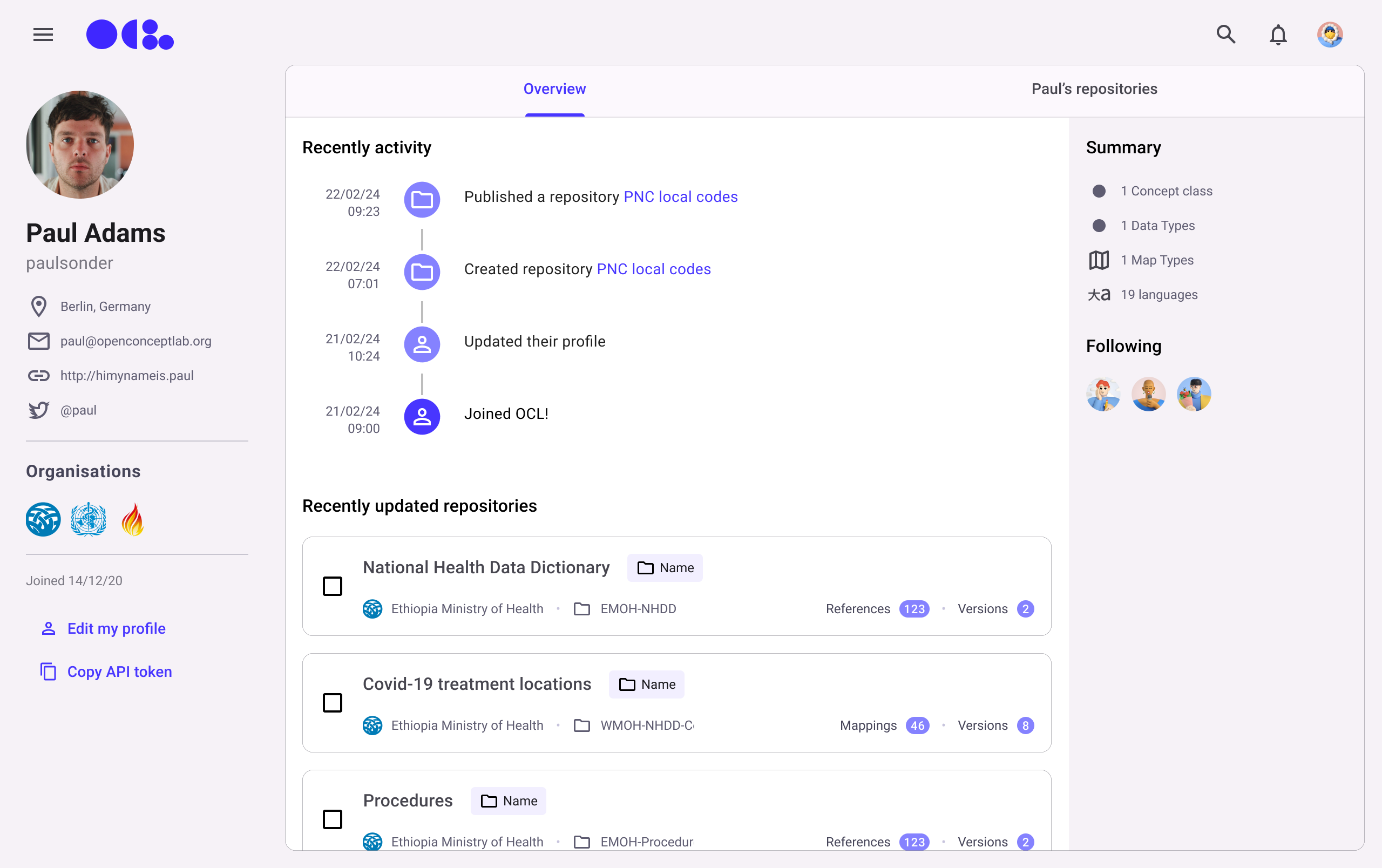

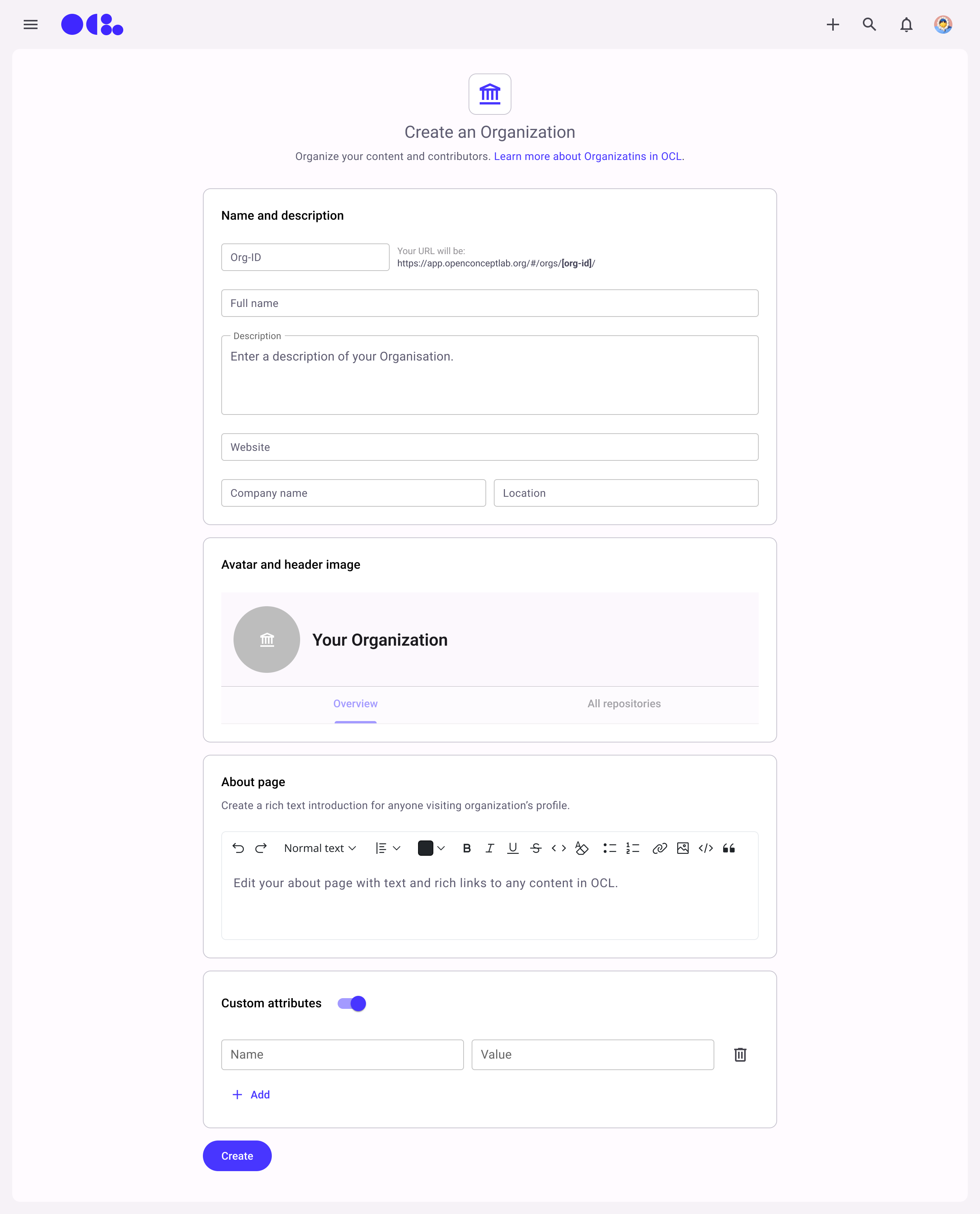

Organization & User

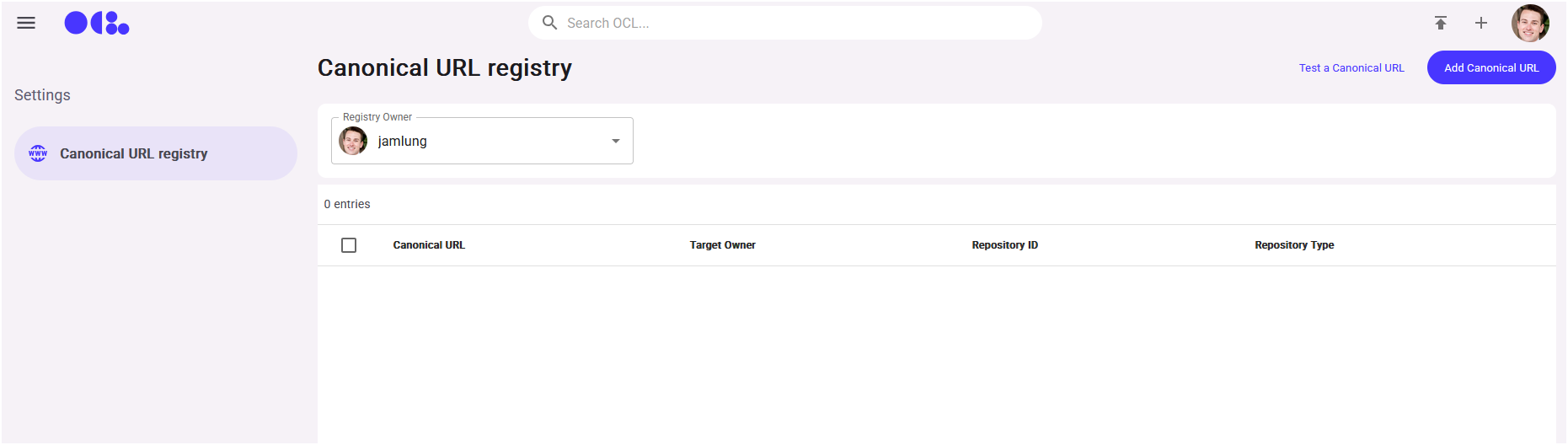

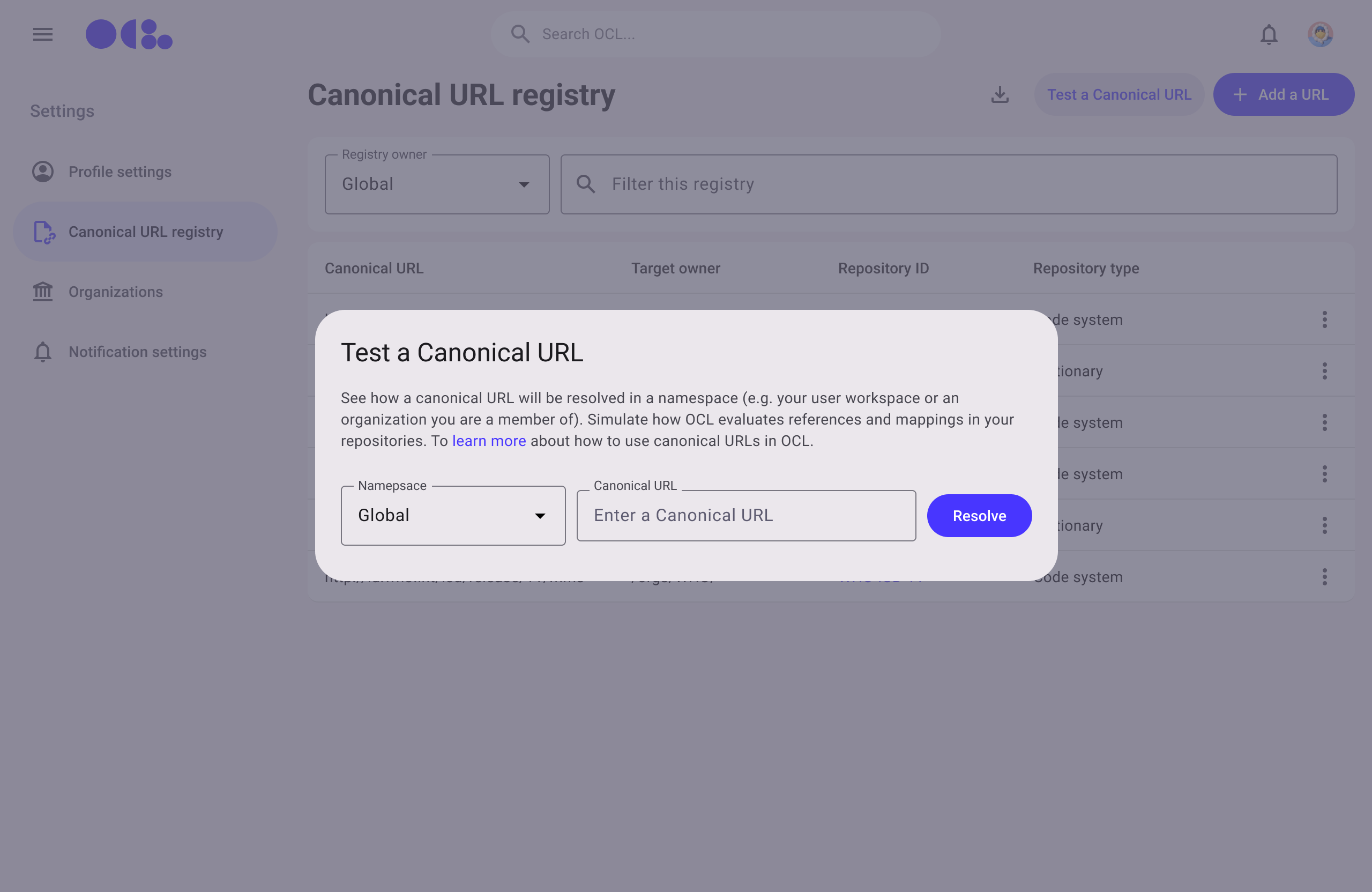

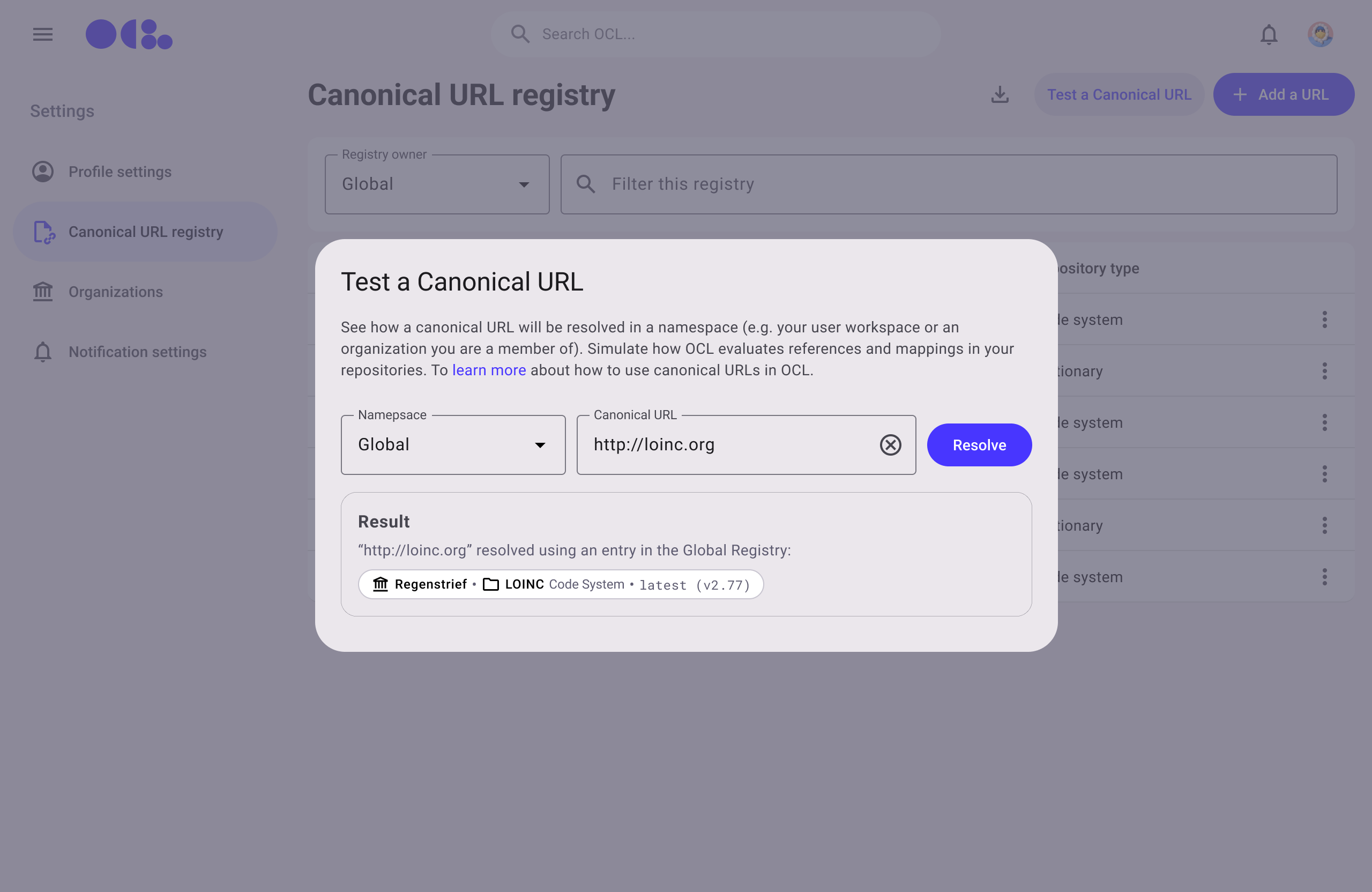

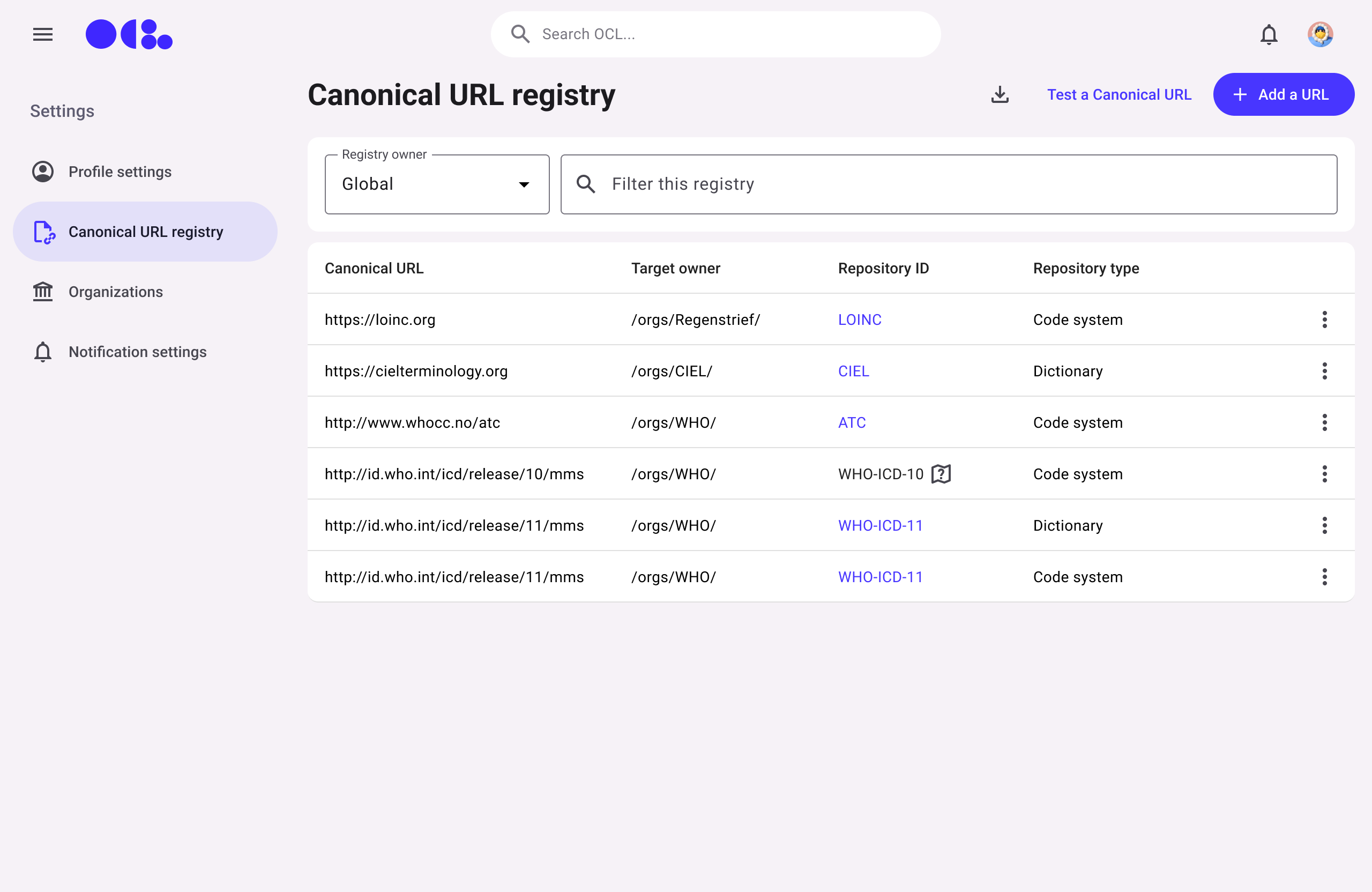

Settings

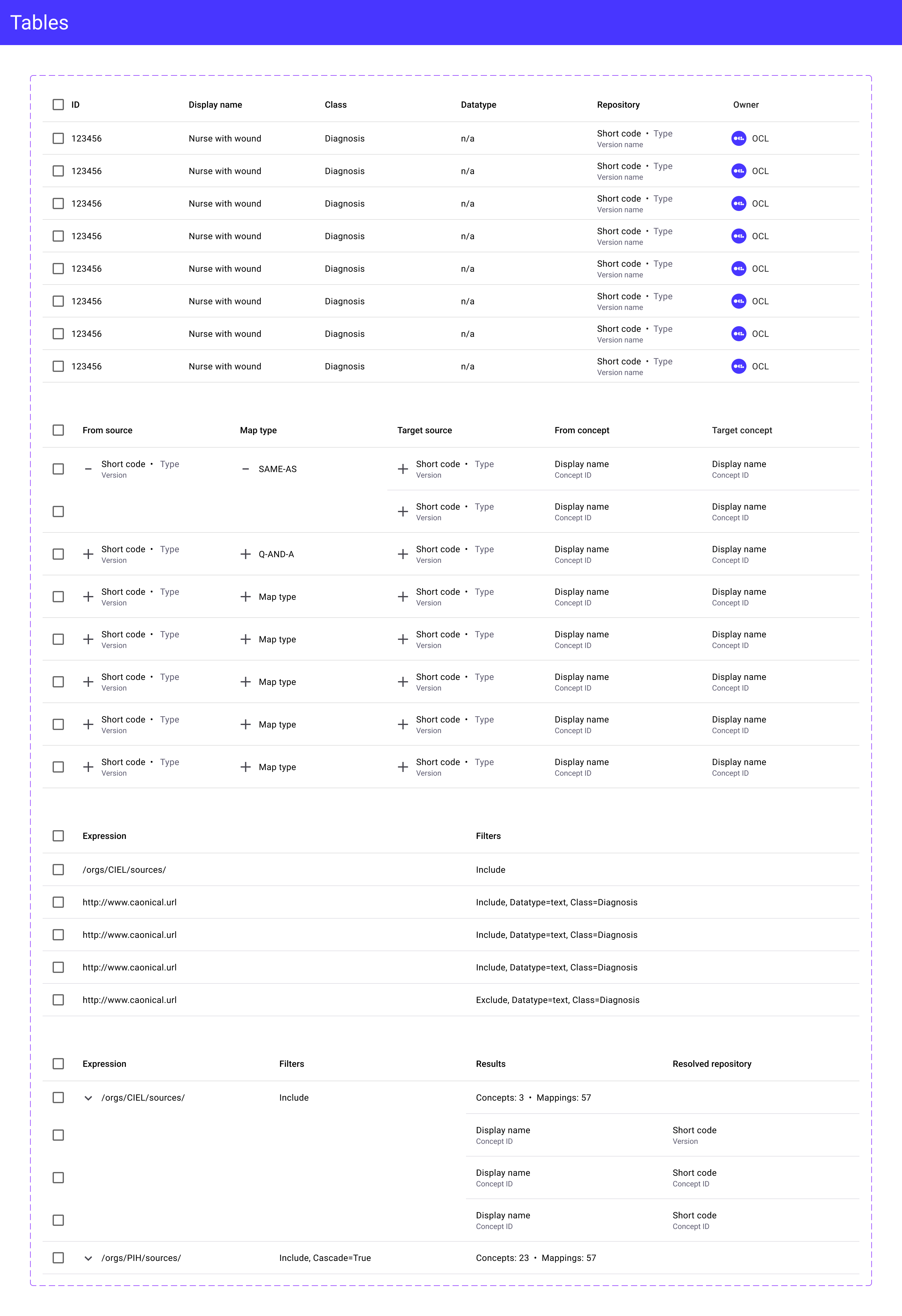

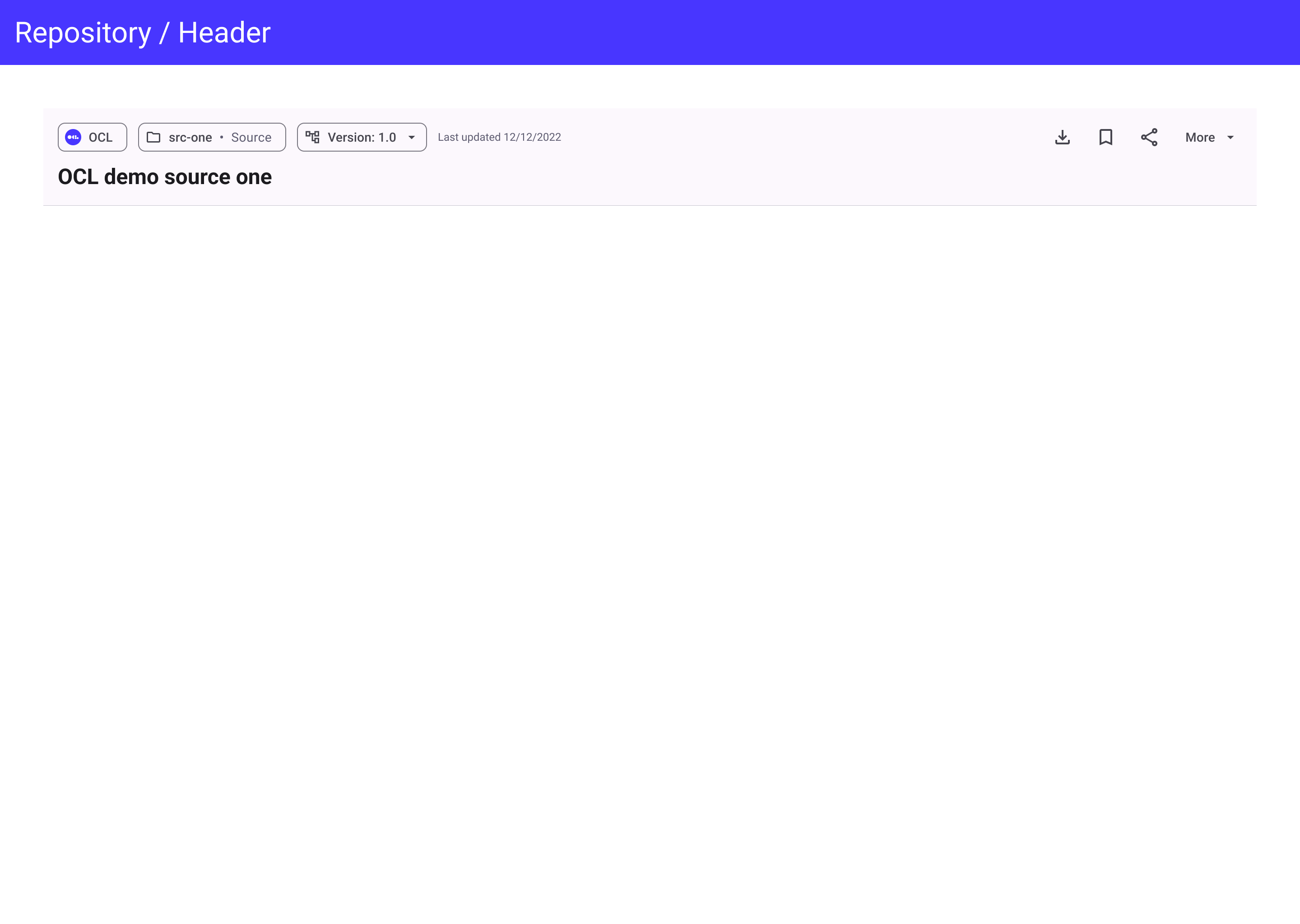

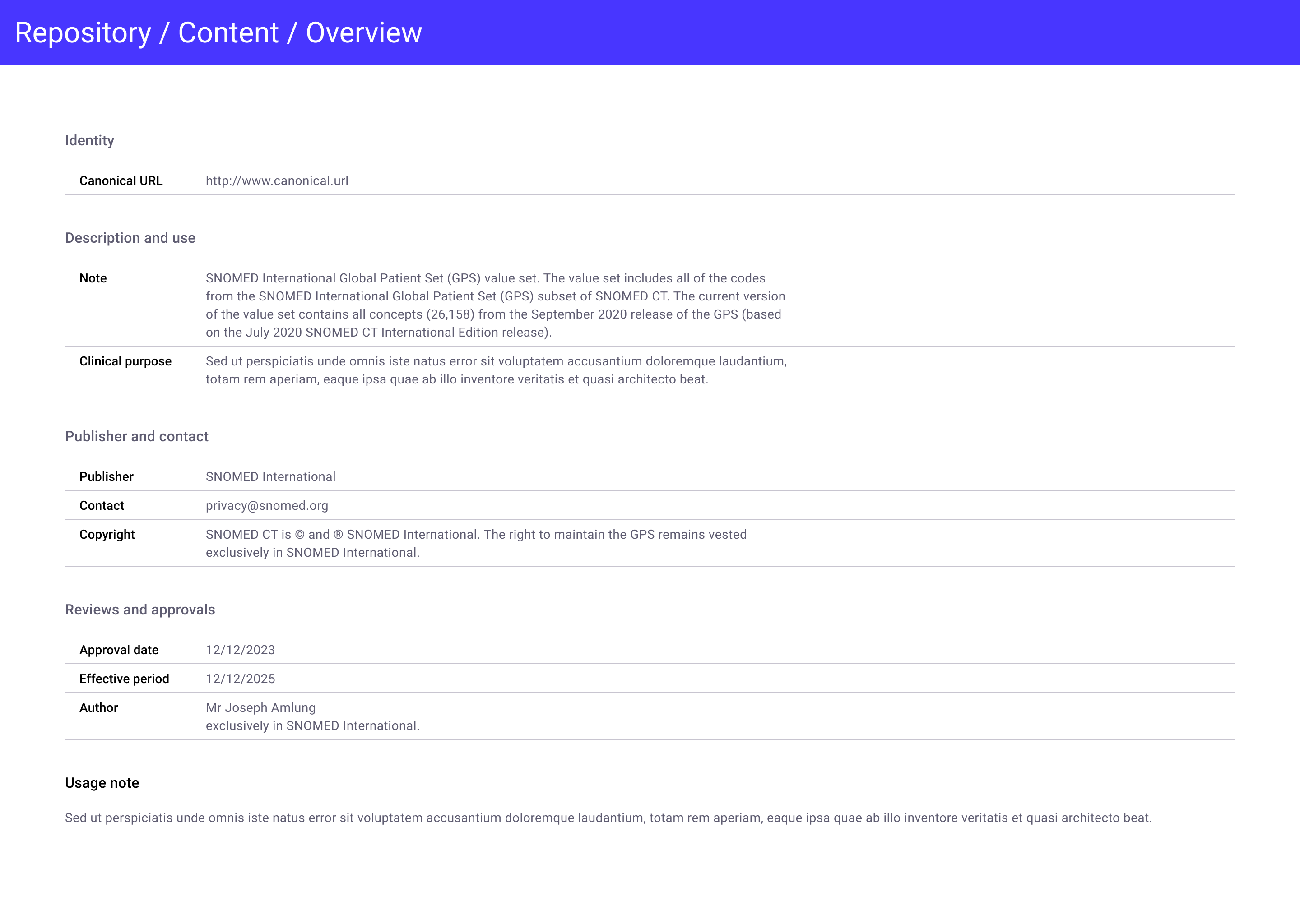

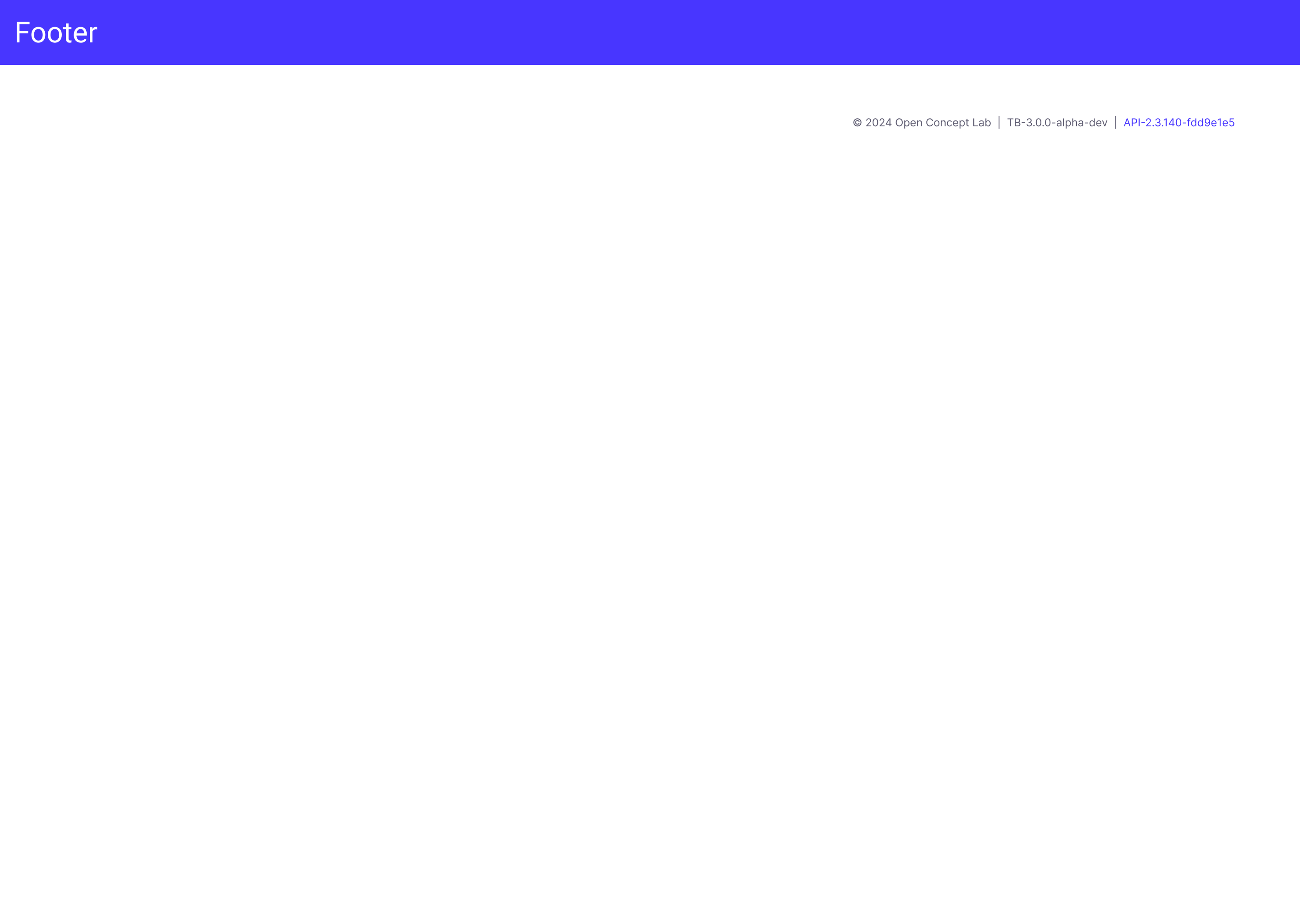

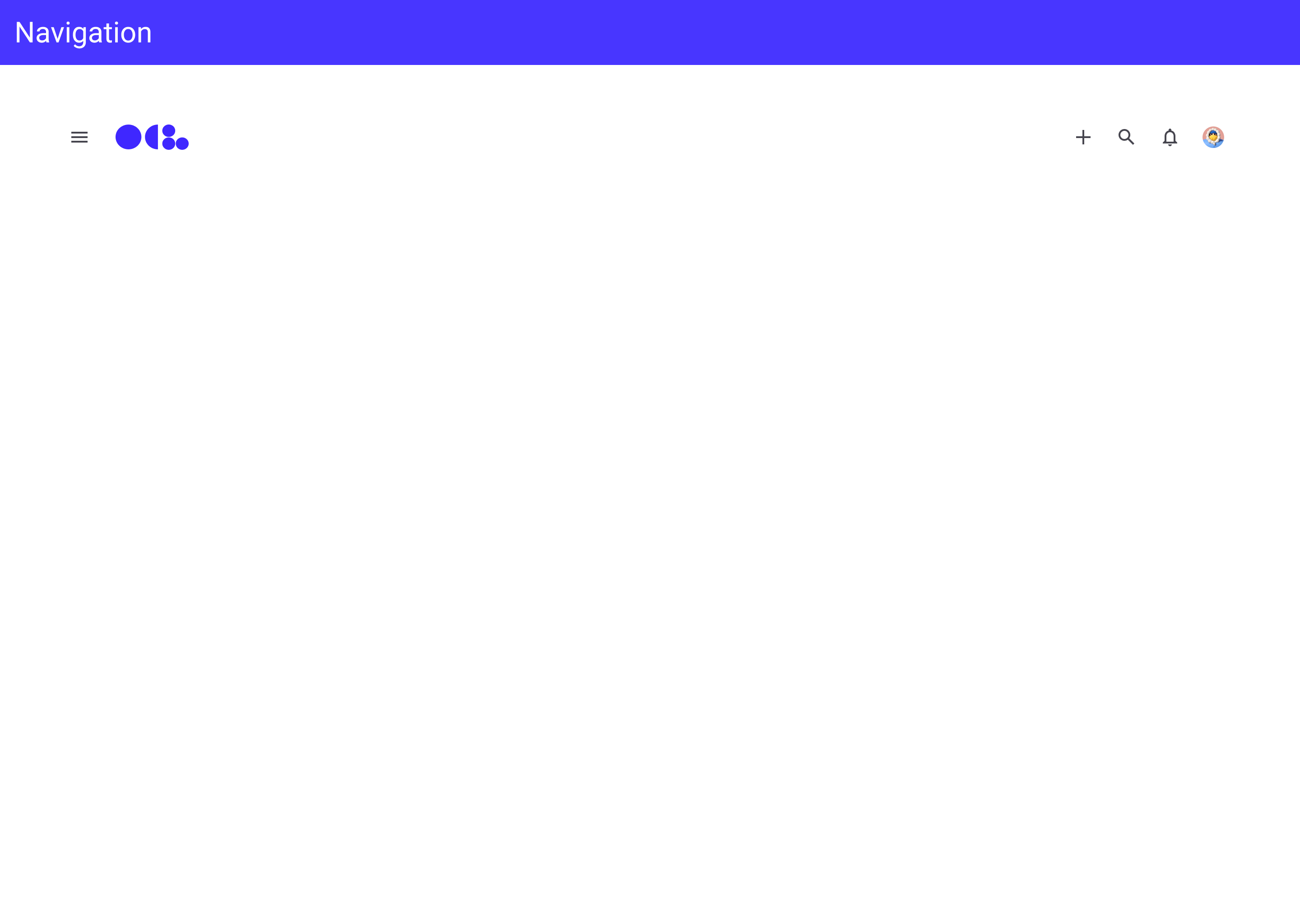

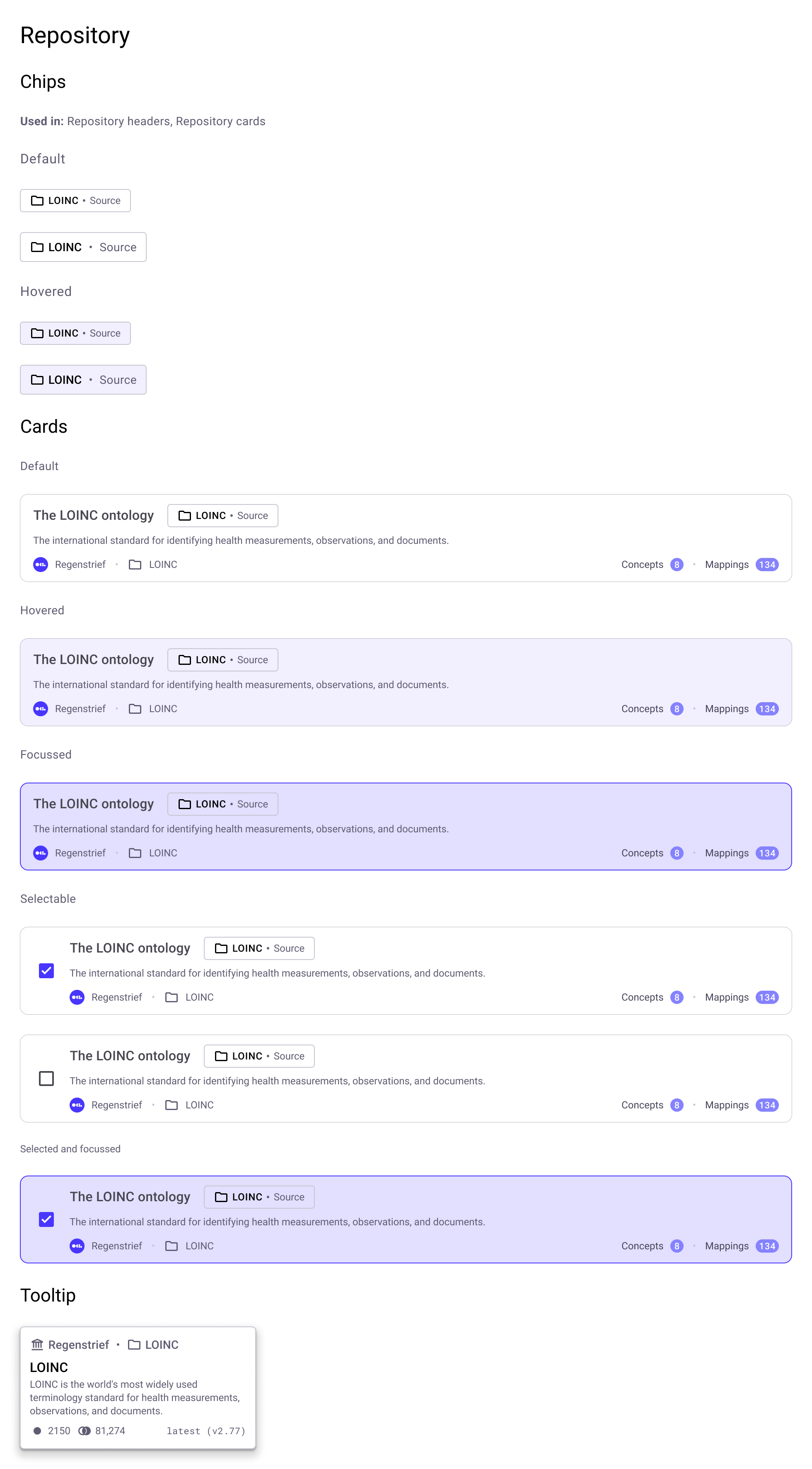

Components

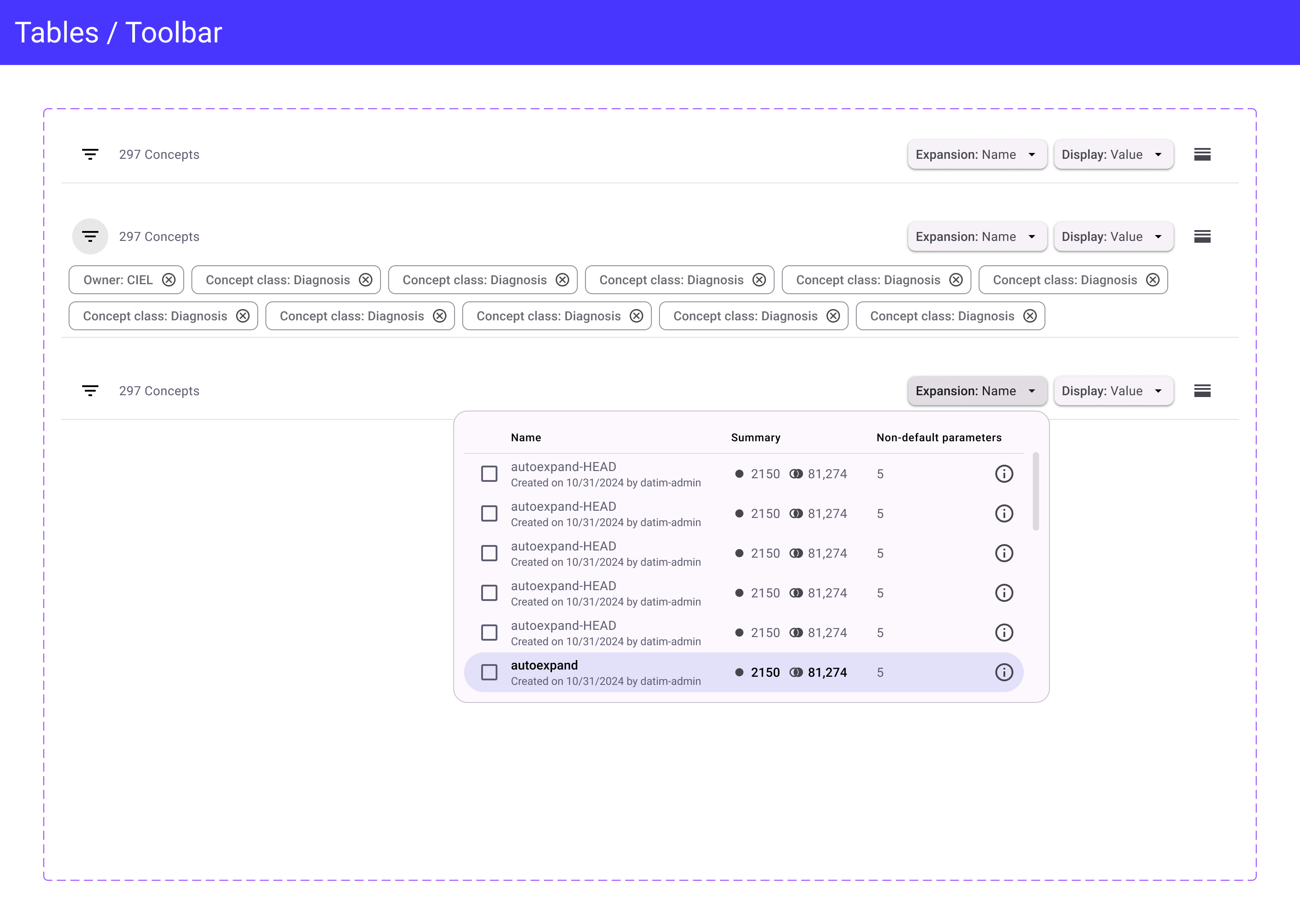

First search-concept table is done; remaining table/toolbar components are pending. Key-value-pair component is a known gap.

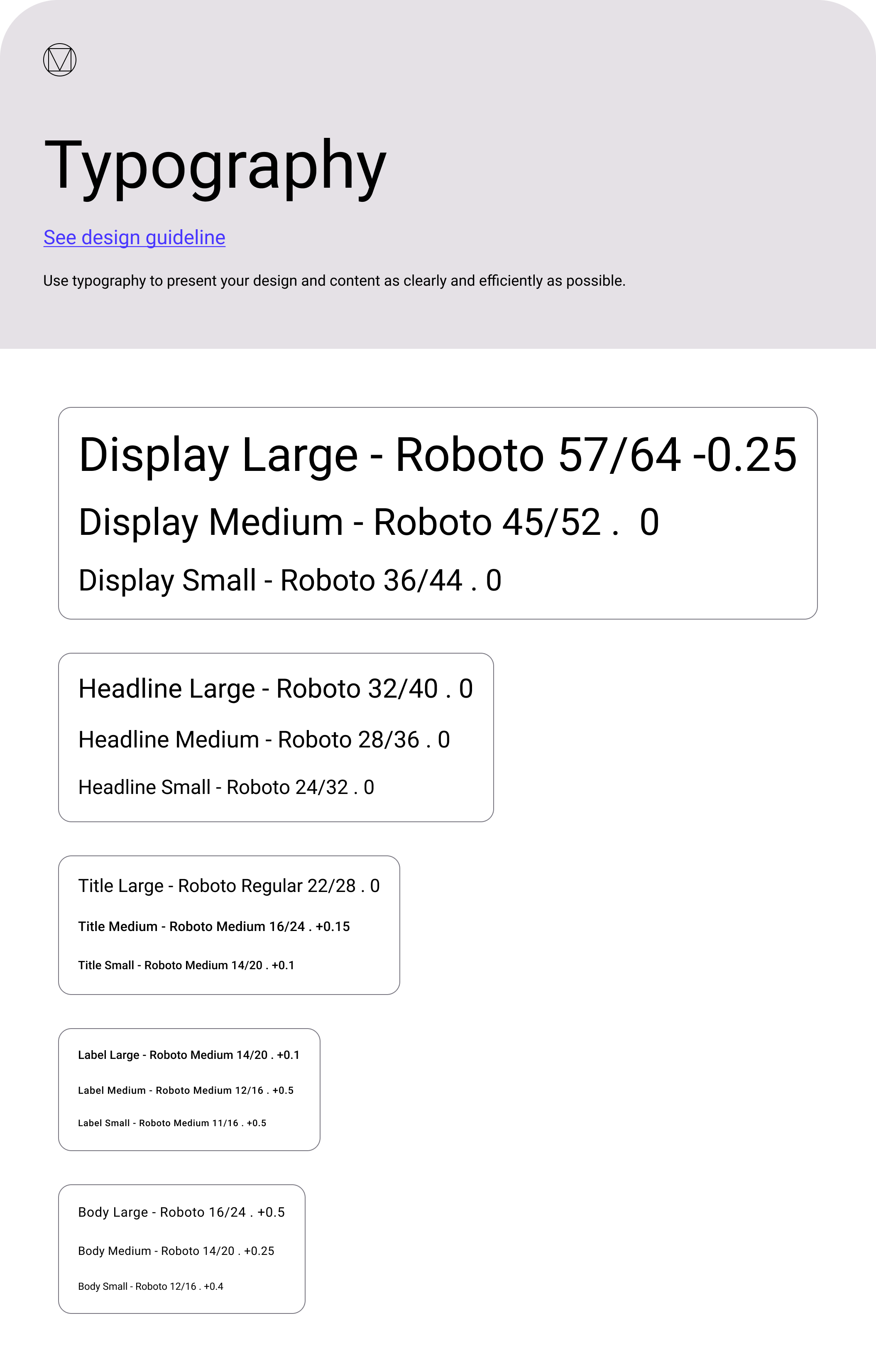

Foundations

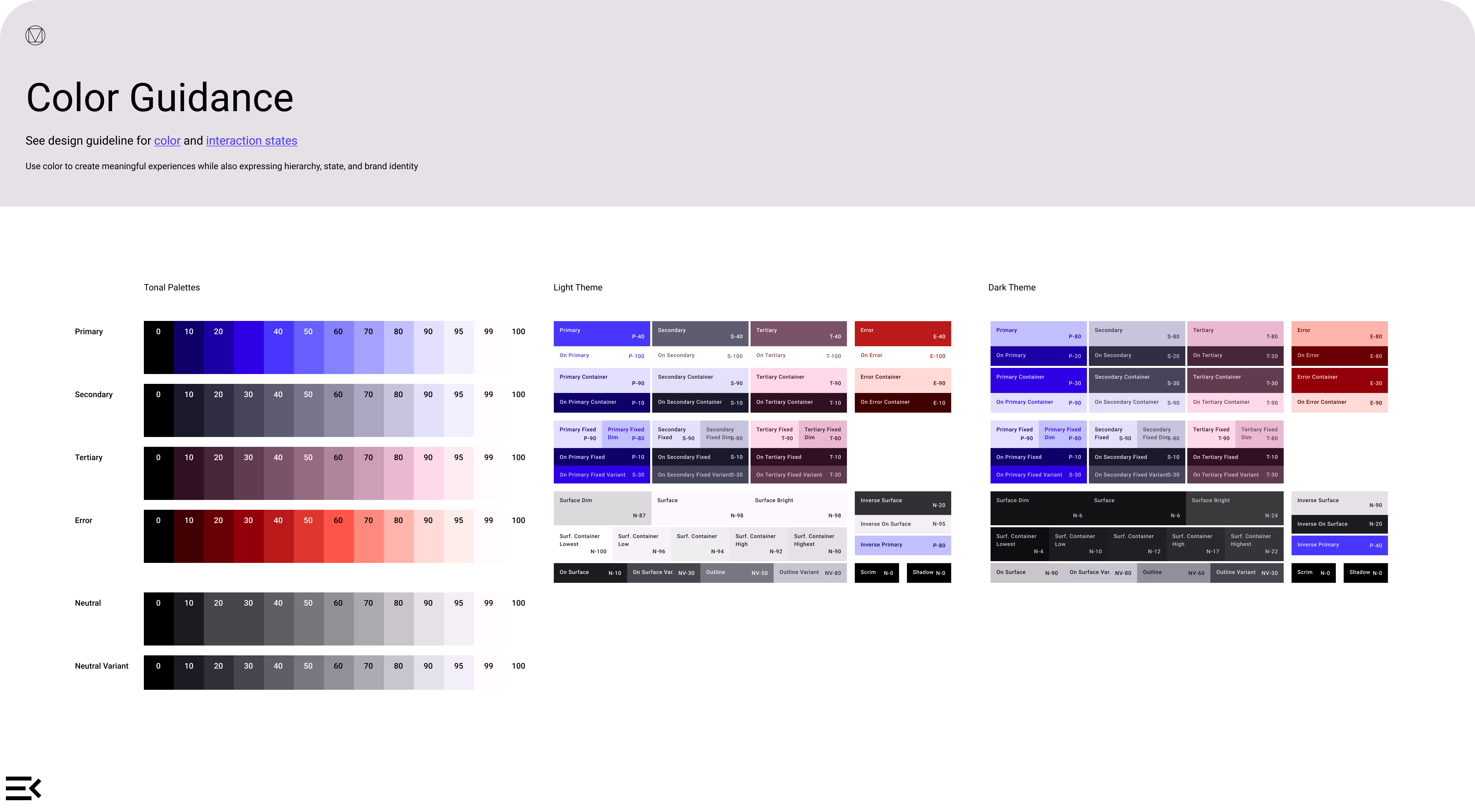

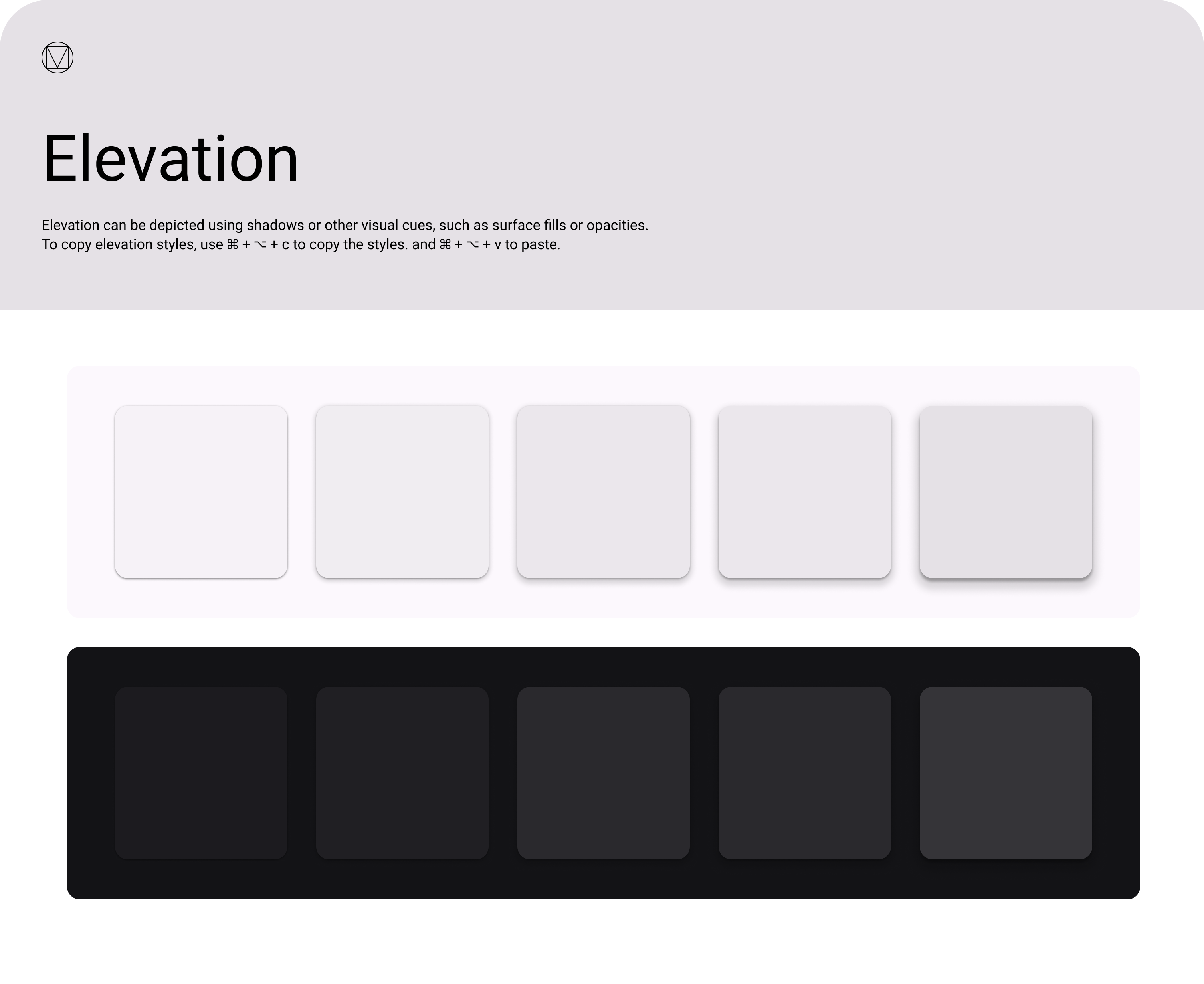

Color tokens are 100% implemented in code (referenced by name, e.g. primary.80). Only the first elevation level is used.

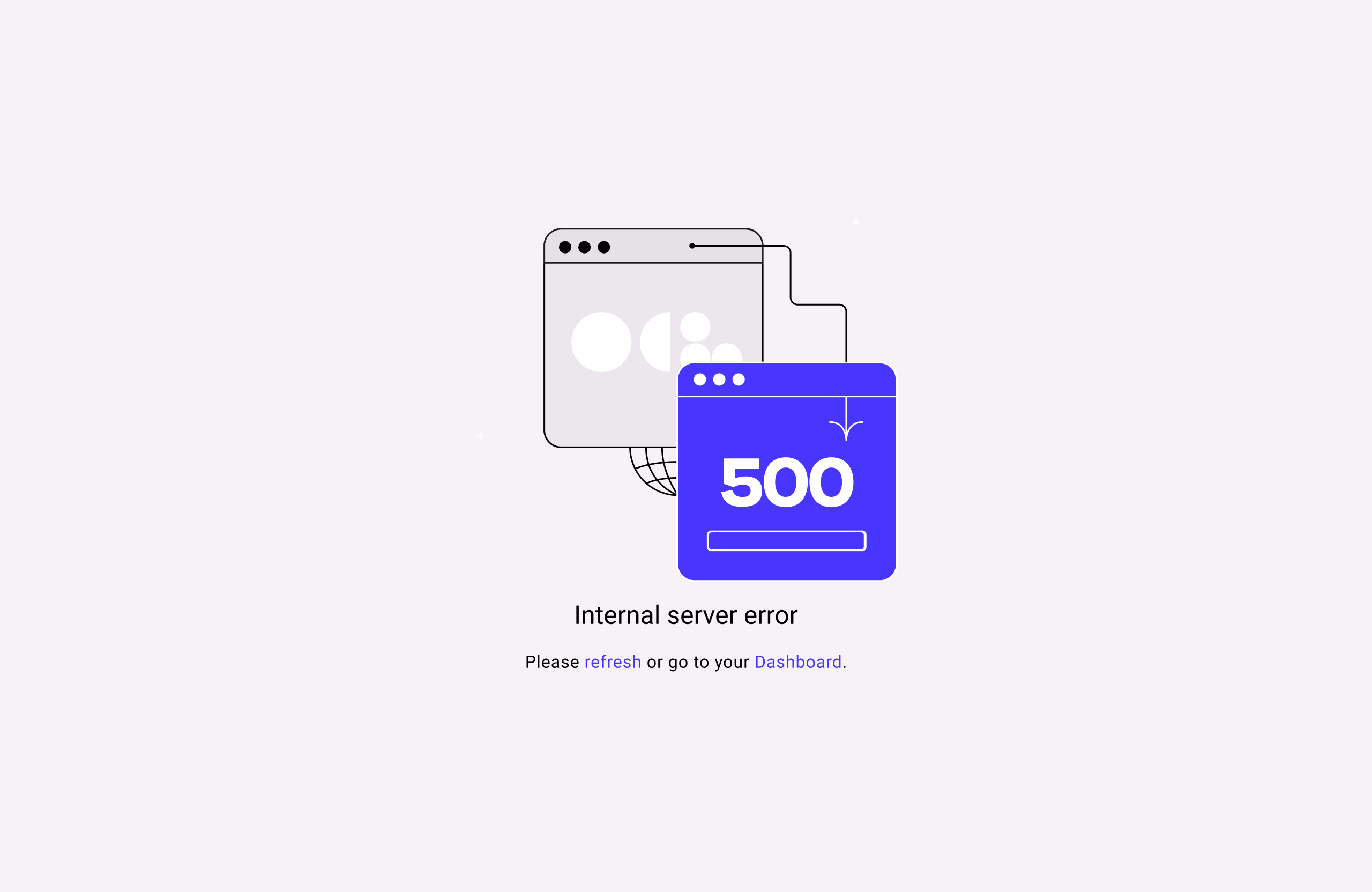

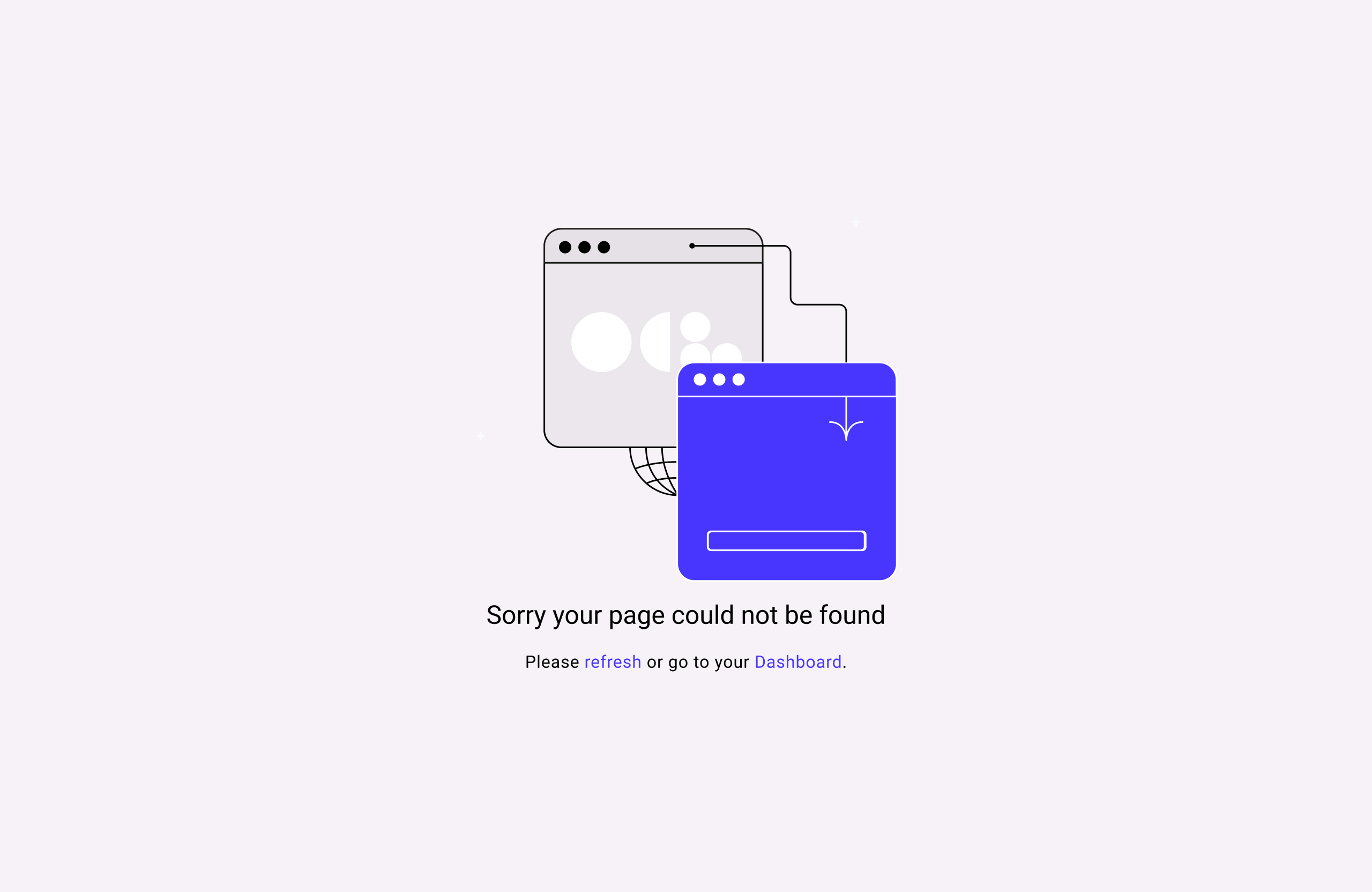

Errors

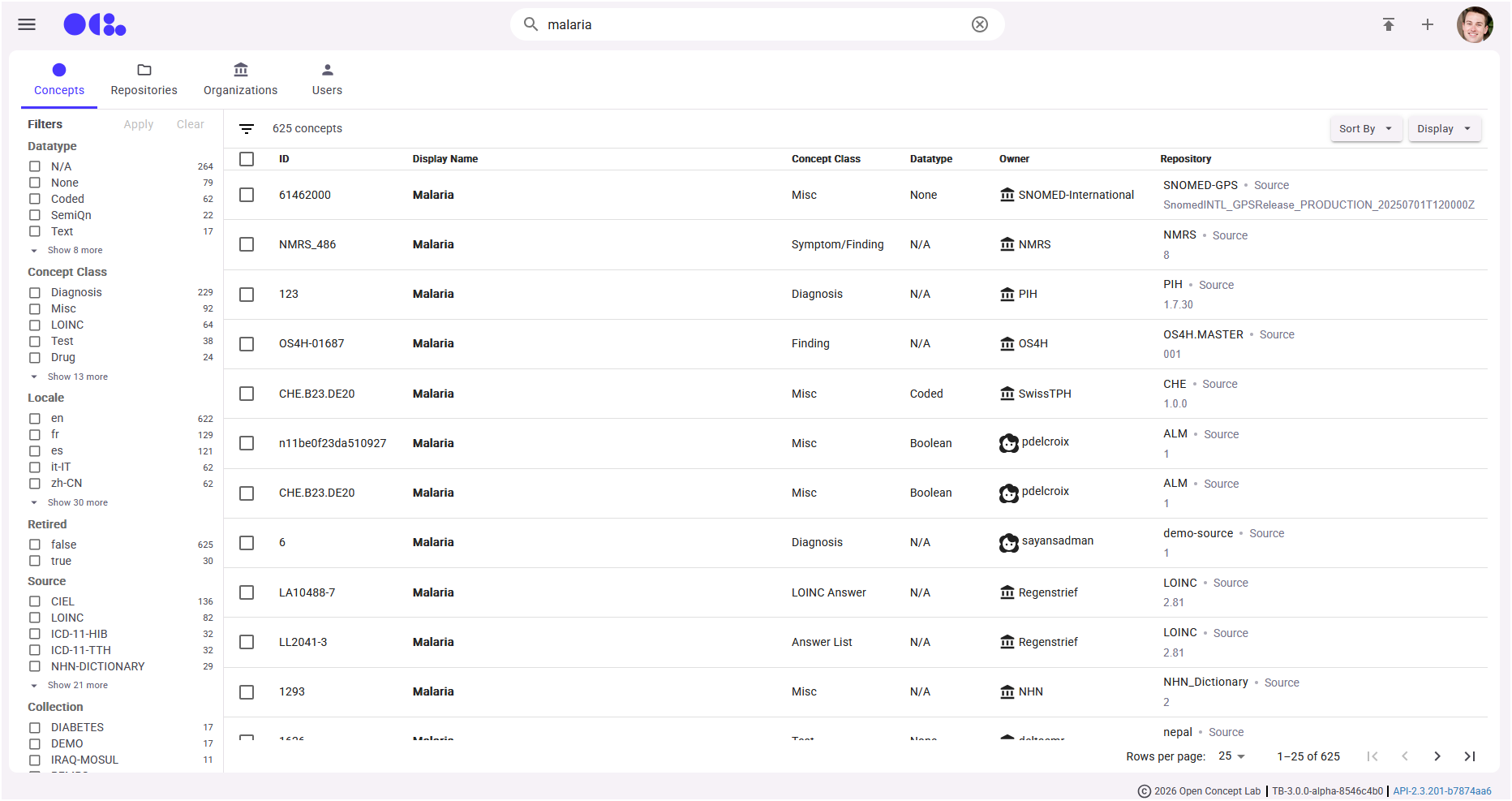

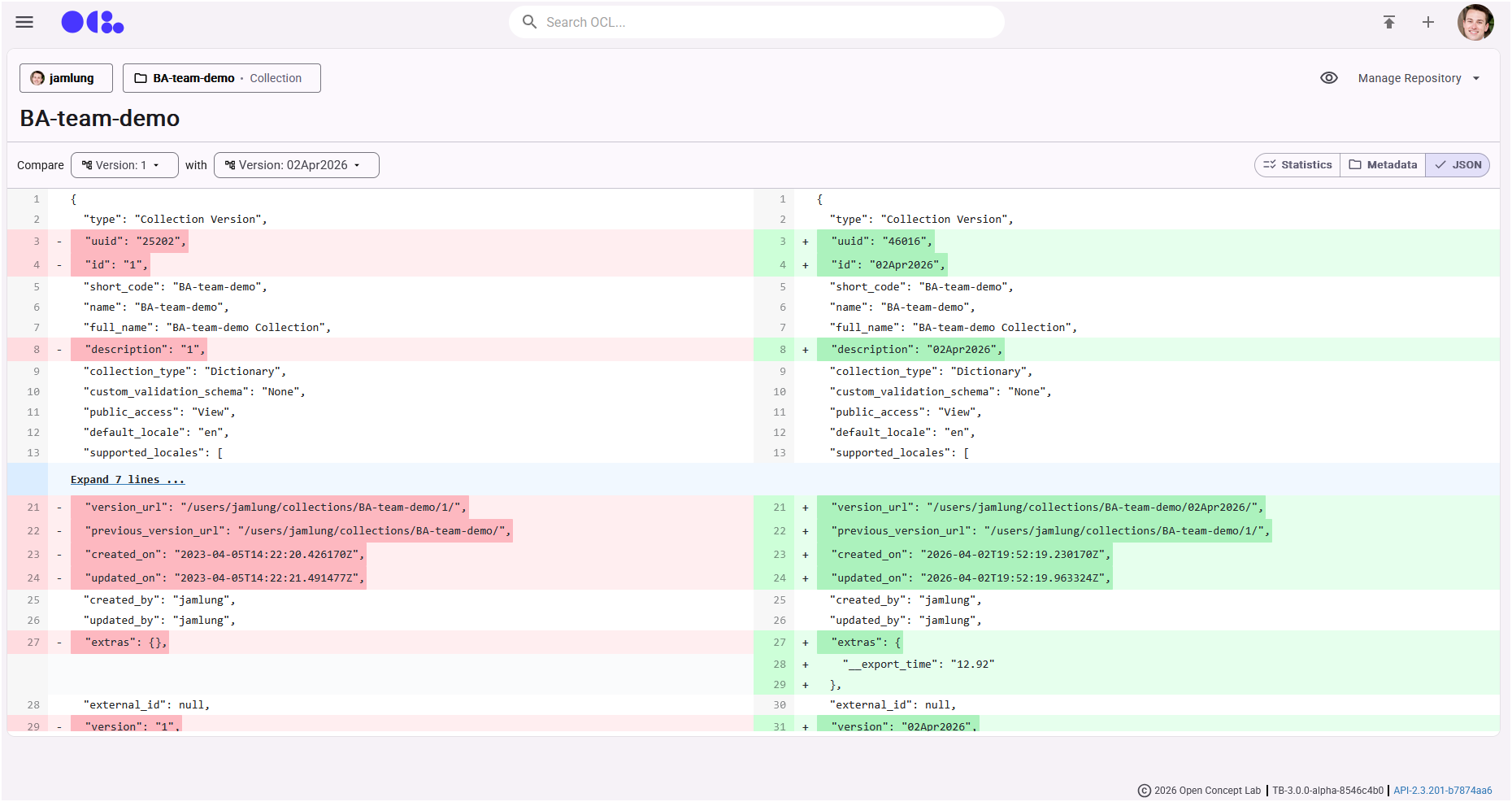

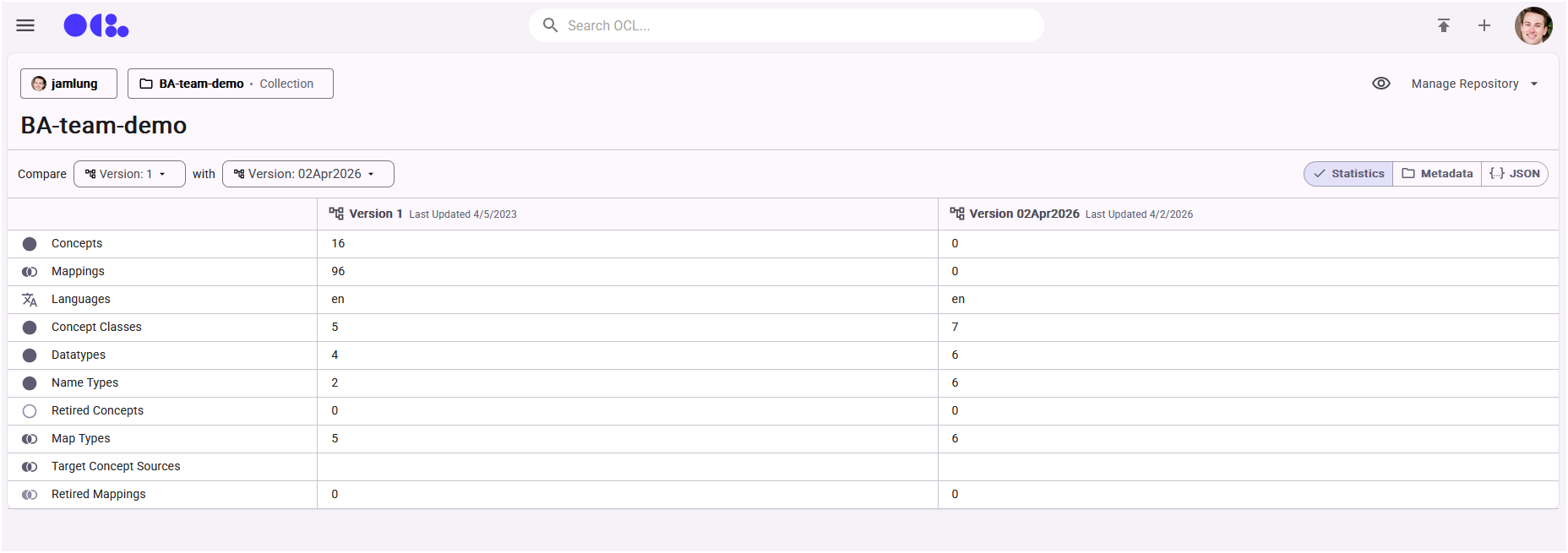

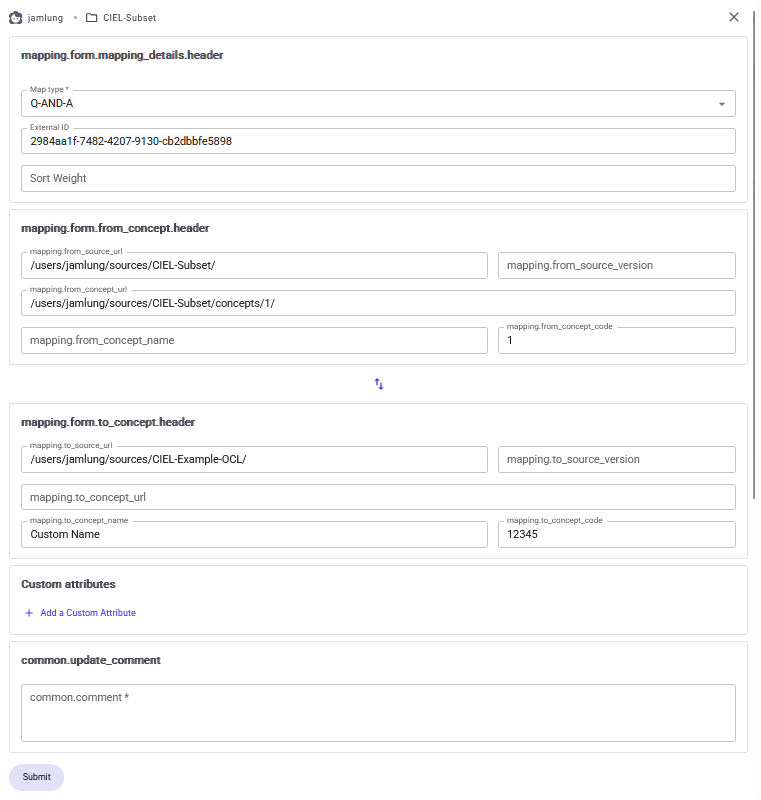

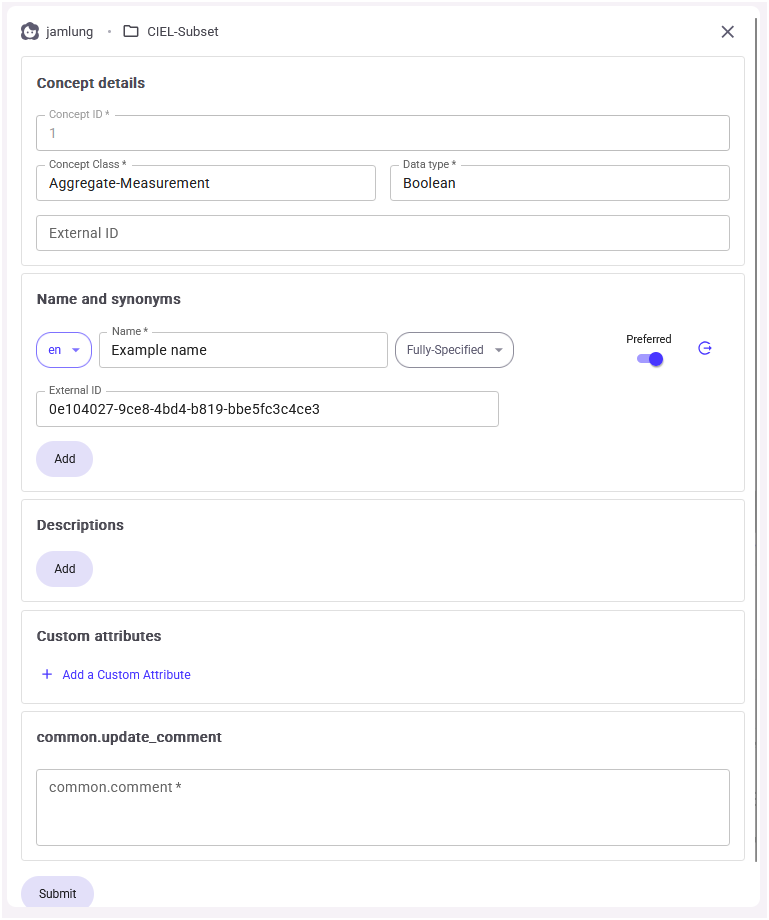

TBv3 Current State
Screenshots of the shipped TBv3 implementation for areas where it diverges from the canonical design. Captured April 2026.
